LIFTING STATION
.
EB-705
1 en
1. SAFETY INSTRUCTIONS
In order to reduce the risk of
electric shock, do not open the
top covers. Do not handle the
interior of the macerator; always
refer
personnel.
In order to reduce the risk of fire
or electric shock, do not expose
this appliance to rain or flooding.
DETAILED SAFETY INSTRUCTIONS.
Please read all the safety and operating
instructions before using the appliance. Keep
them for future reference.
All the user safety indications, instructions and
operations included in this manual must be
observed.
MMAINTENANCE AND INSTRUCTION MANUAL - 3
English
servicing
to
qualified
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for JIMTEN CICLON LS EB-705
Summary of Contents for JIMTEN CICLON LS EB-705
-
Page 1: Table Of Contents
MMAINTENANCE AND INSTRUCTION MANUAL LIFTING STATION EB-705 English 1 en 1. SAFETY INSTRUCTIONS In order to reduce the risk of TABLE OF CONTENTS electric shock, do not open the top covers. Do not handle the SAFETY INSTRUCTIONS ....... . . interior of the macerator;... -
Page 2: Main Components
LIFTING STATION EB-705 DETAILED SAFETY INSTRUCTIONS (continued). This appliance must be installed in such a way that air is allowed to enter and leave the top part. If the appliance is installed inside a cupboard or another piece of furniture, ensure there is enough space for air to circulate around the unit. -
Page 3: Introduction

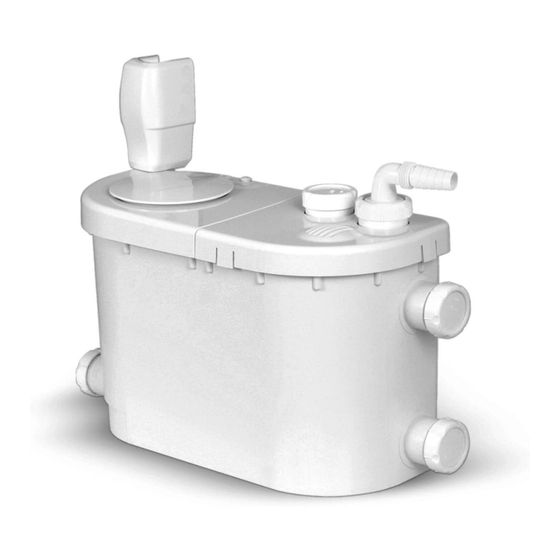

LIFTING STATION EB-705 3. INTRODUCTION. The CICLON LS lifting station allows the pumping of waste water from: washbasins, bidets, showers, bathtubs, sinks, urinals, washing machines and dishwashers, in uncommon locations, at a distance and/or at a different level from a downpipe, as long as there is a downpipe available at a maximum distance of 72 m horizontally or 7 m vertically, or a combination of both, as described in this manual. -
Page 4: System Setup
LIFTING STATION EB-705 5. SYSTEM SETUP - Put the CICLON LS in the desired place and connect the inlets and outlet. (See connection diagram on page 13). Leave a minimum distance of a meter from the downpipe to the lifting station, so that this works for an adequate length of time. -
Page 5: Installation Recommendations
45º bypass. If the joint with the downpipe is below the base of the lifting station, a ventilation valve (Jimten A-69 type) must be connected at the highest point of the installation to stop it emptying. -
Page 6: Power Supply Connection
LIFTING STATION EB-705 sink, washing machine, dishwasher). It is necessary to check that the total flow drained from these fixtures at any given time is never more than the total flow pumped by the lifting station. 5.2. POWER SUPPLY CONNECTION. Connect all the sanitary elements and the drainage network before carrying out the connection of the power supply. -
Page 7: Maintenance Operations
- The guarantee does not cover damage caused to the lifting station by freezing. 7. MAINTENANCE OPERATIONS. The Jimten lifting station has been designed to be highly reliable and to provide years of operation. Below are listed the most common maintenance operations and there is a quick troubleshooting guide for problems that the user can easily fix. - Page 8 - Provide the installation with secondary connected. iary connection. ventilation, or install an aeration valve - Malfunction of the microswitch. (Jimten A-69 type). / Reconsider the installation. - Contact Technical Assistance - After draining, the motor starts up - Water returning to the lifting station.
-
Page 9: Motor Disassembly And Extraction
LIFTING STATION EB-705 7.3. MOTOR DISASSEMBLY AND EXTRACTION. Before opening the lifting station it is very important to check that the power cable has been disconnected from its plug. - Remove the protective cap from the caset cover screw, remove the screw . -
Page 10: Technical Specifications
LIFTING STATION EB-705 7.4. REPLACEMENT / CLEANING OF THE DISCHARGE NON-RETURN VALVE. Before beginning the replacement / cleaning, TO RETIRE EMBELLECEDOR carry out a number of discharge cycles and (if one has been installed) close the vertical drainage pipe’s throttle valve and disconnect the unit from REMOVE 1 ”... -
Page 11: Layout And Secondary Ventilation System Diagram
LIFTING STATION EB-705 9. LAYOUT AND SECONDARY VENTILATION SYSTEM DIAGRAM. CICLON LS, WC Y WASHBASIN. A – CONNECTION TO EXISTING VENTILATION PIPE. B – Ø 32 DISCHARGE PIPE WITH 1% GRADIENT. C – DRAINAGE INLET PIPE 1% GRADIENT. Ø 32 or 40 MM D–... -
Page 12: Exploded Views
LIFTING STATION EB-705 10. EXPLODED VIEW OF THE MACERATOR AND CASET ASSEMBLY. MACERATOR ASSEMBLY LIST OF MACERATOR PIECES. TANK BODY. (14A) CASET BODY CROSSPIECE. (14B) CASET GASKET 1 ” NUT (15) 1 ” NUT 1 ” OBTURATOR CAP (16) DISCHARGE TUBE 1 ”... -
Page 13: Caset Assembly
LIFTING STATION EB-705 IST OF CASET PIECES DEPOSIT BODY CASET GASKET CAPACITOR THREE WIRE HOSE BUSHING JOINT MOTOR MOTOR INSULATION DISK PRESSURE SWITCH PRESSURE SWITCH PIPE (10) 22 X 3 O-RING (11) MOTOR SCREW CAPS (12) MOTOR FIXING SCREWS (13) CERAMIC ENCLOSURE (14) ROTOR... -
Page 14: Ec Declaration Of Conformity
2007 / Alicante, le 11 avril 2007. Alejandro Perales Terol Resposable de Calidad / Gerente de Controlo de Qualidade / Quality Control Manager / Qualitätsmanager / Responsable qualité. El fabricante Jimten S.A. O fabricante Ctra. de Ocaña 125 The manufacturer 03114, Alicante España...
