Manufacturer is not responsible for negligent use of vehicle with mud flaps installed, including
over-tightening of screws and bolts causing damage to vehicle or mud flaps.
TOOLS REQUIRED-
FLAPS
(1)Flap Assy
Rear, DS
PARTS BAG # 767263
a) (4) Washer, Flat
0.281" x 1", 18g, SS, oxidized
Part #018069
d) (6) Hex Bolt, SS
M4.2 x 1",w/Logo
Part # 016041
g) (2) Rubber Washer
1/4"ID x 1"OD x 1/4"
Part #080677

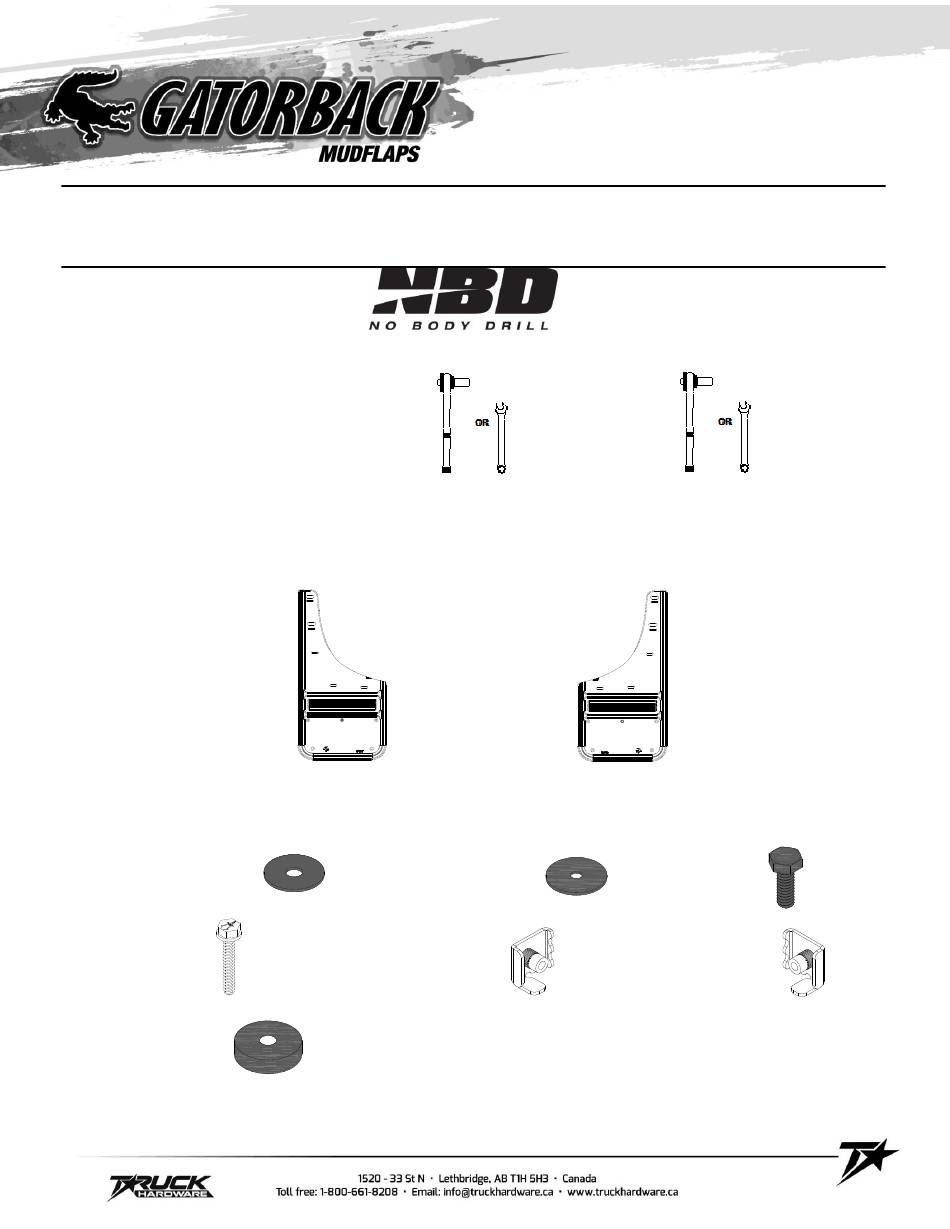

Silverado Front Install Sheet
IMPORTANT:
5/16" Open Wrench or
Socket Wrench
(1)Flap Assy
Rear, PS
b) (6) Washer, Flat
0.203" x 1", 18g, SS, oxidized
Part #018070
e) (2) Mount Clip, DS
w/Clinch Nut
Part # 767068
2019 Chev Silverado
Mud Flap Set, Front
Mounting Diagram & Instructions
3/8" Open Wrench or
Socket Wrench
c) (4) Capscrew, SS
¼"-20UNC x ¾"
Part #014070
f) (2) Mount Clip, PS
w/Clinch Nut
Part #767069
GCR28F
Kit#
