Summary of Contents for IKIS SL AIR STRIKE 2020 UV-C

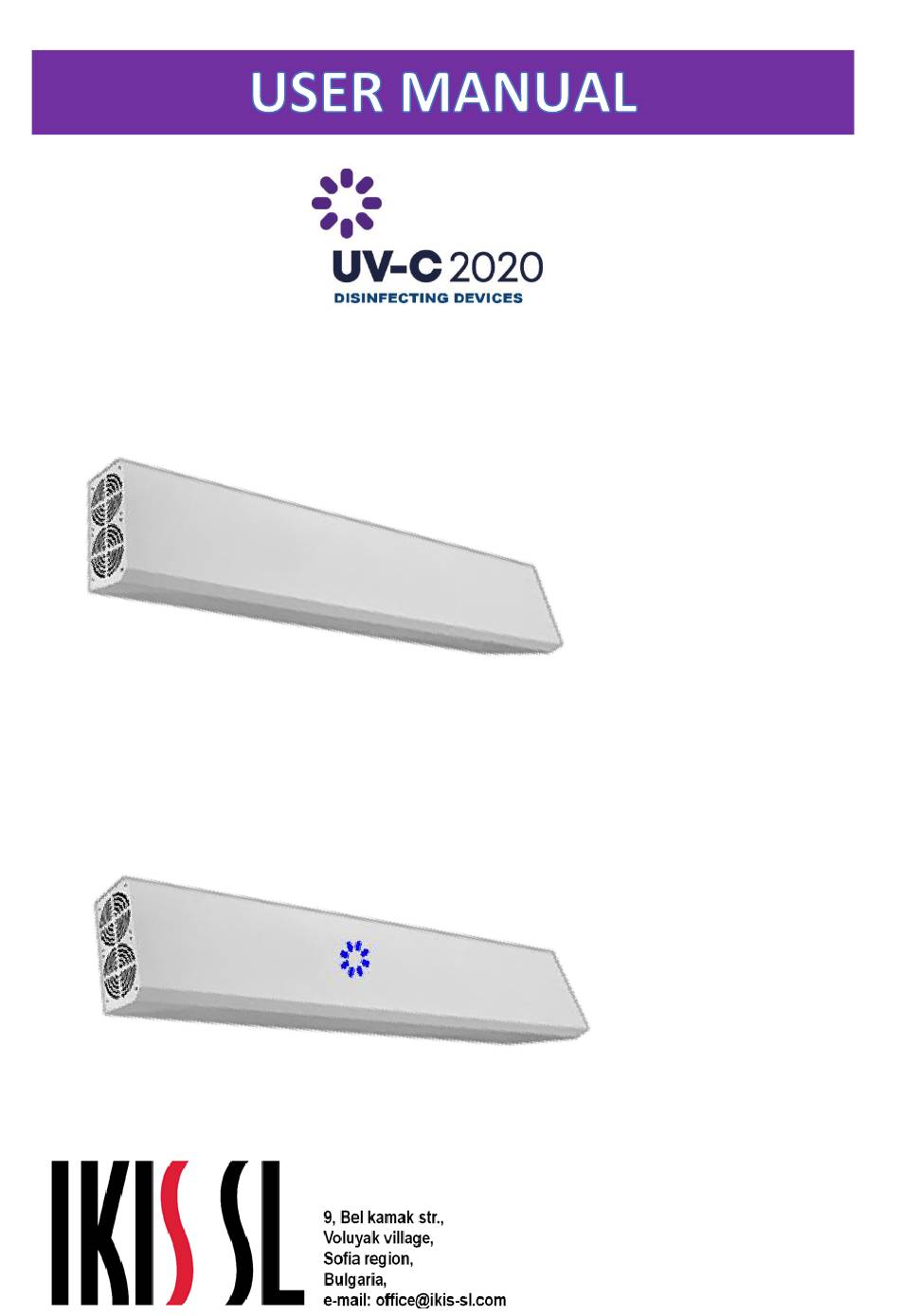

- Page 1 AIR STRIKE 2020 UV-C AIR STRIKE W 2020 UV-C...
-
Page 2: Table Of Contents
INSTRUCTIONS FOR INSTALLATION, EXPLOITATION, CONTROL, MAINTENANCE, SAFETY AND WARRANTY CONDITIONS FOR UV-C DISINFECTION DEVICES AIR STRIKE 2020 ------------------------------- CONTENTS --------------------------------- WARNING SYMBOLS....................3 GENERAL INSTRUCTIONS.....................4 UNPACKING AND CONTAINS..................5 III. PRINCIPLE OF THE UV-C DISINFECTION...............6 TECHNICAL PARAMETERS....................7 OPERATION INSTRUCTIONS ………………………………………………........9 INSTRUCTIONS FOR SAFETY AND MAINTENANCE.............14 VII. -
Page 3: Warning Symbols
I. WARNING SYMBOLS ATTENTION! DANGER WARNING! ATTENTION! UV-C RADIATION ATTENTION! HIGH VOLTAGE ATTENTION! TOXIC DO NOT DISPOSE TOGETHER WITH HOUSEHOLD WASTE DO NOT DISPOSE IN THE SEWERAGE IMPORTANT! PAY ATTENTION! PERSONAL PROTECTIVE AND PROTECTIVE EQUIPMENT USE A PROTECTIVE GLOVES USE A SAFETY GLASSES USE A FACE MASK USE A PROTECTIVE FACE SHIELD USE A PROTECTIVE LAB COAT... -
Page 4: General Instructions
II. GENERAL INSTRUCTIONS Read carefully and follow all exploitation and safety instructions. The device is intended for indoor use only. The device must not be exposed to moisture, condensation, water vapor or vibration. The device must only be used and stored in dry rooms with a temperature range of 10 °... -
Page 5: Unpacking And Contains
III. UNPACKING • Remove the disinfection device from the box. • Before disposing of the packaging in the defined areas, carefully check that all parts and accessories are available. • Before using the disinfection device, make sure that there are no transport defects on it - damaged packaging, broken light sources, impacted metal housing, torn or broken cable. -
Page 6: Principle Of The Uv-C Disinfection
UV-C radiation outside the device. The model AIR STRIKE 2020 UV-C is equipped with PHILIPS TUV 2x36W T8 UV-C 254nm OZONE FREE. It is intended for use in hospital rooms, surgery rooms, clinics, laboratories, pharmaceutical and food... -
Page 7: Technical Parameters
V. TECHNICAL PARAMETERS Model: AIR STRIKE 2020 Power supply voltage 220-240V Frequency 50/60Hz Weight 14 kg Nominal power Protection class IP20 120м³/h Maximal disinfected volume per hour 53 dB Noise level Operating ambient temperature: от 10° до 40° Length: 148.1 cm Width: 21.2 cm Dimensions:... - Page 8 DIMENSIONS IN MM...
-
Page 9: Operation Instructions
VI. INSTALLATION INSTRUCTIONS For effective disinfection of the air AIR STRIKE 2020 COULD NOT be installed in the rooms with cubic volume no greater of 160м³. DO NOT install near the floor or corners of the room. There is no need to control the access of people and animals to the room while the device is operating. - Page 10 STEP 1 Remove the device from the box and place it on a stable base. Unscrew the screws on both sides of the front cover (8 pcs) with a star screwdriver. STEP 2 After unscrewing the screws, lift and pull the cover to open the device.
- Page 11 STEP 5 Use a wrench size 7, unscrew the four nuts on the base with the sockets and driver for the UV-C light sources so that you can separate it from the base of the device. STEP 6 Lift the base with the sockets and the driver for the UV-C light sources and remove it from the base for mounting the device.
- Page 12 STEP 9 Fix the back of the device to the wall or ceiling using suitable fasteners. A second person must hold the metal base with the sockets STEP 10 Make an electrical connection of the device. If you use an available power outlet, make sure the power is off.
- Page 13 STEP 12 CAREFULLY install the UV-C lamps by inserting the pins at both ends into the sockets, then turn to lock the tubes in the sockets. You should hear a click. STEP 13 Replace the metal shields at both ends of the device and tighten the screws with a cross bladed (PZ) screwdriver.
-
Page 14: Instructions For Safety And Maintenance
VII. INSTRUCTIONS FOR SAFETY AND MAINTENANCE The light sources of PHILIPS UV-C T8 36W, with which AIR STRIKE 2020 is equipped, according to the manufacturer, have an average effective life of 6300 hours. The lamps can last longer than their estimated effective service life of up to 9,000 hours, but reducing ultraviolet radiation will make their use Contact the supplier:... - Page 15 If the remote control does not turn on the device, replace the battery first! If, after replacement, the remote control does not work again, contact the supplier. ATTENTION! UV-C light sources contain a small amount of mercury - avoid breakage! If you break a lamp, ventilate the room where the breakage occurred.
-
Page 16: Warranty Conditions
VIII. WARRANTY CONDITIONS 1. Warranty periods. The warranty periods start from the date of issuance of the warranty card and are valid for the period marked for each product in the WARRANTY field. The warranty card is kept by the Buyer until the expiration of the warranty period. Each complaint must be submitted with an original warranty card. - Page 17 3. Operation, transport, storage and installation conditions: 3.1. For transporting of the devices, follow the rules prescribed on the packaging by the manufacturer. 3.2. After transportation, switch on the device only after at least 1 hour for an acclimatization in the room. 3.3.
- Page 18 4. Warranty void. The customer loses his right to warranty in the following cases: 4.1. In the absence, deletion or damage of an identification / serial number or warranty, warning or information sticker. 4.2. In case of damage caused by improper transportation, relocation, storage and installation.
