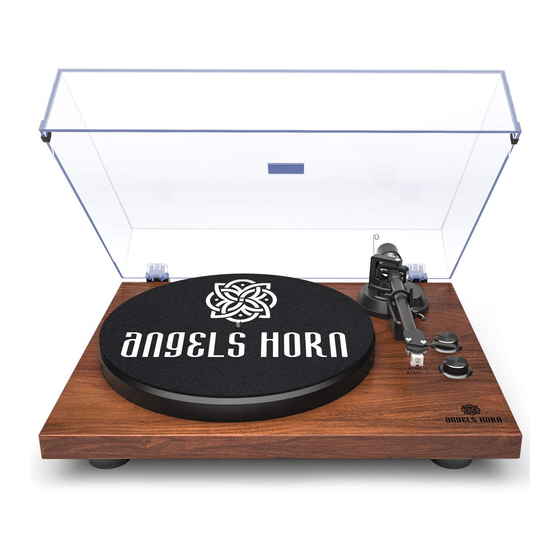

Turntable Hi-Fi System
Model: HP-H005
Introduction
Thank you for purchasing this AngelsHorn Turntable Hi-fi System.
Read through this user manual before using the product to ensure its correct use. This
the instruction manual contains important information about safety, usage, and
disposal. Use the product as described and keep this manual for future reference.
This product can be used only in countries where the product is sold. Make sure that
the operating voltage and the plug of AC the adapter of the product are correct for the
country you live in.
Package contents
Make sure that you have all the included items listed below before using this product.
If some items are missing or damaged, please contact our official customer service
email: info@angelshorn.com
Turntable body
Turntable mat
- Adaptor with the US-plug-end
- Cartridge Alignment Protractor
- Counterweight
45 RPM adapter
- USB-PC Cable
After purchase, we suggest that you save all packaging materials for possible future
storage, moving, or shipping.
This turntable is supplied with a factory-fitted and adjusted cartridge. The following
instructions for adjusting the cartridge are provided in case the cartridge is replaced
by a different model at a later date.
Platter
- Instruction Manual
- Turntable Belt
- Anti-skating Weight
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Angels Horn HP-H005
Summary of Contents for Angels Horn HP-H005
- Page 1 AC the adapter of the product are correct for the Turntable Hi-Fi System country you live in. Model: HP-H005 Package contents Make sure that you have all the included items listed below before using this product.
-
Page 2: Precautions Before Use
Precautions Before Use Precautions Before Use Keep these instructions in mind Keep these instructions in mind 1. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near 14. * Devices with class 1 construction should be connected to a mains socket outlet swimming pools. -
Page 3: Product Description
Precautions Before Use Product Description Keep these instructions in mind Part names and functions 29. Never place this apparatus on other electrical equipment. 30. Do not use or store this product in a place where it is subject to direct sunlight, heat, excessive dust or vibration. -
Page 4: Technical Specifications
Product Description Installation Technical Specifications - Unpack all parts and remove protective material. - Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made. Nominal Speeds 33 1/3 & 45RPM - Those instructions are related only to products using power cable or AC power Speed Variance ±1%... -
Page 5: Anti-Skating Force Adjustment
Installation Installation 3-Cartridge tracking force adjustment 3-Cartridge tracking force adjustment The counterweight supplied is suitable for cartridges weighing between 3.0-6.0g Rotate the counterweight counter clockwise (seen from the front) to adjust the down force according to the cartridge manufacturer’s recommendations.One mark on the scale represents 0.05g of down force. -
Page 6: Operation
Installation Installation 5-Connection to the Amplifier 7-Main Power Connection The power adaptor is in the foam packing material. Unpack the power adaptor and This turntable uses a moving magnetic cartridge. Set the PHONO & Line Out Switch plug the small end into the DC power jack located at the back side of the turntable. on PHONO mode. -
Page 7: Bluetooth Operation
Operation Operation Bluetooth Operation Instruction for PC Encoding 1. Software instruction This unit has a Bluetooth transmitter to send audio to a Bluetooth speaker wireless- 1-1 Connect the USB cable with your turntable and your computer. No extra driver 1. Power on your Bluetooth speaker and ensure it is in pairing mode. is required. - Page 8 Operation Operation Instruction for PC Encoding Instruction for PC Encoding 2. Recording 3.Export the Music Files for WAV, MP3, Format. 2-4 Adjust the output and input volume - Once you have finished recording, you should save your music to the computer. - Click File menu and move down to Export as WAV format, MP3 format or Ogg Output volume Input Volume...
-
Page 9: Maintenance And Cleaning
Operation Maintenance and Cleaning Instruction for PC Encoding Your turntable requires little of no regular maintenance. Remove dust with a slightly damp antistatic cloth. Never use a dry cloth, this will create static electricity and attract more dust! 3) After opened, it will come to the following menu, click “YES” to go to “Llame_enc.dll”, and find the file’s location. -
Page 10: Troubleshooting
Cartridge Replacement Troubleshooting Potential Incorrect Use and Fault Conditions： 6. Adjust the cartridge’s position to make sure it is precisely aligned on the headshell so that the stylus will be tracking the grooves in parallel perfectly. These turntables are manufactured to the highest standards and undergo strict quality controls before leaving the factory. To achieve this, place the included paper cartridge alignment protractor over theturnta- Faults that may possibly occur are not necessarily due to material or production faults but can sometimes be caused by ble spindle, carefully lift the tone arm and place the tip of the stylus on the points marked... - Page 11 Angels Horn Corporation 44 W JEFRYN BLVD, SUITE V, DEER PARK, NY,11729 U.S.A Email: info@angelshorn.com Website:www.angelshorn.com - 20 - Ver.1 2019.11.04 162501372-02-02 ©2019 Angels Horn Corporation Ver.2 2019.11.04...
