TMB-995

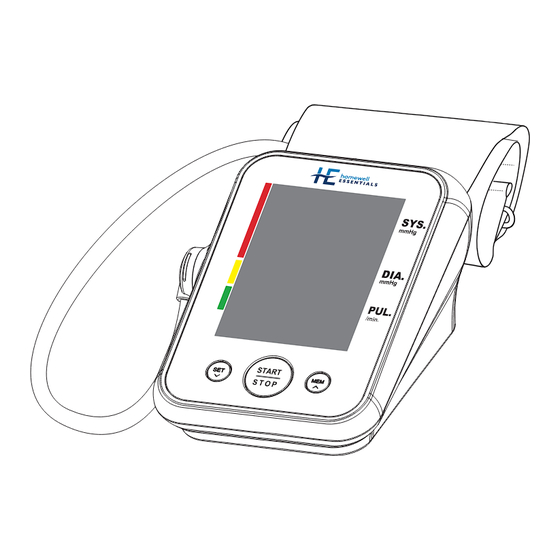

Blood Pressure Monitor HWEBPM
Thank you very much for selecting Homewell Essentials Blood Pressure
Monitor HWEBPM.
To use the monitor correctly and safely, please read the manual thoroughly.
Please keep well this manual in order to reference in future.
User Manual
homewell
E S S E N T I A L S
Arm Type

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HWEBPM and is the answer not in the manual?

Questions and answers

Summary of Contents for Homewell Essentials HWEBPM

  • Page 1 User Manual Blood Pressure Monitor HWEBPM Arm Type Thank you very much for selecting Homewell Essentials Blood Pressure Monitor HWEBPM. To use the monitor correctly and safely, please read the manual thoroughly. Please keep well this manual in order to reference in future.
  • Page 2 QUICK REFERENCE This chart reflects blood pressure categories defined by American Heart Association. Backlight Blood Pressure Category Systolic Diastolic on BPM mmHg (upper#) mmHg (lower#) Hypertensive Crisis Higher than 180 and/or Higher than 120 (Consult your doctor immediately) High Blood Pressure 140 or higher 90 or higher (Hypertension) Stage 2...

  • Page 3: Table Of Contents

    CATALOGUE Table of Contents INTRODUCTION........................2 General Description Indications for Use Contraindications Measurement Principle Safety Information LCD Display Signal Monitor Components List BEFORE YOU START......................9 The Choice of Power Supply Installing and Replacing the Batteries Setting Date, Time and Measurement Unit Select the User MEASUREMENT.........................13 Tie the Cuff...

  • Page 4: Introduction

    The design provides you with two years of reliable service. Readings taken by the HWEBPM are equivalent to those obtained by a trained observer using the cuff and stethoscope auscultation method. This manual contains important safety and care information, and provides step by step instructions for using the product.

  • Page 5: Measurement Principle

    INTRODUCTION Measurement Principle This product uses the Oscillometric Measuring Method to detect blood pressure.Before every measurement, the unit establishes a “zero point” equivalent to the atmospheric pressure. Then it starts inflating the cuff. Meanwhile, the unit detects pressure oscillation generated by beat-to-beat pulsatile, which is used to deter- mine the systolic pressure and diastolic pressure as well as pulse rate.
  • Page 6 INTRODUCTION CAUTION * This device is intended for adult use in homes only. * The device is not suitable for use on neonatal patients, pregnant women, patients with implanted, electronical devices, patients with pre-eclampsia, premature ventricular beats, atrial fibrillation, peripheral, arterial disease and patients undergoing intravascular therapy or arterio-venous shunt or people who received a mastectomy.
  • Page 7 INTRODUCTION CAUTION * The ACCOMPANYING DOCUMENT shall disclose that the SPHYGMOMANOMETER was clinically investigated according to the requirements of ISO 81060-2:2013. * To verify the calibration of the AUTOMATED SPHYGMOMANOMETER, please contact the manufacturer. * This device is contraindicated for any female who may be suspected of, or is pregnant. Besides providing inaccurate readings, the effects of this device on the fetus are unknown.
  • Page 8 INTRODUCTION CAUTION * The service life of the cuff may vary by the frequency of washing, skin condition, and storage state. The typical service life is 10000 times. * It is recommended that the performance should be checked every 2 years and after maintenance and repair, by retesting at least the requirements in limits of the error of the cuff pressure indication and air leakage (testing at least at 50mmHg and 200mmHg).

  • Page 9: Lcd Display Signal

    INTRODUCTION LCD Display Signal PUL. /min. SYMBOL DESCRIPTION EXPLANATION Systolic blood pressure High pressure result Diastolic blood pressure Low pressure result PUL. Pulse Pulse/minute /min. Deflating CUFF air is exhausting of deflating Current Time Time(year:month:day:hour:minute) If “MEM” shows, the displayed measurement Memory values is from the memory.

  • Page 10: Monitor Components

    MEM/UP BUTTON Component list of pressure measuring system: 1 Cuff 2 Air pipe 3 PCBA 4 Pump 5 Valve List 2. Cuff ( 22~42cm)/ (9-17 inch) 1. Blood Pressure Monitor (Type BF applied part) (HWEBPM) 3. User manual 4. 4*AA batteries...

  • Page 11: Before You Start

    BEFORE YOU START The Choice of Power Supply 1. Battery powered mode: 6VDC 4*AA batteries 2. AC adaptor powered mode: 1A (Not included) (Please use the AC adaptor which authorized by the manufacturer!) Right picture is the hole in for power adaptor.

  • Page 12: Setting Date, Time And Measurement Unit

    BEFORE YOU START Setting Date, Time and Measurement Unit It is important to set the clock before using your blood pressure monitor, so that a time stamp can be assigned to each record that is stored in the memory. (year: 2019—2059 time:12 H) 1.When the monitor is off, hold pressing “...
  • Page 13 BEFORE YOU START 5.Repeat step 2 and 3 to set the [HOUR] and [MINUTE]. PUL. PUL. /min. /min. 6.Repeat step 2 and 3 to set the [UNIT] . PUL. PUL. /min. /min. 7.After the [UNIT] is set, the LCD will display “ donE ” then turn off.

  • Page 14: Select The User

    BEFORE YOU START Select the User 1.When the monitor is off , press the “ SET ” button shortly to enter user setting mode. PUL. /min. 2.Then press “ SET ” button again, select the user ID between user 1 and user 2 .

  • Page 15: Measurement

    MEASUREMENT Tie the Cuff Remove all jewelry, such as watches and bracelets from your left arm. Note: If your doctor has diagnosed you with poor circulation in your left arm, use your right arm. Roll or push up your sleeve to expose the skin.

  • Page 16: Start The Measurement

    MEASUREMENT Start the Measurement 1.When the monitor is off, press the “START/STOP” button to turn on the START monitor, and it will finish the whole STOP measurement,save and transmit the measurement data for the desired user. (Take User 1 for example.) Adjust the zero LCD display PUL.

  • Page 17: Data Management

    DATA MANAGEMENT Recall the Records 1.When the monitor is off, please press “MEM” button to show the average value of the latest three records.If the records are less than 3 groups, it will display the latest record instead. Displays different colors at different levels when the monitor is under the memory recall mode.

  • Page 18: Delete The Records

    DATA MANAGEMENT Delete the Records If you did not get the correct measurement, you can delete all results of the selected user by following steps below . 1.Hold pressing “MEM” button for 3 seconds when the monitor is in the memory recall mode.
  • Page 19 DATA MANAGEMENT 3.Hold pressing “SET” button for 3 seconds when the monitor is in the memory recall mode (excluding the LCD displays AVG). The LCD will blink “Use ID + dEL ONE”. PUL. /min. 4.Press “MEM” button to confirm deleting selected record, the LCD will display “Use ID + dEL donE”...

  • Page 20: Information For User

    INFORMATION FOR USER Tips for Measurement Measurements may be inaccurate if taken in the following circumstances. Do not take immediate measurement Wait at least 1 hour after after tea, coffee or smoking dinner or drinking Wait at least 20 minutes Do not take measurement when after taking a bath talking or moving your fingers...
  • Page 21 INFORMATION FOR USER Maintenance In order to get the best performance, please follow the instructions below. Put in a dry place and Avoid touching water, avoid the sunshine clean it with a dry cloth in case. Avoid intense shaking Avoid dusty and unstable and collisions temperature environment Use wet cloths to remove dirt...

  • Page 22: About Blood Pressure

    ABOUT BLOOD PRESSURE What are systolic pressure and diastolic pressure? When ventricles contract and pump blood out Systolic Diastolic of the heart, the blood pressure reaches its blood entering blood discharging vein maximum value in the cycle, which is called artery systolic pressure.

  • Page 23: Why Does My Blood Pressure Fluctuate Throughout The Day

    ABOUT BLOOD PRESSURE Why does my blood pressure fluctuate throughout the day? 1. Individual blood pressure varies multiple times everyday. It is also affected by the way you tie your cuff and your measurement position, so please take the measurement under the same conditions.

  • Page 24: Troubleshooting

    TROUBLESHOOTING This section includes a list of error messages and frequently asked questions for problems you may encounter with your blood pressure monitor. If the products not operating as you think it should, check here before arranging for servicing. SYMPTOM REMEDY PROBLEM CHECK THIS...

  • Page 25: Specifications

    SPECIFICATIONS Battery powered mode: 6VDC 4×AA batteries AC adaptor powered mode: 1A (Not included) Power supply (Please only use the recommended AC adaptor model). Display mode Digital LCD V.A.60mm*80mm(3.15”*2.36”) Measurement mode Oscillographic testing mode Rated cuff pressure: Measurement range 0mmHg~299mmHg(0kPa ~ 39.9kPa) Measurement pressure: SYS: 60mmHg~230mmHg (8.0kPa~30.7kPa) DIA: 40mmHg~130mmHg (5.3kPa~17.3kPa)

  • Page 26: Authorized Component

    Please call 1-805-383-0003 Monday through Friday, 8:30 AM to 4:30PM PST. 735 West Ventura Blvd., Suite B Camarillo, CA 93010 Homewell Essentials™ is a trademark of Huntkey USA,Inc. Distributed by Huntkey USA, LLC. 735 West Ventura Blvd., Suite B Camarillo, CA 93010...

  • Page 27: Complied Standards List

    COMPLIED STANDARDS LIST Complied Standards List EN ISO 14971:2012 / ISO 14971:2007 Medical devices - Risk management Application of risk management to medical devices EN ISO 15223-1:2016 / ISO 15223-1:2016 Medical devices. Symbols to be used with medical device labels, labelling and Labeling information to be supplied.

  • Page 28: Emc Guidance

    EMC GUIDANCE EMC Guidance 1)This product needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided, and this unit can be affected by portable and mobile RF communications equipment. 2)* Do not use a mobile phone or other devices that emit electromagnetic fields, near the unit.
  • Page 29 EMC GUIDANCE Table 2 Guidance and manufacturer’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. Electromagnetic Immunity test IEC 60601 test level...
  • Page 30 EMC GUIDANCE Table 3 Guidance and manufacturer’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. IEC 60601 Compliance Immunity test...
  • Page 31 EMC GUIDANCE Table 4 Recommended separation distances between portable and mobile RF communications equipment and the device. The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmittters) and the device as recommended below, according to the maximum output power of the communications equipment.
  • Page 32 EMC GUIDANCE Table 5 Guidance and manufacturer’s declaration - electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device, should assure that it is used in such an environment. IMMUNITY Radiated RF Test...

  • Page 33: Limitied Warranty

    LIMITED WARRANTY 2 Year Limited Warranty Homewell Essentials products (“Homewell Essentials”) warrants to you, the original purchaser of this new product, that the product shall be free of defects in the original manufacture of the material or workmanship for a period of two (2) year from the original date of your purchase of the product (“Warranty Period”).
  • Page 34 • Damage due to incorrect operation or maintenance • Connection to an incorrect voltage supply • Attempted repair by anyone other than a facility authorized by Homewell Essentials to service the product • Products sold as is or with all faults •...
  • Page 35 homewell E S S E N T I A L S Distributed by: Huntkey USA, Inc Address: 735 West Ventura Blvd., Suite B Camarillo, CA 93010 Made in China...
  • Page 36 Manufactured for & Distributed by: Huntkey USA Inc. 735 West Ventura Blvd., Suite B Camarillo, CA 93010...
