ADCP-80-575 • Issue 2 • December 2006
4. Place the fuse platform in the specified mounting space within the rack.
5. Secure the fuse platform to the equipment rack as shown in
inch (9.53 mm) long pan-head screws and flat washers provided.
Caution: Do not use any hardware other than the hardware supplied with the fuse platform.
TIGHTEN MOUNTING SCREWS
TO 27 POUND-FORCE INCHES
(3.1 NEWTON METERS) OF TORQUE
4.3

Grounding Chassis

Use the following procedure to connect the panel to an approved office ground source:
1. Obtain two lengths of #10 AWG wire for use as the chassis grounding wires.
Note: A single ground wire can also be used. If using a single ground wire, use #6 AWG
wire terminated at either stud.
2. Terminate one end of each wire with the #10 ring terminals provided (requires crimper).
3. Connect the ring terminal end of each wire to one of the studs and secure using the nuts
with captive star washers provided (requires 3/8-inch socket). Tighten each stud nut to 23
pound-force inches (2.6 Newton meters) of torque.
4. Route the free end of each chassis grounding wire to an approved office ground source.
5. Cut each chassis grounding wire to length and connect it to the office ground source as
required by local code or practice.
Page 20
© 2006, ADC Telecommunications, Inc.
DETAIL DRAWING OF
MOUNTING SCREWS
AND WASHERS
USE #12 STAR WASHERS INSTEAD OF FLAT
WASHERS IF REQUIRED BY LOCAL PRACTICE

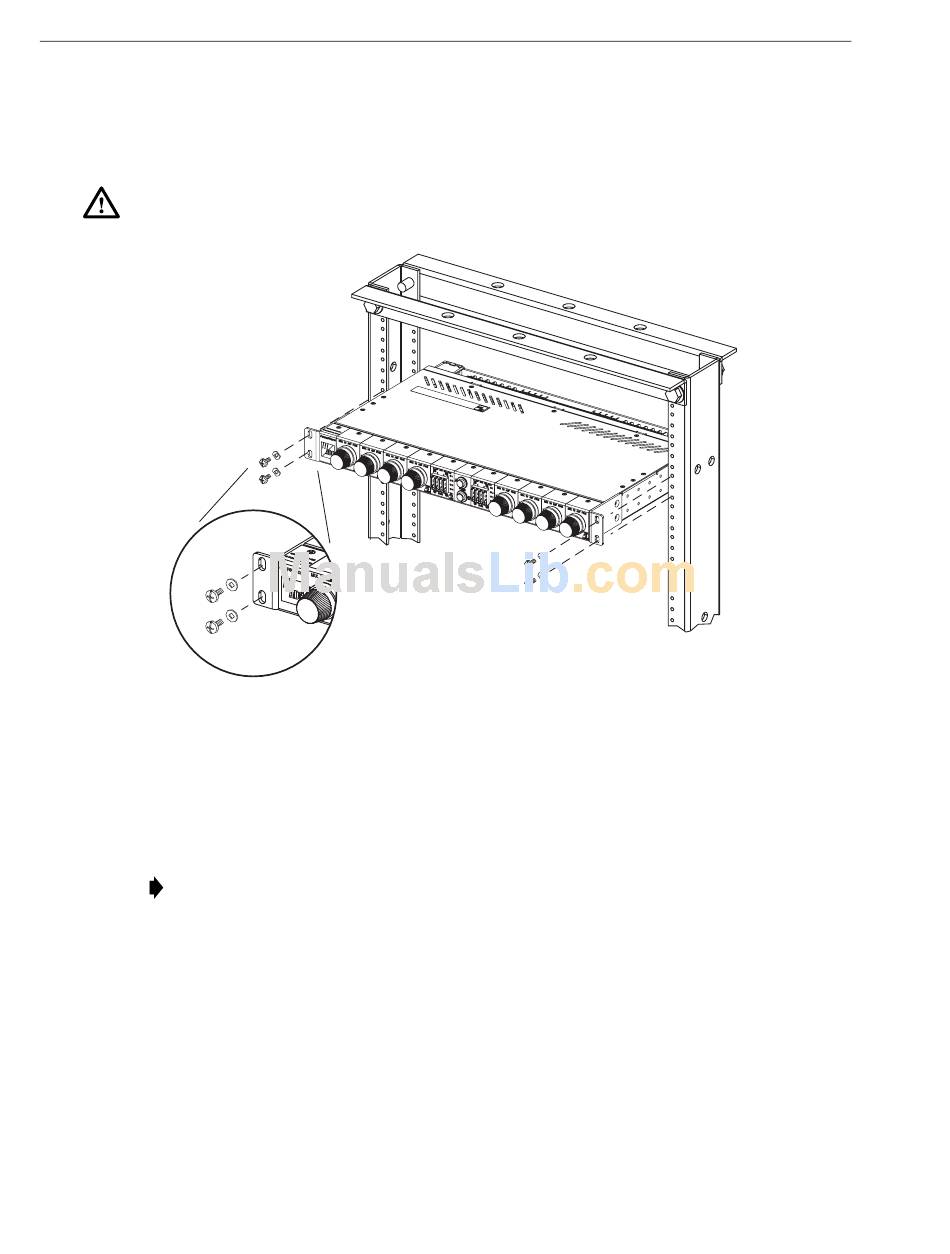

Figure 14. Mounting Fuse Platform on Rack
Figure 14 using the four 3/8-
18865-A
