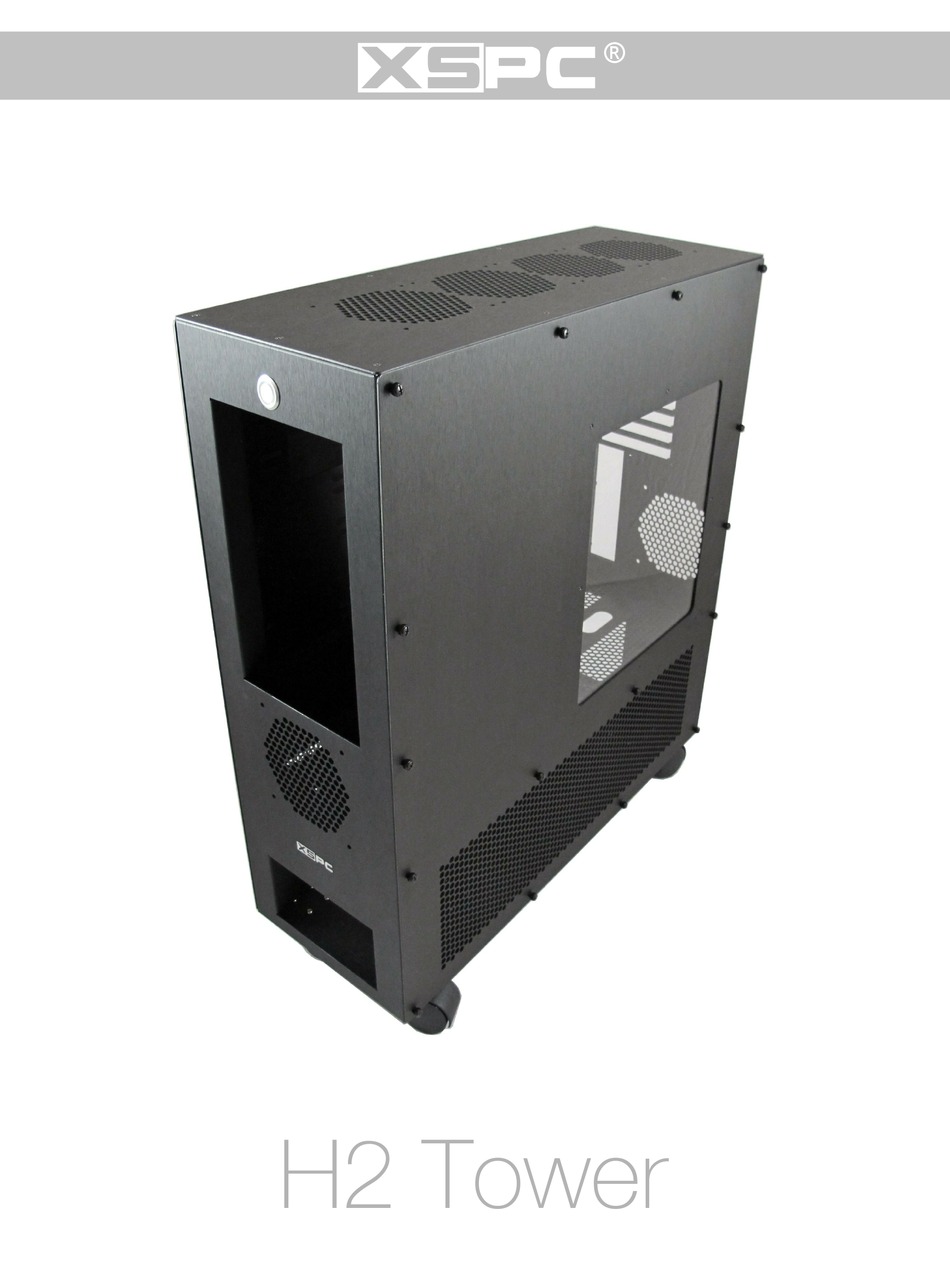

- Page 1 ® XSpc H2 Tower...
-
Page 2: Table Of Contents
Page 11 Attaching the center panel Page 12 Fitting the beams Page 13 Attaching the HDD cage Page 14 Fitting the motherboard tray Page 15 Fitting the side panels Page 16 Radiator placements Page 17 Troubleshooting Page 18 Page 1 XSpc... - Page 3 Introduction The XSPC H2 is a PC case specifically designed for high end PC watercooling. It can support a quad, single and triple 120mm radiator, while leaving plenty of space for tubing routing. The case is supplied in flat pack form, so you will need a little time and patience to get it set up correctly.
-
Page 4: Component List
Component List [A] Base Panel x1 [B] Back Panel x1 [C] Front Panel x1 [D] Top Panel x1 [E] Right Panel x1 [F] Left Panel x1 Page 3 XSpc... - Page 5 [G] MB Cover Panel x1 [H] PCI Panel x1 [I] Motherboard Tray x1 [J] HDD Rack x1 [K] 5.25“ Bay Sides x2 [L] L Beam x2 Page 4 XSpc...
-
Page 6: Accessories
[M] Center Panel x1 [N] MB Support Beam x1 Accessories SSD Tray x1 Castors x4 Power Switch x1 PCI Slot Covers x7 Page 5 XSpc... - Page 7 6-32 Thumb Screw x65 6-32 Countersink Screw x38 6-32 Hex Screw x28 Motherboard Standoff x14 Optional Accessories / Spares Optional accessories and spares can be purchased from www.xspc.biz or from an approved XSPC reseller www.xspc.biz/resellers Page 6 XSpc...
-
Page 8: Preparing The Base Panel
4 holes. sheet. Put a screw through each hole. On the underside of the panel Repeat the process for each of attach a nut to each screw and the four castors. tighten using a screwdriver. Page 7 XSpc... -
Page 9: Preparing The Back Panel
Part 2: Preparing the Back Panel Put panel [B] on a flat surface Place panel [G] over panel [B] facing upward. and line up the six holes. Attach panel [G] using six 6-32 thumb screws. Page 8 XSpc... -
Page 10: Preparing The Front Panel
Flip the panel over and thread the need to use a small screwdriver power cables through the hole on due to limited space. the front. On the reverse side place an o- ring and nut over the switch then tighten the nut. Page 9 XSpc... -
Page 11: Attaching The Back Panel
Take the prepared panels [A] and facing the the correct way. [B] and slot the corners together. Repeat this for the two screw Use two countersunk screws in holes on the other side. the two holes highlighted above. Page 10 XSpc... -
Page 12: Attaching The Front Panel
Part 5: Attaching the Front Panel Take the prepared panel [A] and Use two countersunk screws in front panel [C] and slot the the two holes highlighted above. corners together. Repeat this for the two screw holes on the other side. Page 11 XSpc... -
Page 13: Attaching The Center Panel
The hex holes should be towards the back. Repeat step 3 on the opposite Use a 6-32 countersunk screw on side of the case. the left and right side of the panel. Page 12 XSpc... -
Page 14: Fitting The Beams
Use two countersink screws to Repeat this for the other side, attach the L beam to the front and using the second L beam. back panels. Page 13 XSpc... -
Page 15: Attaching The Hdd Cage
HDD cage from under the center panel. You may wish to fit a fan to the A second optional HDD cage can front to provide HDD cooling. be added in the position shown. Page 14 XSpc... -
Page 16: Fitting The Motherboard Tray
Attach the motherboard tray to On the reverse side attach the the beam by using two 6-32 motherboard tray to the center thumb screws. panel using two 6-32 thumb Page 15 screws. XSpc... -
Page 17: Fitting The Side Panels
Lay the case flat on its side, Start with the two screws shown ready for fitting the side panels. above and fit all sixteen 6-32 thumb screws to panel [F]. Repeat this for the right panel [E] Page 16 XSpc... -
Page 18: Radiator Placements
Radiator placements Position 1: The H2 supports up to a quad 120mm radiator in the roof of the case. You can attach it using the provided 6-32 screws or the screws provided with your radiator. Only screws with a length of 6mm or below should be used. -
Page 19: Troubleshooting
Q – I am missing a part or I have lost a part A – Please contact XSPC support for assistance www.xspc.biz/support XSPC Contact Details Website - www.xspc.biz Support - www.xspc.biz/support Copyright © XSPC (UK) Limited 2011 Page 18 XSpc XSPC is a registered trademark of XSPC (UK) Limited... - Page 20 ® XSpc...
