Summary of Contents for Logik LRBDAB14

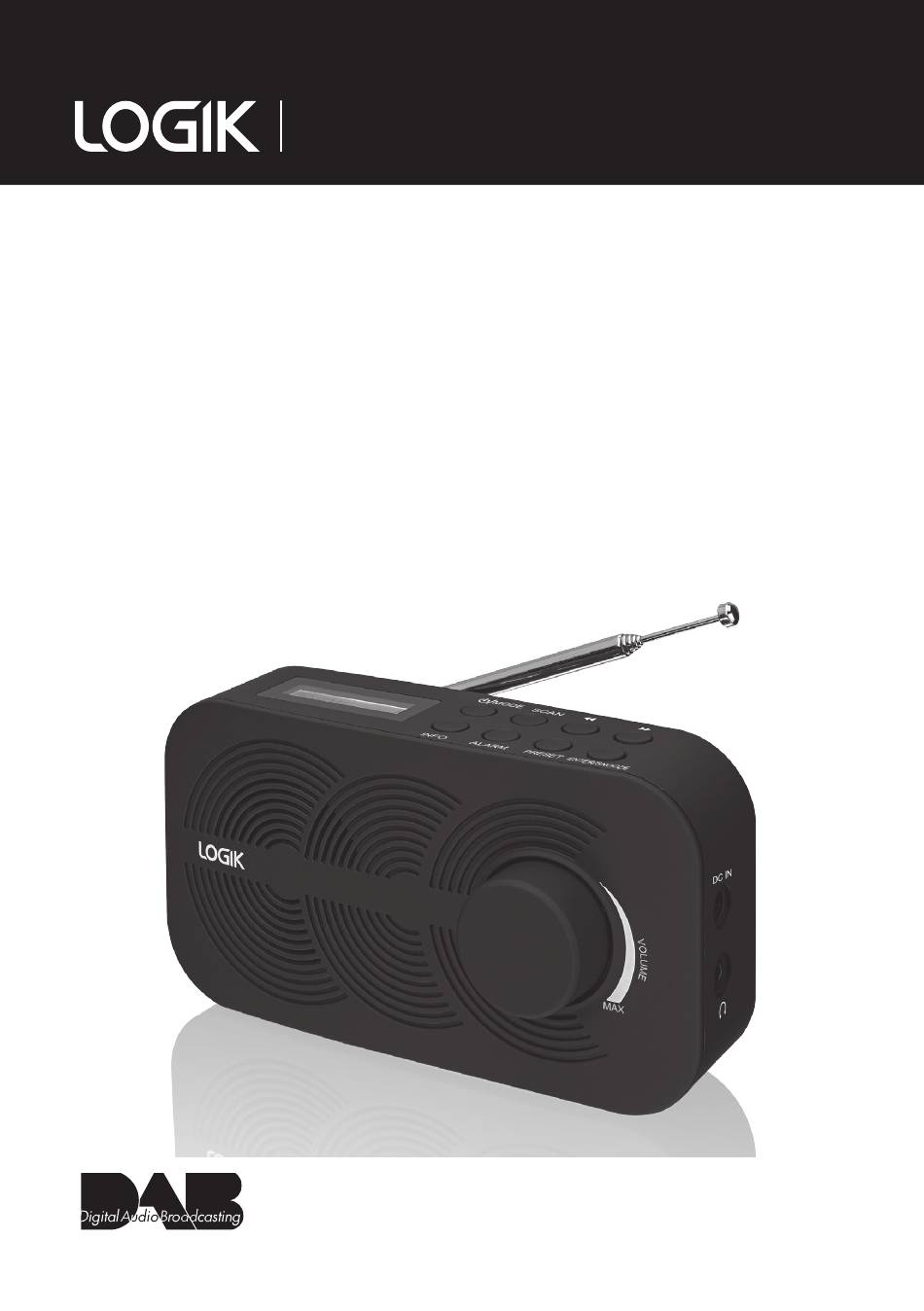

- Page 1 Instruction Manual Portable DAB radio LRBDAB14/LRNDAB14...
-
Page 2: Table Of Contents
Contents Safety Warnings ..........................3 Unpacking ............................4 Product Overview ..........................5 Front View .................................. 5 Rear View ................................... 5 Top View ..................................6 Side View ..................................6 Power Source ..........................7 Mains Power ................................7 Battery Power ................................7 Battery Life (Approx. Hours) ..........................7 Switching On Your Unit for the First Time ..................8 Basic Operation ..........................8 Powering ON/OFF .............................. -
Page 3: Safety Warnings
Safety Warnings Mains Adapter • Retain the manual. If you pass the unit onto a third party make sure to include this manual. • The mains adapter will continue to draw electricity • Check that the voltage marked on the rating label from the mains supply when plugged in the mains matches your mains voltage. -
Page 4: Unpacking
Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual so that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 5: Product Overview
Product Overview Front View 1. VOLUME Dial • Turn clockwise to increase the volume. • Turn anticlockwise to decrease the volume. Rear View 2. Telescopic Aerial 3. Battery compartment cover... -
Page 6: Top View
Top View MODE SCAN INFO ALARM PRESET ENTER/SNOOZE 8. ALARM Button 4. LCD display /MODE Button Buttons 6. INFO Button 10. PRESET Button 7. SCAN Button 11. ENTER/SNOOZE Button Side View 12. DC IN Socket Earphones Socket DC IN • Always unclip and extend the aerial when listening to DAB or FM radio. -
Page 7: Power Source
Power Source Mains Power Connect the mains adapter to the DC IN socket and then the mains socket. DC IN Battery Power Insert 4 AA batteries (not included) correctly by following the polarity (+ or –) indications in the battery compartment. Battery Life (Approx. -
Page 8: Switching On Your Unit For The First Time
• If the batteries are replaced while the power is on, the unit may revert to the factory setting. • Due to the short battery life span of some alkaline batteries. It is recommended to use rechargeable batteries are recommended. You will need to purchase a charger to charge the rechargeable batteries. -
Page 9: Alarm
Alarm Set Alarm On or Off When the unit is in standby mode, press the ALARM button repeatedly to set the alarm status of Alarm1 or Alarm 2. When the LCD display shows Alarm1 and Alarm2, press the Button to select to choose ON or OFF. Press the ENTER/SNOOZE Button to confirm. Alarm setup In standby mode, press the ALARM Button repeatedly to set the alarm status of Alarm1 or Alarm2. -
Page 10: Dab Operation
DAB Operation To listen to the tuned stations press the Button. Each time you press the Button, you will skip to the previous or next stored station (including primary and secondary station). The unit will display the station name. Auto Scan Modes Full scan Searches all DAB channels in DAB Band III. -
Page 11: Dab Display Modes
DAB Display Modes Every time you press the INFO Button, the bottom line of the display will cycle through the following display modes. DLS (Dynamic Label Segment) DLS (Scrolling Text) Dynamic Label Segment is a scrolling message that the broadcaster may include with their transmissions. -
Page 12: Fm Operation
FM Operation Switching from DAB to FM Mode Press the /MODE Button to switch to FM mode. The display will show FM frequency. On the top line of the display is the current frequency. On the bottom of the display, <Programme Type>... -
Page 13: Fm Display Modes
FM Display Modes Every time you press the INFO Button, the bottom line of the display will cycle through the following display modes. Frequency Frequency This shows the frequency of the current station, e.g. 89.80 MHz. Audio Mode Audio Mode When in FM mode, the display will show if the station being received is in mono or stereo mode. -
Page 14: Software Version
Software Version While in DAB or FM mode, press and hold the INFO Button. The LCD display will show SYSTEM RESET. Press the INFO Button again to show the software version of this unit on the LCD display. System Reset There may be times when you need to reset your unit to the factory settings. -
Page 15: Hints And Tips
This may occur if the broadcaster changes the label of a service or removes a label. The unit will try to retune or perform a scan. Specifications LRNDAB14 / LRBDAB14 Model Mains Adapter (Use only mains adapter listed below) Model... - Page 16 For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0344 5611234. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day.
