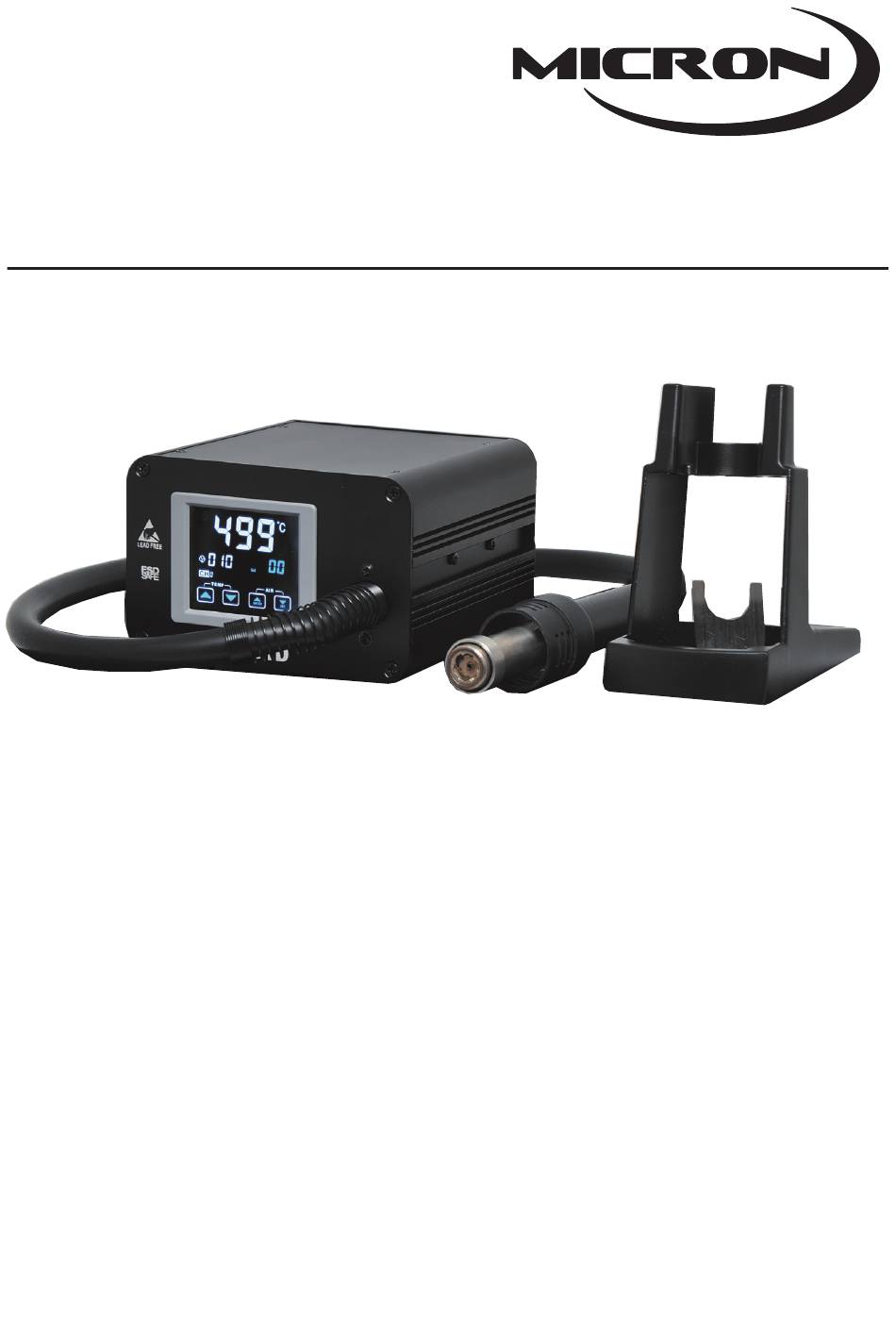

T 1287A 1300W Hot Air
SMD Rework Station
Operating Instructions
• Low vibration air pump • Suits leaded & lead free solder (RoHS)
• Quality heating element • Rapid heat up
• LCD Touch Screen control interface
• Individual temperature & air flow adjustments
• Auto fan cooling extends element life • ESD safe • Zero switching
circuitry for spike suppression
INSIDE THE BOX
• T 1287A Workstation and air pump handle / pencil • Air pump handle stand •
3 Single pipe Nozzles: 8.5Ø, 6.5Ø, 5Ø • IC removing wire tool • Pliers (Tweezer)
– 5 piece set, non-magnetic, acid-resistant stainless steel • Mains Power Cord •
Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Micron T 1287A
Summary of Contents for Micron T 1287A
- Page 1 INSIDE THE BOX • T 1287A Workstation and air pump handle / pencil • Air pump handle stand • 3 Single pipe Nozzles: 8.5Ø, 6.5Ø, 5Ø • IC removing wire tool • Pliers (Tweezer) – 5 piece set, non-magnetic, acid-resistant stainless steel • Mains Power Cord •...
- Page 2 Micron® 1300W Hot Air SMD Rework Station OVERVIEW Thank you for choosing the T 1287A SMD Rework Station – a great solution for your soldering equipment needs! This tool is specifically designed for soldering and desoldering Surface Mount Devices (SMDs) with temperature controlled hot air.
- Page 3 Micron® 1300W Hot Air SMD Rework Station SAFETY PRECAUTIONS RECOMMENDED FOR OPERATION 1. Ensure the voltage rating of the unit and your power supply is identical prior to use. 2. Check carefully for any damage that may have occurred during transportation.
- Page 4 Micron® 1300W Hot Air SMD Rework Station FUNCTION DESCRIPTION Heating (Sun Icon) Sunlight icon shows that the element is heating up, temperature increases. When it flashes, it shows that the temperature is being maintained at the set temperature. Cooling (Snowflake) When it appears on screen, it shows that they element is cooling down, decreasing temperature.
-
Page 5: Operating Procedures
Micron® 1300W Hot Air SMD Rework Station OPERATING PROCEDURES Air Flow Rate Temp 1. Ensure that the base unit power switch is in the “OFF” position. Next connect AC power cord. 2. Turn mains power switch to “ON” position. The LCD touch screen will illuminate many icons, most of which are non-functioning indicators. -
Page 6: Operation Setup
Micron® 1300W Hot Air SMD Rework Station • Initially, the nozzle may emit white smoke, but this will soon dissipate. • Never allow the hot air to blow against your skin. Never point the nozzle at anyone when using the device. Keep the hot air from the nozzle away from the eyes and face. -
Page 7: General Cleaning
Micron® 1300W Hot Air SMD Rework Station QFP (QUAD FLAT PACKAGE) DE-SOLDERING FOR ICS 1. Melt the solder: Hold the iron so that the nozzle is located directly over but not touching the IC, and allow the hot air to melt the solder. Be careful not to touch the leads of the IC with the nozzle. - Page 8 Micron® 1300W Hot Air SMD Rework Station Altronic Distributors warrants this product for one year from date of purchase from Altronics or its resellers to the consumer. If this item is part of an installation or another product, please contact the installer or supplier for your warranty.
