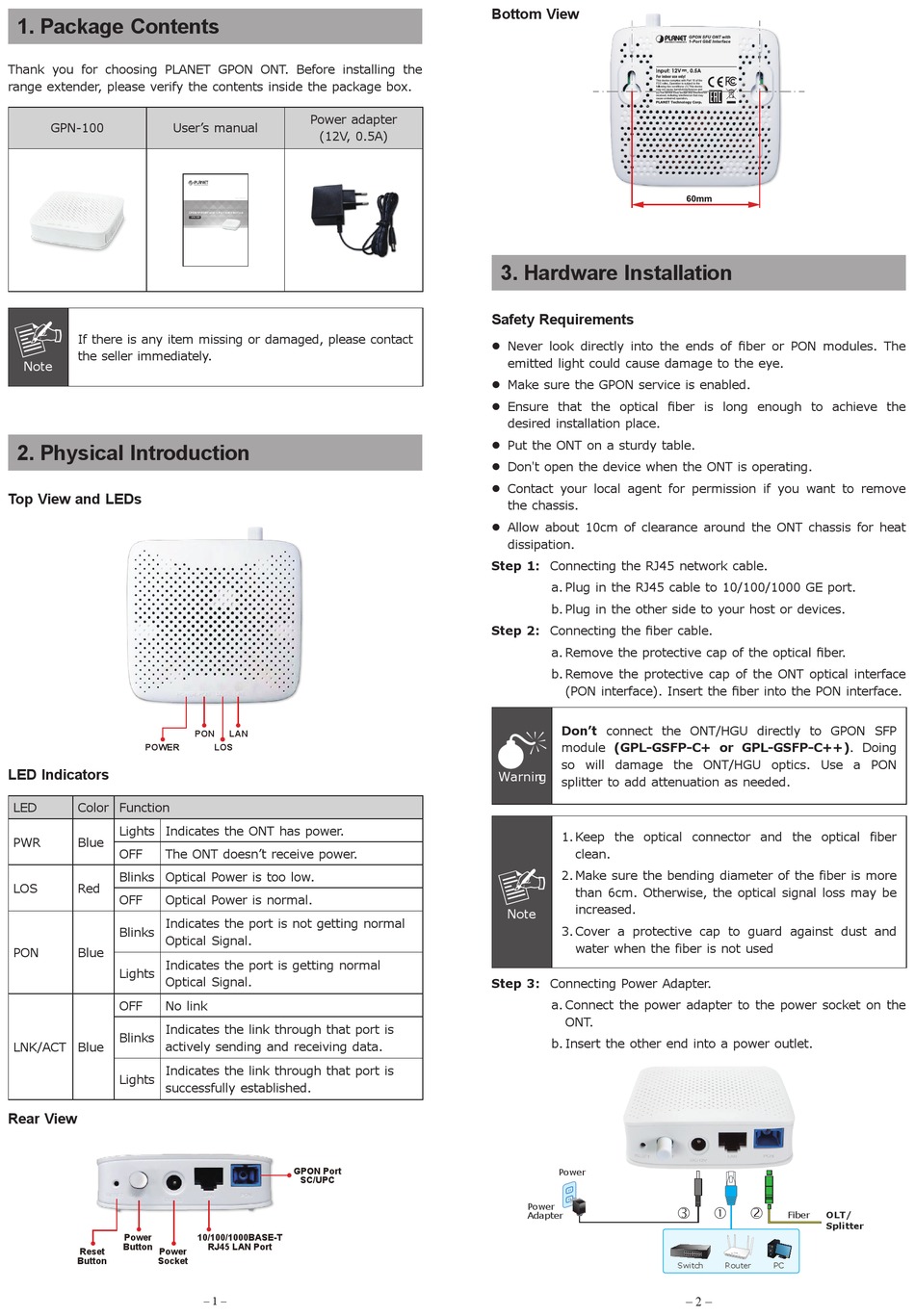

Planet Networking & Communication GPN-100 User Manual

1. Package Contents
Thank you for choosing PLANET GPON ONT. Before installing the
range extender, please verify the contents inside the package box.
GPN-100 User's manual
If there is any item missing or damaged, please contact
the seller immediately.
Note
2. Physical Introduction
Top View and LEDs
POWER
LED Indicators
LED Color Function
Lights Indicates the ONT has power.
PWR Blue
OFF The ONT doesn't receive power.
Blinks Optical Power is too low.
LOS Red
OFF Optical Power is normal.
Indicates the port is not getting normal
Blinks
Optical Signal.
PON Blue
Indicates the port is getting normal
Lights
Optical Signal.
OFF No link
Indicates the link through that port is
Blinks
LNK/ACT Blue actively sending and receiving data.
Indicates the link through that port is
Lights
successfully established.
Rear View
Power
Button
Reset Power
Button Socket
Power adapter
(12V, 0.5A)
PON LAN
LOS
GPON Port
SC/UPC
10/100/1000BASE-T
RJ45 LAN Port
– 1 –
Bottom View
3. Hardware Installation
Safety Requirements
z Never look directly into the ends of fiber or PON modules. The
emitted light could cause damage to the eye.
z Make sure the GPON service is enabled.
z Ensure that the optical fiber is long enough to achieve the
desired installation place.
z Put the ONT on a sturdy table.
z Don't open the device when the ONT is operating.
z Contact your local agent for permission if you want to remove
the chassis.
z Allow about 10cm of clearance around the ONT chassis for heat
dissipation.
Step 1: Connecting the RJ45 network cable.
a. Plug in the RJ45 cable to 10/100/1000 GE port.
b. Plug in the other side to your host or devices.
Step 2: Connecting the fiber cable.
a. Remove the protective cap of the optical fiber.
b. Remove the protective cap of the ONT optical interface
(PON interface). Insert the fiber into the PON interface.
Don't connect the ONT/HGU directly to GPON SFP
module (GPL-GSFP-C+ or GPL-GSFP-C++). Doing
so will damage the ONT/HGU optics. Use a PON
Warnin g
splitter to add attenuation as needed.
1. Keep the optical connector and the optical fiber
clean.
2. Make sure the bending diameter of the fiber is more
than 6cm. Otherwise, the optical signal loss may be
increased.
Note
3. Cover a protective cap to guard against dust and
water when the fiber is not used
Step 3: Connecting Power Adapter.
a. Connect the power adapter to the power socket on the
ONT.
b. Insert the other end into a power outlet.
Power
Power
Adapter
  
OLT/
Fiber
Splitter
Switch Router PC PC
– 2 –
