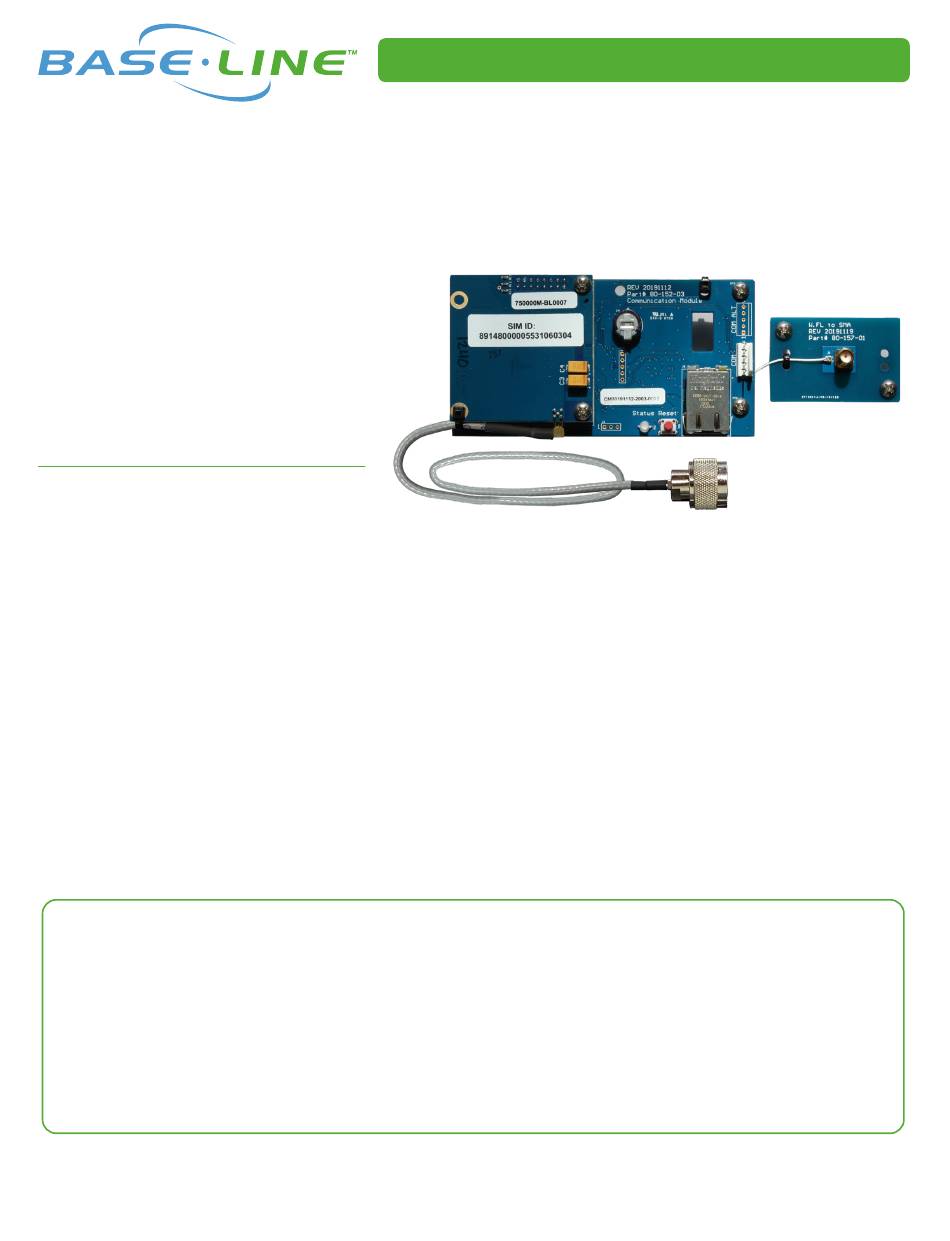

Cloud Network Module
Installation and Configuration Guide
The Cloud Network Module is available for use
on the BaseStation 1000, the BaseStation 3200,
the FlowStation and the SubStation. It mounts
internally to the top of X-cabinet enclosures and
to the back plate of pedestal enclosures. Power is
supplied by the 5-pin connector, along with any
communication lines that are being used.
The Cloud Network Module provides multiple
communication channels that can be used
by controllers or other devices. The following
channels are currently available for use:
• Cloud Network Ethernet
• Cloud Network Wi-Fi
• Cloud Network Cellular
Materials Provided
• Cloud Network Module
• Antenna with cable
• 5-pin serial cable
• Zip Ties
We recommend that you back up your current configuration before starting this process in case you
need to restore your system.
• Refer to Backing Up the Controller Programming in the BaseStation 1000 User Manual.
• Refer to Backing Up Your System in the BaseStation 3200 User Manual.
You will also need to halt all watering while you install the Cloud Network Module.
• BaseStation 1000: Press the OFF button.
• BaseStation 3200: Turn the dial to the OFF position.
Please ensure the firmware version of your Baseline controller
meeets the minimum required firmware version to ensure device
compatibility. Minimum required versions are as follows:
•
BaseStation 3200 V17.12
•
BaseStation 1000 V1.25
•
FlowStation V3.5
•
SubStation V2.3
Tools Needed
• Phillips screwdriver
• Crescent wrench
• Needle nose pliers
1
800 362 8774
|
hydropoint.com
|
support@hydropoint.com
Advertisement
Summary of Contents for Base Line Cloud Network BL-CLOUD-WFE
- Page 1 Cloud Network Module Installation and Configuration Guide The Cloud Network Module is available for use on the BaseStation 1000, the BaseStation 3200, the FlowStation and the SubStation. It mounts internally to the top of X-cabinet enclosures and to the back plate of pedestal enclosures. Power is supplied by the 5-pin connector, along with any communication lines that are being used.
-
Page 2: Table Of Contents
BASELINE CLOUD NETWORK MODULE Table of Contents Cloud Network Module Diagrams Installing the Cloud Network Module into an X/XS cabinet Installing the Cloud Network Module into a pedestal cabinet 8-13 Configuration Guide for the BaseSation 3200 14-19 Configruation Guide for the BaseStation 1000, FlowStation & Substation 20-24 866 294 5847 baselinesystems.com... -
Page 3: Cloud Network Module Diagrams
BASELINE CLOUD NETWORK MODULE Cloud Network Module Diagram Before beginning, familiarize yourself with the parts labeled in the illustrations below. Two types of communication boards available. The Cloud Network Module wth 4G LTE configuration and the Cloud Network Module with Wi-Fi configuration. Cloud Network Module with 4G Configuration BL-CLOUD-LTE A. -
Page 4: Installing The Cloud Network Module Into An X/Xs Cabinet
BASELINE CLOUD NETWORK MODULE Installing the Cloud Network Module into a X/XS Cabinet For LTE Cloud Network Module installations, make sure that the antenna is securely connected before beginning. If the module is powered up with a loose or disconnected antenna, damage may occur to the circutry. - Page 5 BASELINE CLOUD NETWORK MODULE Installing the Cloud Network Module into an X/XS Cabinet, Cont. From the inside of the cabinet, place the lock washer on the stem of the antenna, and then thread the nut onto the stem. Use a wrench to tighten the nut sufficiently to ensure that the antenna makes good contact with the outside of the cabinet.
- Page 6 BASELINE CLOUD NETWORK MODULE Installing the Cloud Network Module into an X/XS Cabinet, Cont. Align the mounting holes on the Cloud Network Module with the posts on the cabinet. Use the screws provided to securely attach the unit inside the cabinet. Plug the 5-pin connector from the Cloud Network Module into the Comm 2 connector on the left side of the controller board as...
- Page 7 BASELINE CLOUD NETWORK MODULE Installing the Cloud Network Module into an X/XS Cabinet, Cont. For Cell Modem connections, attach the cable from the antenna to the antenna cable port on the Cloud Network Module as shown. 2. Zip tie the antenna cable through the left corner hole in the Cloud Network Module.
-
Page 8: Installing The Cloud Network Module Into A Pedestal Cabinet
BASELINE CLOUD NETWORK MODULE Installing the Cloud Network Module into a Pedestal Cabinet Remove the antenna riser assembly and the antenna from its packaging. 2. Remove the plastic cap, the nut, and the lock washer from the stem of the antenna. - Page 9 BASELINE CLOUD NETWORK MODULE Installing the Cloud Network Module into a Pedestal Cabinet, Cont. Thread the coax connector on the antenna cable onto the stem of the antenna and hand-tighten it. Route the antenna cable towards the bottom of the antenna riser. 2.
- Page 10 BASELINE CLOUD NETWORK MODULE Installing the Cloud Network Module into a Pedestal Cabinet, Cont. Align the holes at the bottom of the antenna riser with the holes in the gasket at the mounting location on the outside left wall of the pedestal.
- Page 11 BASELINE CLOUD NETWORK MODULE Installing the Cloud Network Module into a Pedestal Cabinet, Cont. With the WI-FI antenna on the bottom side of the Cloud Network Module, align the three mounting holes on the Cloud Network Module with the standoffs on the back wall of the pedestal.
- Page 12 BASELINE CLOUD NETWORK MODULE Installing the Cloud Network Module into a Pedestal Cabinet, Cont. For Ethernet connections, attach the cable to the port on the Cloud Network Module as shown. Plug the 5-pin connector from the Cloud Network power cord into Comm 2 connector on the right end of the controller board.
- Page 13 BASELINE CLOUD NETWORK MODULE Installing the Cloud Network Module into a Pedestal Cabinet, Cont. Replace the pedestal door, and then restart the controller • BaseStation 1000: Press the RUN button. • BaseStation 3200: Turn the dial to the RUN position. 866 294 5847 baselinesystems.com support@baselinesystems.com...
-
Page 14: Configuration Guide For The Basesation 3200
BASELINE CLOUD NETWORK MODULE-CONFIGURATION GUIDE - BASESTATION 3200 Cloud Network Module Configuration Guide-BaseStation 3200 Setting Up a CN Ethernet Connection A Cloud Network (CN) Ethernet connection allows your controller or device to automatically obtain an IP address through the cloud, which enables the connection to the internet. Every time you restart your controller or device, it retrieves a new IP address. - Page 15 BASELINE CLOUD NETWORK MODULE-CONFIGURATION GUIDE - BASESTATION 3200 Setting Up a Static Ethernet Connection A static IP Ethernet connection is a permanent IP address that does not change. In some cases, private network configurations or network security issues might require that you configure a static IP address for your controller.
- Page 16 BASELINE CLOUD NETWORK MODULE-CONFIGURATION GUIDE - BASESTATION 3200 Setting Up a CN Cell Connection A Cloud Network (CN) Cell connection allows your controller or device to obtain an internet connection through a cellular device. On the controller, turn the dial to the Network position.
- Page 17 BASELINE CLOUD NETWORK MODULE-CONFIGURATION GUIDE - BASESTATION 3200 Setting Up a CN Cell Connection, Cont. In the Find Network field, press Enter to search for the network. The asterisks represent signal strengths as indicated below: *** Maximum level signal strength Middle level signal strength OK level signal strength Press + or –...
- Page 18 BASELINE CLOUD NETWORK MODULE-CONFIGURATION GUIDE - BASESTATION 3200 Setting Up a CN Wi-Fi Connection A Cloud Network (CN) Wi-Fi connection allows your controller or device to obtain an internet connection wirelessly through the cloud. On the controller, turn the dial to the Network position.
- Page 19 BASELINE CLOUD NETWORK MODULE-CONFIGURATION GUIDE - BASESTATION 3200 Setting Up a CN Wi-Fi Connection, Cont. In the Find Network field, press Enter to search for the network. . Press + or – to highlight the desired network, then Enter to select it. The Security screen displays.
-
Page 20: Configruation Guide For The Basestation 1000, Flowstation & Substation
BASELINE CLOUD NETWORK MODULE-CONFIGURATION GUIDE: BASESTATION 1000, FLOWSTATION, SUBSTATION Cloud Network Module Configuration Guide: BaseStation 1000, FlowStation, SubStation Setting Up a CN Ethernet Connection A Cloud Network (CN) Ethernet connection allows your controller or device to automatically obtain an IP address through the cloud, which enables the connection to the internet. - Page 21 BASELINE CLOUD NETWORK MODULE-CONFIGURATION GUIDE: BASESTATION 1000, FLOWSTATION, SUBSTATION Setting Up a Static Ethernet Connection A static IP Ethernet connection is a permanent IP address that does not change. In some cases, private network configurations or network security issues might require that you configure a static IP address for your controller.
- Page 22 BASELINE CLOUD NETWORK MODULE-CONFIGURATION GUIDE: BASESTATION 1000, FLOWSTATION, SUBSTATION Setting Up a CN Cell Connection A Cloud Network (CN) Cell connection allows your controller or device to obtain an internet connection through a cellular device. On the controller, press System Setup. The System Setup menu displays.
- Page 23 BASELINE CLOUD NETWORK MODULE-CONFIGURATION GUIDE: BASESTATION 1000, FLOWSTATION, SUBSTATION Setting Up a CN Wi-Fi Connection A Cloud Network (CN) Wi-Fi connection allows your controller or device to obtain an internet connection wirelessly through the cloud. On the controller, press System Setup. The System Setup menu displays.
- Page 24 BASELINE CLOUD NETWORK MODULE-CONFIGURATION GUIDE: BASESTATION 1000, FLOWSTATION, SUBSTATION Setting Up a CN Wi-Fi Connection, Cont. In the Find Network field, press OK to search for the network. A list of networks will diisplay. Bars next to each network represent signal strength. 4 bars Maximum level signal strength 2 bars Middle level signal strength 1 bar...
- Page 25 baselinesystems.com CUSTOMER SUPPORT support@baselinesystems.com Toll-free 866.294.5847 Fax 208.323.1834 RevA070220 © Copyright 2020 HydroPoint Data Systems, Inc. All rights reserved.
