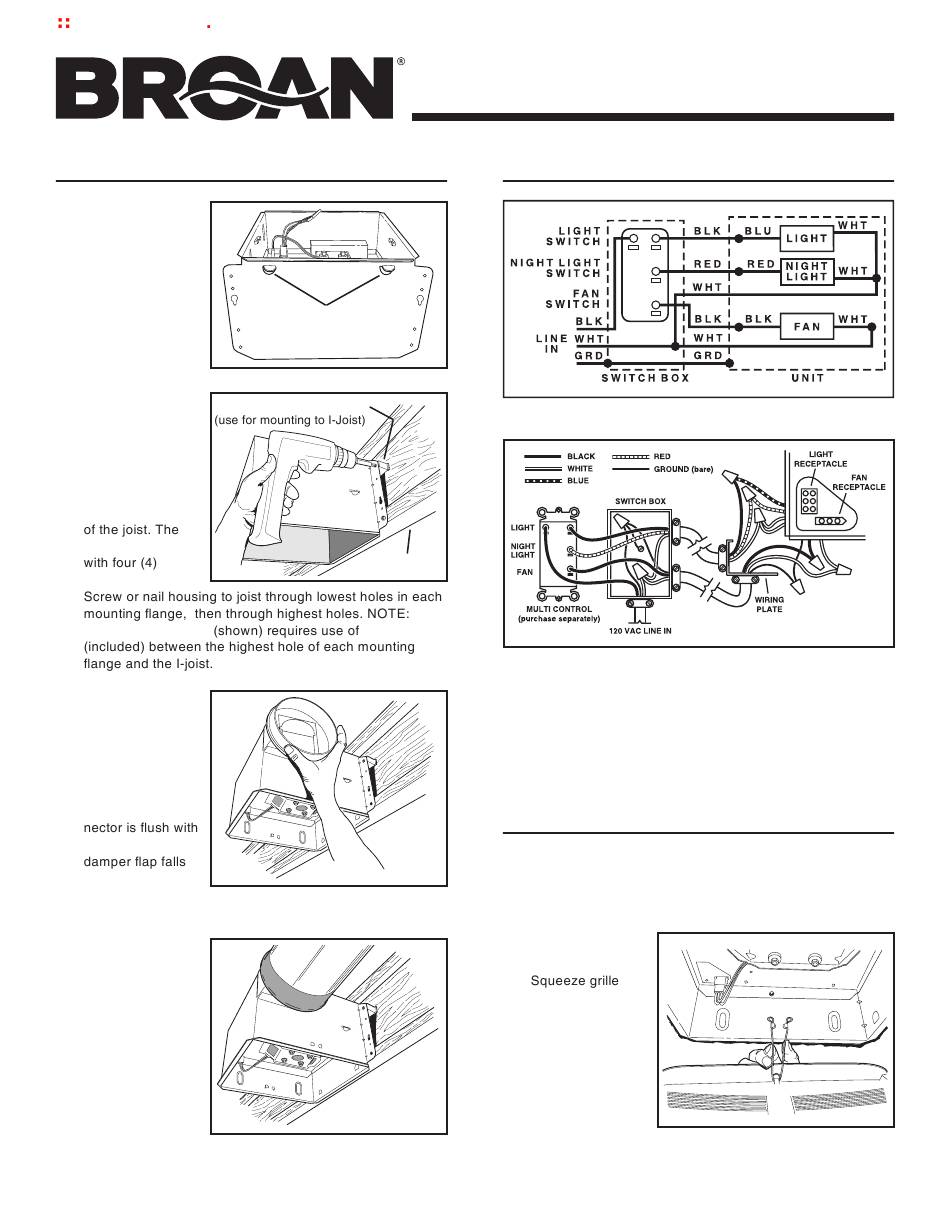

INSTALL HOUSING & DUCT
1. Bend
housing
tabs.
Use a pliers to
bend housing
0
TABS out to 90 .
2. Mount
housing to
joist.
Hold housing
in place so that
the housing tabs
contact the bottom
housing mounts
screws or nails.
Mounting to I-JOIST
3. Attach
damper/duct
connector.
Snap damper /
duct connector
onto housing.
Make sure con-
top of housing and
closed. If using
4-inch ductwork,
install 6" to 4" duct reducer over duct connector.
4. Install
6-inch or 4-
inch round
ductwork.
Connect 6-inch
or 4-inch round
ductwork to
damper / duct
connector or
reducer. Run
ductwork to a
roof cap or wall cap. Tape all ductwork connections to
make them secure and air tight.
Broan at
Call 1-800-667-8721 anywhere in the US and Canada -
TABS
SPACER
I-JOIST
SPACERS
::bathroomsource.com

CONNECT WIRING

5. Connect electrical wiring.
Run 120 VAC house wiring to installation location. Use
proper UL approved connector to secure house wiring to
wiring plate. Connect wires as shown in wiring diagrams.

INSTALL GRILLE

6. Finish ceiling.
Install ceiling material. Cut out around housing.
7. Attach grille
to housing.
springs and insert
them into slots
on each side of
housing.
