OSP Designs LANDON WRITING DESK LDN25 Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. OSP Designs Manuals
  4. Indoor Furnishing
  5. LANDON WRITING DESK LDN25
  6. Assembly instructions manual

OSP Designs LANDON WRITING DESK LDN25 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
LIMITED WarranTy
OSP Designs Warrants, to the original purchaser its products to be free from defects in material and workmanship for a period of 90 days. Defects
and damage from misuse, abuse, negligence, alteration, accident, vandalism, rusting, acts of nature or any other event beyond the control of OSP
Designs is not covered. The warranty does not cover cosmetic damage that may result from normal use. Liability for incidental or consequential
damages is excluded. The user assumes all risk of injury resulting from use of this product. This warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.
To make a warranty claim, contact Customer Service, provide model number, sales receipt and description of the problem. It is the customer's
responsibility to prepay freight on any components returned to the factory. OSP Designs will pay return freight on components covered under
terms of warranty.
Our quality standards are among the highest in the industry. Sometimes, no matter how hard we try, there are times when hardware is missing.
Our Parts Department will do everything possible to promptly remedy the problem. Contact us via email parts@officestar.net, by Fax
1-909-930-5629, or toll free parts number 1-800-950-7262, Monday through Friday 8:00 a.m. - 5:00 p.m. Pacific Time. OSP Designs P.O. Box
3520 Ontario, California 91761 USA

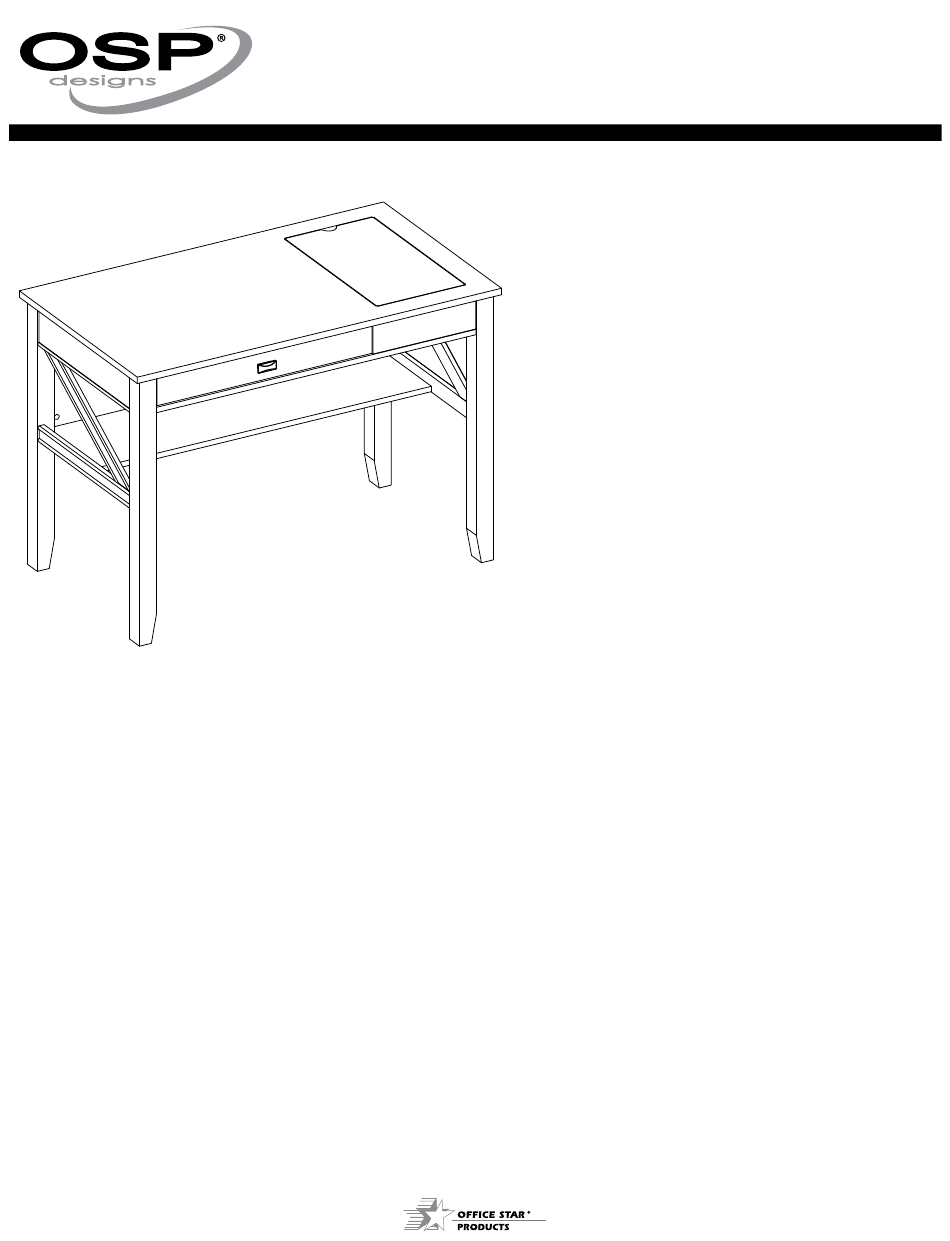

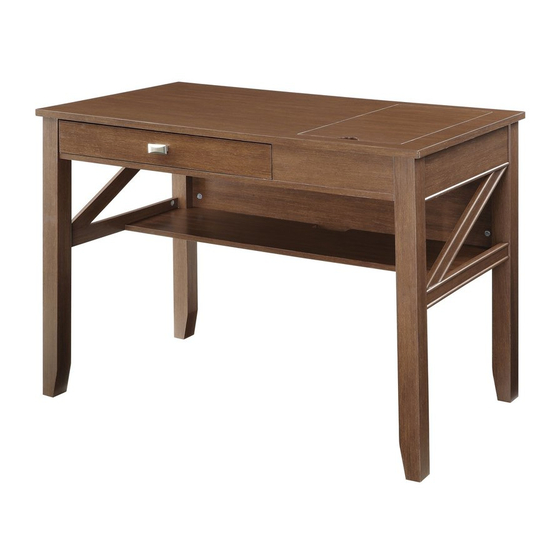

LDN25
LANDON WRITING DESK
ASSEMBLY INSTRUCTIONS
WarnInG
1. Do not use this product unless all screws and bolts are securely
tightened.
2. Check that all screws and bolts are tight every three months or as
needed.
3. Dispose of packing material properly. Do not use plastic cover as
head covering. It may cause suffocation.
4. Do not use this product as a stepladder.
5. Use this product for its intended purpose only.
6. Intended for residential use only

Advertisement

loading
Need help?

Need help?

Do you have a question about the LANDON WRITING DESK LDN25 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OSP Designs LANDON WRITING DESK LDN25

Summary of Contents for OSP Designs LANDON WRITING DESK LDN25

  • Page 1 LIMITED WarranTy OSP Designs Warrants, to the original purchaser its products to be free from defects in material and workmanship for a period of 90 days. Defects and damage from misuse, abuse, negligence, alteration, accident, vandalism, rusting, acts of nature or any other event beyond the control of OSP Designs is not covered.
  • Page 7 Insert two Wooden Dowels (10) into Left Side Frame (B), attach and secure Slide Spacer (S) to Left Side Frame (B) using two Screws (7). FULLY TIGHTEN SCREWS (7). Seperate Slides (15). Secure base of one Slide (15) to Left Side Frame (B) using three Screws (6). FULLY TIGHTEN SCREWS (6).
  • Page 8 Insert four Wooden Dowels (3) into top of Left Side Frame (B). Attach seven Cam Bolts (1) to Left Side Frame (B). FULLY TIGHTEN CAM BOLTS (1). Cover holes in Left Side Frame (B) using three Plastic Caps (17). Insert four Wooden Dowels (3) into top of Right Side Frame (C). Attach nine Cam Bolts (1) to Right Side Frame (C).
  • Page 9 Insert two Wooden Dowels (3) into edge of Middle Shelf Divider (G), secure remaining base of Slides (15) to Middle Shelf Divider (G) using three Screws (6). FULLY TIGHTEN SCREWS (6). Flip Middle Shelf Divider (G) over and insert two Wooden Dowels (3) into edge and attach one Cam Bolt (1) to Middle Shelf Divider (G).
  • Page 10 Insert six Wooden Dowels (3) into edges of Long Divider Panel (F). Insert two Wooden Dowels (3) into each edge of Middle Shelf Panel (D). Secure Middle Shelf Divider (G), Short Divider Panel (H) and Right Front Panel (I) assembly to Middle Shelf Panel (D) using nine Screws (7).
  • Page 11 Insert two Wooden Dowels (3) into edges of Back Panel (K), attach two Cam Bolts (1) to Back Panel (K). FULLY TIGHTEN CAM BOLTS (1). Insert four Wooden Dowels (3) into edges of Lower Shelf Panel (E). Attach Lower Shelf Panel (E) to Back Panel (K) and secure using two Cam Locks (2). FULLY TIGHTEN CAM LOCKS (2).
  • Page 12 Attach Left Side Frame (B) to assembly and secure using seven Cam Locks (2). FULLY TIGHTEN CAM LOCKS (2). Cover holes using seven using seven Plastic Caps (17). Attach Right Side Frame (C) to assembly and secure using nine Cam Locks (2). FULLY TIGHTEN CAM LOCKS (2).
  • Page 13 Attach both Tablet Supports (J) to bottom of Top Panel (1) using three Screws (8) for each Tablet Support (J). FULLY TIGHTEN SCREWS (8). Attach ten Cam Bolts (1) to bottom of Top Panel (1). FULLY TIGHTEN CAM BOLTS (1). Carefully place Top Panel (A) onto assembly and secure using ten Cam Locks (2).
  • Page 14 Secure one inner part of Slides (15) to both Left Drawer Side (L) and Right Drawer Side (M) using three Screws (6) for each Slide (15). FULLY TIGHTEN SCREWS (6). Secure Left Drawer Side (L) and Right Drawer Side (M) to Drawer Back (P) using two Screws (7).
  • Page 15 Insert six Wooden Dowels (4) into Drawer Bottom (Q). Attach drawer assembly to Drawer Bottom (Q) and secure using six Screws (7). FULLY TIGHTEN SCREWS (7). Secure Handle (12) to front of Drawer Face (N) using two Screws (14). FULLY TIGHTEN SCREWS (14). Insert two Wooden Dowels (10) into Drawer Face (N), secure Drawer Front (O) using two Screws (9).
  • Page 16 Secure drawer front assembly to drawer assembly using six Screws (5). FULLY TIGHTEN SCREWS (5). Carefully place Tablet (R) onto assembly. Carefull slide drawer into assembly. ATTENTION: MAKE SURE ALL SCREWS AND BOLTS ARE SECURELY TIGHTENED BEFORE USING THIS PRODUCT.
