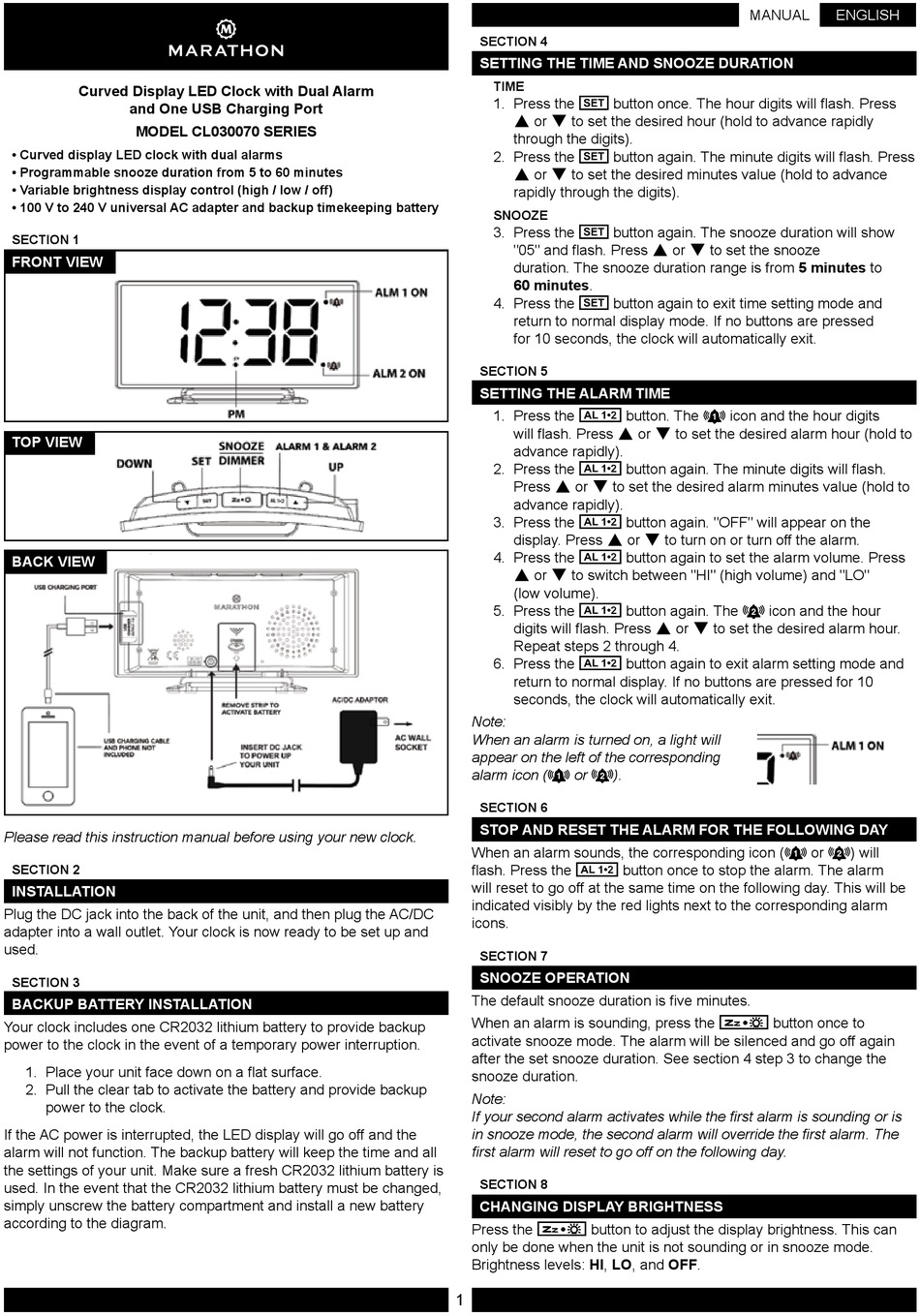

Marathon CL030070 Series Manual

Curved Display LED Clock with Dual Alarm
and One USB Charging Port
MODEL CL030070 SERIES
• Curved display LED clock with dual alarms
• Programmable snooze duration from 5 to 60 minutes
• Variable brightness display control (high / low / off)
• 100 V to 240 V universal AC adapter and backup timekeeping battery
SECTION 1
FRONT VIEW
TOP VIEW
BACK VIEW
Please read this instruction manual before using your new clock.
SECTION 2
INSTALLATION
Plug the DC jack into the back of the unit, and then plug the AC/DC
adapter into a wall outlet. Your clock is now ready to be set up and
used.
SECTION 3
BACKUP BATTERY INSTALLATION
Your clock includes one CR2032 lithium battery to provide backup
power to the clock in the event of a temporary power interruption.
1. Place your unit face down on a flat surface.
2. Pull the clear tab to activate the battery and provide backup
power to the clock.
If the AC power is interrupted, the LED display will go off and the
alarm will not function. The backup battery will keep the time and all
the settings of your unit. Make sure a fresh CR2032 lithium battery is
used. In the event that the CR2032 lithium battery must be changed,
simply unscrew the battery compartment and install a new battery
according to the diagram.
SECTION 4
SETTING THE TIME AND SNOOZE DURATION
TIME
1. Press the U button once. The hour digits will flash. Press
H or I to set the desired hour (hold to advance rapidly
through the digits).
2. Press the U button again. The minute digits will flash. Press
H or I to set the desired minutes value (hold to advance
rapidly through the digits).
SNOOZE
3. Press the U button again. The snooze duration will show
"05" and flash. Press H or I to set the snooze
duration. The snooze duration range is from 5 minutes to
60 minutes.
4. Press the U button again to exit time setting mode and
return to normal display mode. If no buttons are pressed
for 10 seconds, the clock will automatically exit.
SECTION 5
SETTING THE ALARM TIME
1. Press the R button. The S icon and the hour digits
will flash. Press H or I to set the desired alarm hour (hold to
advance rapidly).
2. Press the R button again. The minute digits will flash.
Press H or I to set the desired alarm minutes value (hold to
advance rapidly).
3. Press the R button again. "OFF" will appear on the
display. Press H or I to turn on or turn off the alarm.
4. Press the R button again to set the alarm volume. Press
H or I to switch between "HI" (high volume) and "LO"
(low volume).
5. Press the R button again. The T icon and the hour
digits will flash. Press H or I to set the desired alarm hour.
Repeat steps 2 through 4.
6. Press the R button again to exit alarm setting mode and
return to normal display. If no buttons are pressed for 10
seconds, the clock will automatically exit.
Note:
When an alarm is turned on, a light will
appear on the left of the corresponding
alarm icon (S or T).
SECTION 6
STOP AND RESET THE ALARM FOR THE FOLLOWING DAY
When an alarm sounds, the corresponding icon (S or T) will
flash. Press the R button once to stop the alarm. The alarm
will reset to go off at the same time on the following day. This will be
indicated visibly by the red lights next to the corresponding alarm
icons.
SECTION 7
SNOOZE OPERATION
The default snooze duration is five minutes.
When an alarm is sounding, press the V button once to
activate snooze mode. The alarm will be silenced and go off again
after the set snooze duration. See section 4 step 3 to change the
snooze duration.
Note:
If your second alarm activates while the first alarm is sounding or is
in snooze mode, the second alarm will override the first alarm. The
first alarm will reset to go off on the following day.
SECTION 8
CHANGING DISPLAY BRIGHTNESS
Press the V button to adjust the display brightness. This can
only be done when the unit is not sounding or in snooze mode.
Brightness levels: HI, LO, and OFF.
1
MANUAL ENGLISH
