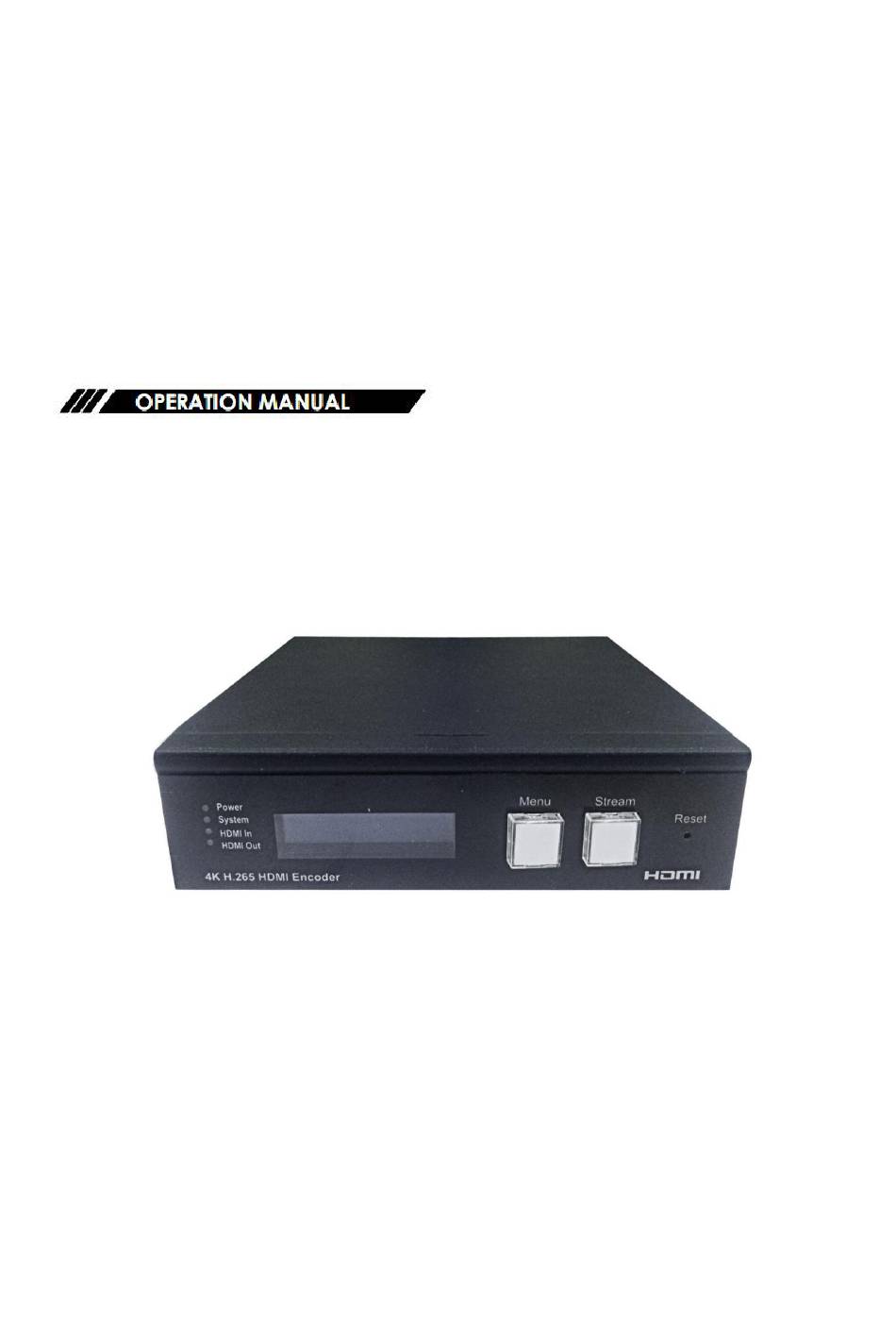

- Page 1 H.265/H.264 HDMI Encoder For IP TV Max resolution 4K@30HZ 4:4:4...
-
Page 2: Table Of Contents
Catalogue Dear Customer......................... 3 1. Features........................3 2. Specifications.......................3 3. Package Contents......................5 4. Panel Descriptions....................... 5 5. Typical Application...................... 6 5.1. Application 1.....................6 5.2. Application 2 Compatible with video player such as VLC etc......6 5.3. Application 3 Work with SX-UHE01-RX............7 6. -
Page 3: Dear Customer
Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. 1. Features Support H.265/H.264 encoding Support HTTP, RTSP, RTMP/RTMPS, HLS, FLV, ONVIF(UDP/RTP) protocol ... - Page 4 Power supply 12V1A Power consumption 4.416W Dimension 125*115*31mm Net Weight 0.44 kg 2.1 Supported input resolution Frequency Resolution 576P 50HZ 720P 1080P 480P 60Hz 720P /59.94Hz 1080P 720P 1080P 30/29.97Hz 4K2K 720P 1080P 24Hz 4K2K 720P 1080P 25Hz 4K2K VESA Resolution Frequency Resolution 800×600...
-
Page 5: Package Contents
1680×1050 1920×1080 1280×720 60Hz 1360×768 1400×1050 1920×1200 3840×2160（Yuv420） 3. Package Contents 1). Main Unit Encoder x1 2). Power Adapter DC12V1A x1 3). Fixed Hanger x2 4). Operating Instruction x1 5). 1*3 Phoenix Terminal x2 4. Panel Descriptions... -
Page 6: Typical Application
① Indicator of Power; Network; HDMI input; HDMI output ② LCD to display firmware version, IP address, MAC address, Channel etc ③ The button to switch LCD display ④ Video streaming buttons ⑤ Reset button ⑥ DC/12V input ⑦ Cat5/6 output ⑧... -
Page 7: Application 3 Work With Sx-Uhe01-Rx
5.3. Application 3 Work with SX-UHE01-RX 6. WEB Instruction: 6.1. Change the IP address of your PC Before configuring the device through the web side, it is necessary to configure the IP address of the computer configured with the device (mainly to ensure that the computer and the device are set in the same network segment). - Page 8 2). Choose to use Static IP, with the IP address set to 196.168.1.x (x ranges from 0 to 254, but cannot be consistent with the device's IP address), 3). Subnet mask set to 255.255.255.0 4). Gateway set to 192.168.1.1 5) . Enter the device's IP address in the web browser for the device configuration interface.
-
Page 9: System Setting
Enter the user configuration interface after you enter the correct user name and password. You can view the relevant information of the device and Configure the device. Note: Encoder Static default IP: 192.168.1.168 (device and computer directly connected by network cable). Device DHCP default open, if there is a router will directly assign IP address. - Page 10 2) Language Switching ● In the "System" interface, the language of the interface can be switched ● Select the language we need, after the selection is completed, we can switch the interface language (support Chinese and English) 3) Channel ● The channel of the device can be configured in advance in the "System" before configuring to use the decoder;...
- Page 11 5) Upgrade Equipment In the "system configuration" interface, you can upgrade the firmware, EDID, Logo of device. ● Firmware upgrade: Select "Firmware" in the upgrade type Find the file (bin format) to upgrade by selecting the path, and click the upgrade button after confirmation.
-
Page 12: Network Configuration
Select "LOGO" in the upgrade type Find the file to upgrade by selecting the corresponding path, and click the upgrade button after confirmation. The device can be upgraded for a moment, it will output the upgraded LOGO image when the input source or input source is compatible. 6) Reset Device ●... -
Page 13: Audio Configuration
Note: 1)How to use RTSP and RTMP refer to the operating steps of the platform 2) The IP address used for communication between the network card and the device needs to be changed to H.264 before using RTMP 6.4. Audio configuration Digital audio (HDMI) and ANALOG audio (ANALOG) can be configured on the "Audio"... -
Page 14: Video Configuration
6.5. Video configuration In the "Video Configuration" interface，the detailed parameters are as follows: 1)Main Data Rate: ● Encoding: H.264、H.265(Default) ● Resolution: 3840×2160(Default)，1920×1080，1280×720，640×360 ● FPS:30(Default)，1-60 ● Control method: CBR、VBR ● Bitrate: 20480(Default)，64-102400Kbps ● Gop: 60（Default），GOP5-300 2) Subprime Data Rate ● Encoding: H.264(Default)、H.265 ●... -
Page 15: Image Settings
6.6. Image settings 1) In the "Image Settings" interface, you can adjust the brightness, contrast ratio, hue, and saturation of the image ● Brightness: 0~100 ● Contrast ratio: 0~100 ● Hue: 0~100 ● Saturation: 0~100 ● System default : 50 2) In the "On Image Settings"... -
Page 16: Osd Configuration
6.7. OSD configuration 6.8. Time configuration 6.9. Serial port configuration 1) Switch: Turn on, Turn off 2) Source port: 0~65535（ Default 5000） 3) Target IP: fill in the IP address of the device to be communicated 4) Target port: 1~65535（Default 5000） 5) Baud Rate: 2400、4800、9600、19200、38400、57600、115200、230400、460800 （Default 115200）... -
Page 17: Video Scheme
(2) The target address must be consistent with the IP address of the other party. 7. Video Scheme When SX-HE05 work with SX-UHE01-RX, it support CMP system to realize the function of Matrix, Multi-View, Video Wall. 7.1. Matrix Configuration Before use Decoder with the platform, set up the matrix configuration on the platform. -
Page 18: Multi-View
window will take the real-time preview image as the current signal source 5. Customize the channel ID of Encoder device (click the blank in the list to unselect it with the left mouse button) 6. The Decoder list corresponds to the Encoder device channel set to be consistent. 7. -
Page 19: Video Wall
Specific steps are as follows: 1) open the CMP integrated management platform and enter the main interface of the functional panel; 2) select the "OSD switch" option, check the OSD switch and return to the main interface of the functional panel; 3) select the "Multi-View"... - Page 20 Specific steps are as follows: 1) Open the CMP integrated management platform and enter the main interface of the functional panel; 2) Select the "OSD switch" option, check the OSD switch and return to the main interface of the functional panel; 3) Select the "Video Wall"...
-
Page 21: Maintenance
Edge Shield is to adjust the entire picture. If the preview of the CMP platform is stuck or the picture is not synchronized, it is recommended to lower the resolution and bit rate of the main stream or substream. MAINTENANCE Clean this unit with a soft, dry cloth. -
Page 22: Warranty
(d) The unit does not operate normally or exhibits a marked change in performance; The unit has been dropped or the cabinet damaged. （2）Servicing Personnel: Do not attempt to service the unit beyond that described in these operating instructions.Refer all other servicing to authorized servicing personnel. （3）Replacement parts: When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. - Page 23 "LIMITED WARRANTY COVERAGE". THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRNTY. (As examples, this excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, travel to and from the service, loss of or damage to media or images, data or other recorded content.
