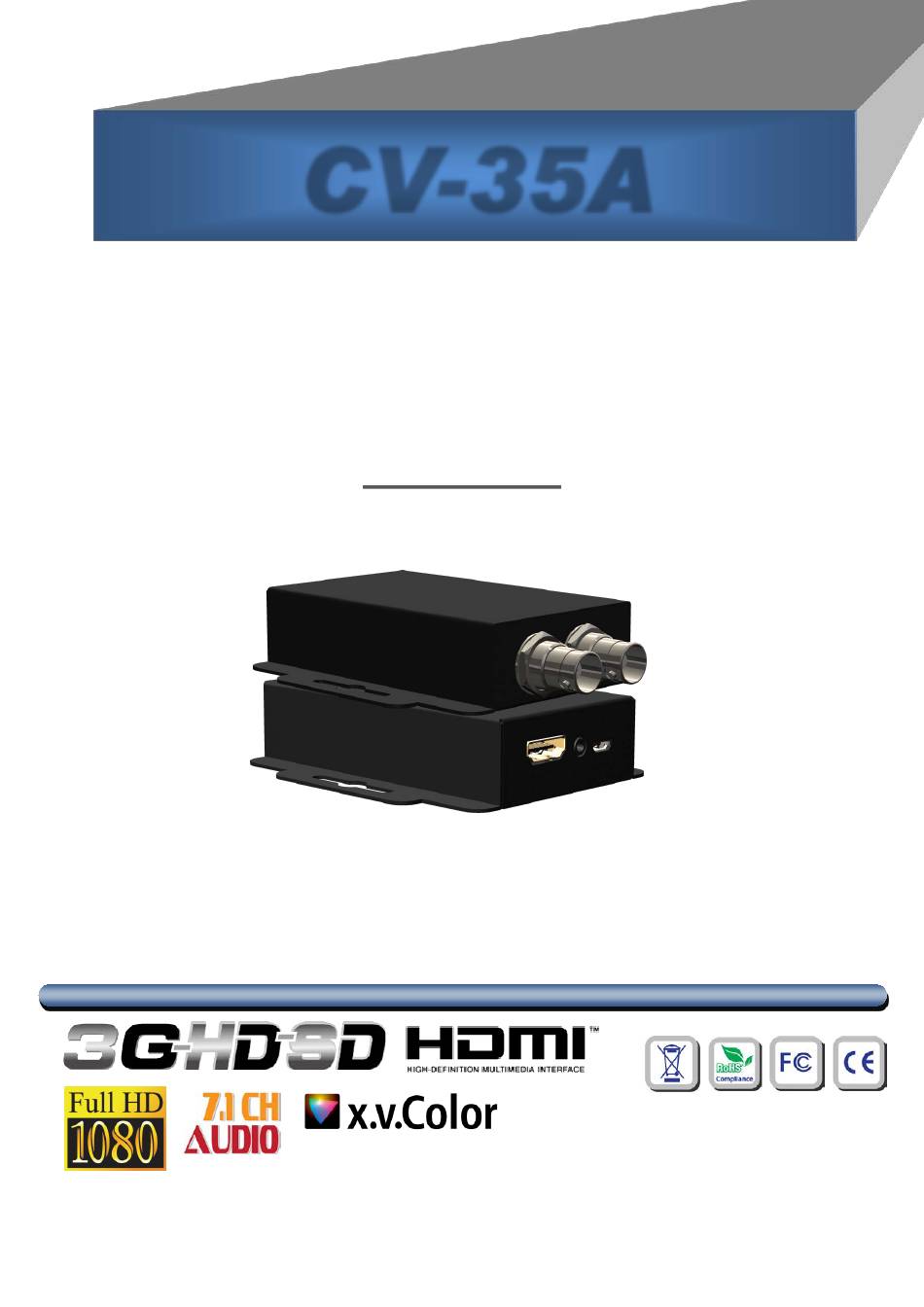

- Page 1 CV-35A 3G/HD/SD-SDI to HDMI Converter with Audio Extractor User Manual rev: 180712 Made in Taiwan...
-
Page 2: Table Of Contents
However, like all electronic equipment, the CV-35A should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
Plus, with up to 8 channels audio support, 7.1 channel or 5.1 channel audio becomes available. The CV-35A also provides one low jitter SDI local loop-out and high quality analog stereo output to provide the flexibility to users. With the use of... -
Page 4: Specifications
SPECIFICATIONS Model Name CV-35A Technical SDI standards 3G-SDI & HD-SDI & SD-SDI HDMI standards HDMI 1.3 Auto 3G/HD/SD-SDI detection [SDI][2.97Gpbs & 2.975/1.001Gbps] Video bandwidth [HDMI] [6.75Gbps] [3G] 1080p50/59.94/60 (4:2:2) [HD] – 720p @50/59.94/60Hz,1080i @50/59.94/60Hz, Video support 1080p @23.98/24/25/29.97/30Hz [SD] – NTSC @59.94Hz, PAL @50Hz... -
Page 5: Panel Description
PANEL DESCRIPTION Front Panel SDI IN: 3G/HD/SD-SDI Input LED: Power LED indicator SDI OUT: 3G/HD/SD-SDI loopout LED: Signal LED indicator Rear Panel HDMI OUT: Connect to a HDMI display with a HDMI male-male cable here. Stereo Audio Output +5V DC: Connect to a 5V DC power supply. -
Page 6: Connection Diagram
CONNECTION DIAGRAM... -
Page 7: Supported Resolutions
SUPPORTED RESOLUTIONS 3G-SDI Output 1080p @ 50/ 59.94 / 60Hz SMPTE 424M, SMPTE 425M HD-SDI Output 720p @ 50Hz SMPTE 296M -3 720p @ 60 / 59.94Hz SMPTE 296M -1, -2 1080i @ 50Hz SMPTE 274M -6 1080i @ 60 / 59.94Hz SMPTE 274M -4, -5 1080p @ 24 / 23.98Hz SMPTE 274M -10, -11... -
Page 8: Warranty
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the CV-35A features and specifications is subject to change without further notice. -
Page 9: Signal Measurement
SIGNAL MEASUREMENT...
