Summary of Contents for CYP CUSB-V604H

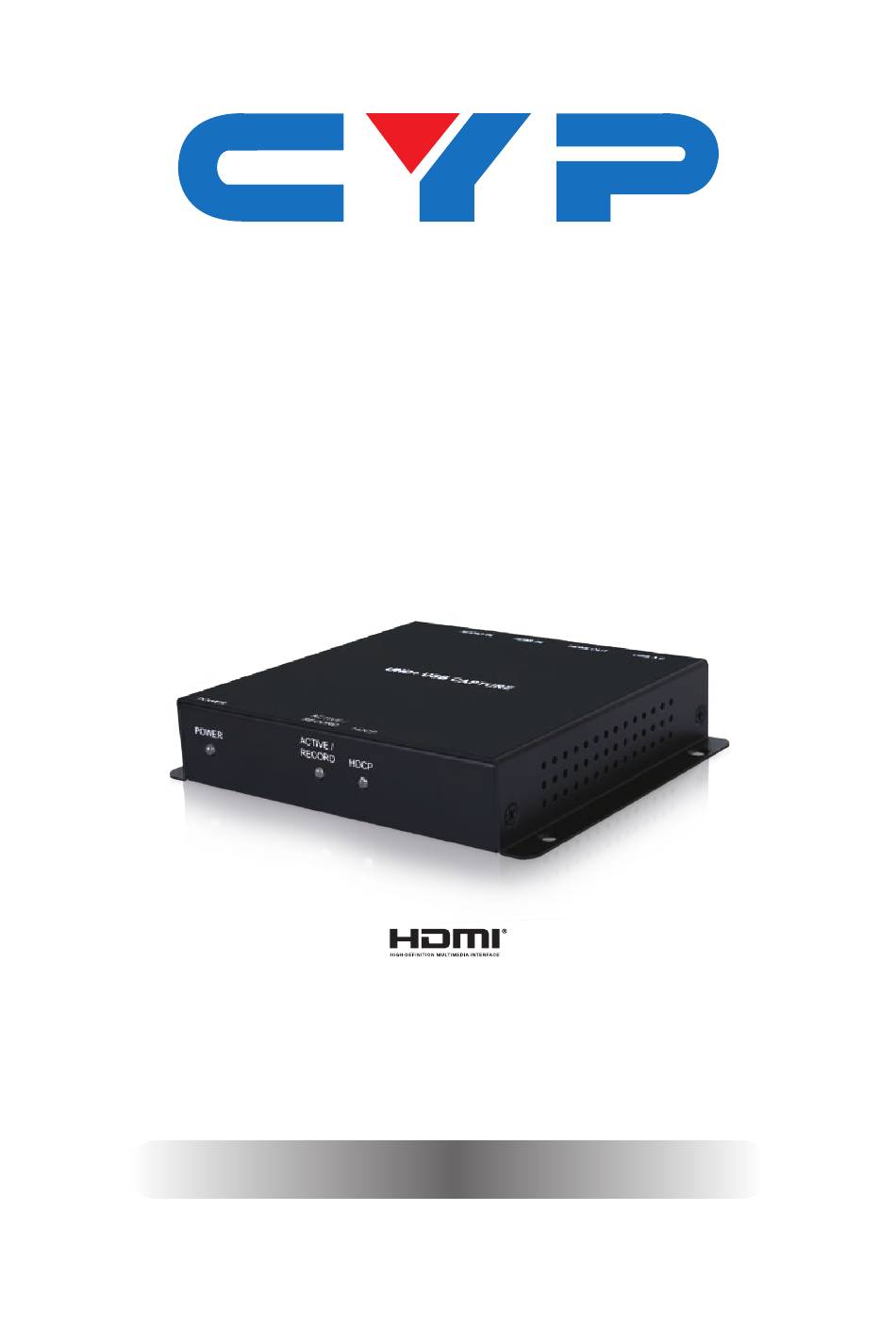

- Page 1 CUSB-V604H 4K UHD+ HDMI to USB Video Capture Recorder Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........4 6.3 Configuration and Video Capture ..5 6.3.1 Video Capture Configuration .. -
Page 6: Introduction
1. INTRODUCTION This HDMI to USB video capture recorder with HDMI bypass can support resolutions up to 18Gbps (600MHz) 4K UHD with HDR (via the bypass path) while simultaneously streaming the audio and video signal at 1080p to a USB connected PC for capture or re-broadcast. HDMI sources up to 1080p60 are supported for capture without modification, while 4K sources will be automatically scaled down to 1080p. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS • HDMI source equipment such as a media player, video game console or set-top box. • HDMI receiving equipment such as an HDTV, monitor or audio amplifier. • Personal computer (Windows or macOS) with a USB 3.0 port and plenty of available hard drive space. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel ACTIVE / POWER RECORD HDCP POWER LED: This LED will illuminate RED to indicate the unit is on and receiving power but does not yet have a live HDMI source. When a live HDMI source is detected, the LED will illuminate GREEN. ACTIVE/RECORD LED: When software on the connected PC is actively receiving video from the unit via USB, this LED will illuminate GREEN. -
Page 9: Rear Panel
6.2 Rear Panel USB 3.0 HDMI OUT HDMI IN AUDIO IN USB 3.0 PORT: Connect directly to a PC’s USB 3.0 port for control, video capture and power. Note: If connected via USB 2.0, use of a Y-cable connected to 2 USB 2.0 ports is required in order to properly power the unit. -
Page 10: Configuration And Video Capture
6.3 Configuration and Video Capture 6.3.1 Video Capture Configuration The USB Video Capture Control software provides control over a selection of basic functions of the unit, including: audio source, HDCP, video settings and volume. An option to return the unit to its factory defaults is also provided. - Page 11 Note: Disabling HDCP support may enable the recording of the output of some source devices (typically PCs/Macs) that enable HDCP encryption even when it is not required by the current video content. Once HDCP support is disabled on this unit, the connected device should automatically switch to a non-HDCP mode as long as the playing content allows it.
-
Page 12: Video Capture
6.3.2 Video Capture Video capture is accomplished using 3rd party software. The choice of video capture software is entirely up to the user. This unit adheres to the UAC (USB Audio Class) and UVC (USB Video Class) standards, allowing the unit to support most common video capture, chat, or streaming software, including support for the Free OBS (Open Broadcaster Software) streaming software, among many other choices. -
Page 13: Connection Diagram
7. CONNECTION DIAGRAM Game Console CD Player HDMI Stereo Input Input USB 3.0 HDMI OUT HDMI IN AUDIO IN USB 3.0 Equipped HDMI PC/Laptop Output UHDTV... -
Page 14: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps Input Ports 1×HDMI 1×Stereo (3.5mm) Output Ports 1×HDMI 1×USB 3.0 (Type-B) Power Supply Powered by USB ESD Protection Human Body Model: ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions 128mm×25mm×108mm (W×H×D) [Case Only] 128mm×25mm×117mm (W×H×D) [All Inclusive] Weight... -
Page 15: Video Specifications
8.2 Video Specifications Input Output HDMI Supported Resolutions (Hz) HDMI Bypass 720×400@85 720×480p@60 640×480@60/72/75/85 720×576p@50 800×600@56/60/72/75/85 1280×720@50/60 1024×768@60/70/75/85 1280×768@60/75 1360×768@60 1366×768@60 ... -
Page 16: Audio Specifications
Input Output HDMI Supported Resolutions (Hz) HDMI Bypass 3840×2160@50/60 (4:4:4) 3840×2160@50/60 (4:2:0) 4096×2160@24/25/30 4096×2160@50/60 (4:4:4) 4096×2160@50/60 (4:2:0) 8.3 Audio Specifications Analog Input Max Audio Level 2Vrms Impedance 10kΩ Type Unbalanced HDMI Input/Output LPCM Maximum Channels... -
Page 17: Cable Specifications
8.4 Cable Specifications 1080p 4K30 4K60 HDMI Cable Length 8-bit 12-bit 8-bit 8-bit Input Output 9. ACRONYMS ACRONYM COMPLETE TERM Analog-to-Digital Converter Display Data Channel Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range HDTV... - Page 20 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
