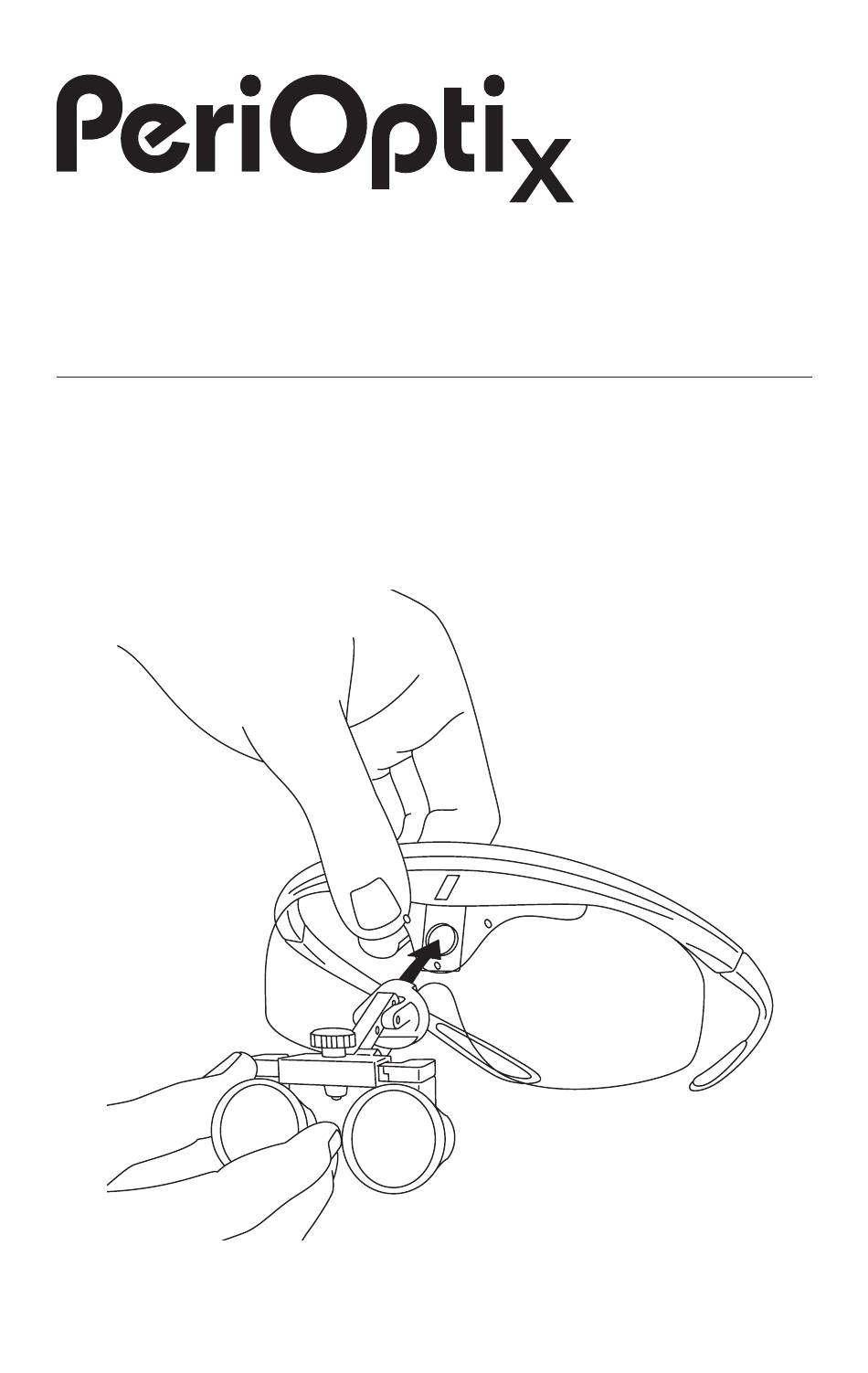

- Page 1 LED illumination Instructions, warranty and cleaning for PeriOptix loupe optics and Hogies frame. PeriOptix and Set and Forget are trademarks of PeriOptix, Inc. Hogies is a trademark of Martin Hogan, Pty Ltd.
- Page 2 Thank you for purchasing your loupe system from PeriOptix. To ensure the 2. Loupe Glossary optimal performance of your optics, please follow the set up directions below. A. Frame Temple 1. Contents B. Frame Magnet C. Loupe Hinge With Upper and Lower Pivot Joints Inspect contents.
- Page 3 4. Disassembly 3. Loupe Adjustments Your Hogies loupe system comes A. Declination angle assembled with the magnetic hinge B. Convergence angle securely attached to the magnet by C. Interpupillary Distance (distance between the pupils) two set screws. To remove the loupe optics from the magnet, first loosen the set screw(s) closest to the frame.
- Page 4 5. Assembly (continued) 6. Properly Wearing Loupes 5.3 Attach nosepiece ensuring the 6.0 The loupe optics should be worn center pin engages center hole of as close as possible to your eyes to nosepiece. achieve the greatest field of view and declination angle.
- Page 5 10. Adjusting IPD 12. Adjusting Convergence Angle 10.0 With the Perioptix “Set and Before adjusting the convergence Forget” feature, the only adjustment angle, set the IPD (see step 10). that is usually needed is to set the Then, follow the instructions in step IPD (Interpupillary Distance).
- Page 6 WATER OR LIQUID. For all other components such as the frames, nosepad and hinges, clean with an PeriOptix, Inc. warrants its products to be free of original defects in material and workmanship and to alcohol or disinfectant wipe. It is recommended that lens covers are used on the front of the loupes.
