Fisher-Price LEARNING PATTERNS Play Dome Instruction Sheet page 5

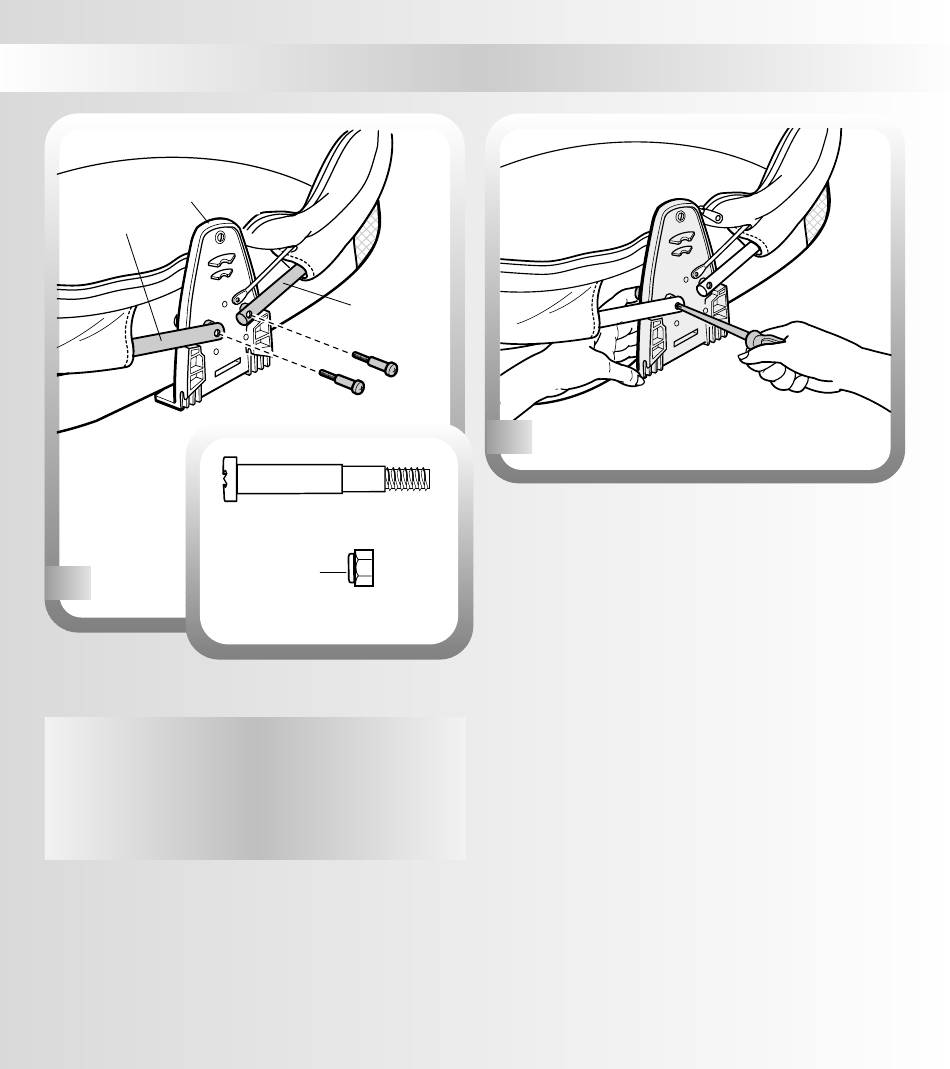

Assembly
Frame with
Lock Nuts
Frame Tube
4
• Insert an M5 x 1 5 / " screw through each frame tube and
8
into the middle hole in the frame with lock nuts.
Hint: Lock nuts have been factory assembled to the frame.
During shipment, the lock nuts may have fallen out of the
frame. If this has happened, please fit the lock nuts back into
the middle hexagonal holes in the frame, so that the rounded
side of the lock nuts face out. You may find it easier to access
the hexagonal opening on the back of the frame if you push
the base up, so that the fabric is out of the way.
Frame Tube
M5 x 1 5 / " Screw - 4
8
Rounded
Side
M5 Lock Nut (Inside Frame) - 4
Shown Actual Size
5
• Tighten the screws with a Phillips screwdriver. Do not
over-tighten.
• Repeat assembly steps 3 - 5 to attach the other ends of
the frame tubes to the frame on the other side of the base.
5
