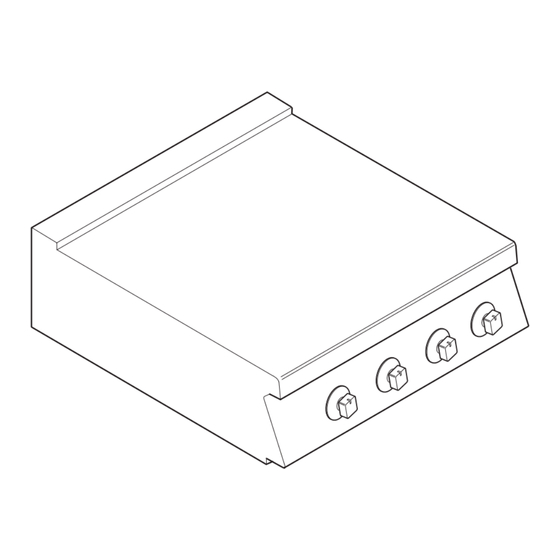

- Page 1 04/2010 Mod:E17/4ID8T Production code:178322...
-
Page 2: Table Of Contents
INDEX INSTALLATION DIAGRAM / COMBINING APPLIANCES / TABLES ..................2 II. DATAPLATE and TECHNICAL DATA ............................16 III. GENERAL INSTRUCTIONS ..............................17 IV. THE ENVIRONMENT ................................. 18 V. INSTALLATION ..................................18 1. REFERENCE STANDARDS ............................... 18 2. UNPACKING ....................................18 3. -
Page 3: Dataplate And Technical Data
II. DATAPLATE and TECHNICAL DATA IMPORTANT This manual contains information relevant to various appliances. See the appliance dataplate located under the control panel in order to identify the appliance (see fig. above). TABLE A - Electrical appliance technical data MODELS +I/Z1 +I/Z2 +I/E1... -
Page 4: General Instructions
III. GENERAL INSTRUCTIONS • Carefully read the instruction handbook before using the appliance. • After installation keep the instruction handbook for future consultation. • FIRE HAZARD - Keep the area around the appliance clear and free from combustible materials. Do not keep flammable materials in the vicinity of the appliance. -
Page 5: The Environment
IV. THE ENVIRONMENT V. INSTALLATION • Carefully read the installation and maintenance 1. PACKING procedures given in this instruction manual before Packing materials are environment friendly and installing appliance. can be stored without risk, or burned in a special • Installation, maintenance and conversion to waste incineration plant. -
Page 6: Connections
3.1. COMBINING APPLIANCES 4. CONNECTIONS • (Fig.1A) Undo the 4 fixing screws and remove the control • Any installation work or maintenance to the panels of the appliances. supply system (gas, electricity, water) must only • (Fig.1B) Remove the fixing screw nearest the control be carried out by the utility company or an panel, from each side to be joined. -
Page 7: Instructions For The User
2. INDUCTION COOKTOP USE VI. INSTRUCTIONS FOR The cooktop consists of a vitroceramic plate hermetically THE USER fixed to the chrome-nickel steel closed worktop. 2.1. CONTROLS 1. INFRARED COOKTOP USE The induction appliance has 2 or 4 independent round heating zones that can be adjusted separately. The electric •... - Page 8 2.2. CHOICE OF POTS 2.4. SAFETY INSTRUCTIONS The induction cooking system is equipped with a pot • The hot-plate cannot be cooled with water. Avoid recognition system. If the pot is removed from a turned on overflowing of pots on the hot-plate, e.g. when they are cooking zone, the latter switches off automatically.
-
Page 9: Electric Oven Use
3. ELECTRIC OVEN USE VII. CLEANING The heating elements are controlled by a 4-position selector knob “D”, whereas the oven temperature is controlled by a CAUTION! thermostat “E”. Before carrying out any cleaning operation, disconnect the The selector knob allows the most suitable type of heating appliance from the power supply. -
Page 10: Filters
3. FILTERS VIII. MAINTENANCE AIR FILTERS To avoid breakage and damaging the application, check and clean the filter at least once a month. This operation 1.MAINTENANCE must be carried out by an authorised technician (the filter is All the components requiring maintenance are accessible inside the appliance). -
Page 11: Fault Code Table
3. FAULT CODE TABLE Code = no. lamp Fault Actions short signals no fault, normal operation none no signal coil without current, overcurrent in hardware if the fault signal remains after repeated switching on: call customer service current too high in coil, overcurrent in if the fault signal remains after repeated software switching on: call customer service...
