Madetec Móveis Ltda.
Rua Rouxinol 5205 | Parque Industrial IV
CEP 86706-418 | Arapongas | PR | Brasil
www.madetec.com.br
Pessoas necessárias
para montagem
Parafusadeira ou chave de fenda e philips
CÓDIGO DE PEÇAS | CODE OF PIECES | CÓDIGO DE PIEZAS
2 0
3 4
7 8
203479
2 0
3 4
7 7
PEÇAS
REF.:
PIECE
PIEZA
203476 Base | Base | Base
203477 Rodapé
|
Footer
Bottom rail
|
203478 Lateral
|
Side
|
Lado
203479 Friso
|
Frieze
|
Friso
Tampo
Top
Tapa
|
|
*Dimensões em milimetros | Dimensions in millimeters | Dimensiones en milimetros
CUIDADOS ESPECIAIS | SPECIAL CARES | CUIDADOS ESPECIALES:
LIMPEZA: Pano limpo umedecido em água e sabão neutro - BRILHO: Flanela seca
CLEANING: Clean cloth humididfied in water and neutral soap - SHINE: Dry flannel
LIMPIEZA: Tela limpia humedecida en la agua y el jabón neutro - BRILLO: Franela seca
304 - MESA DE CENTRO FRIZZ

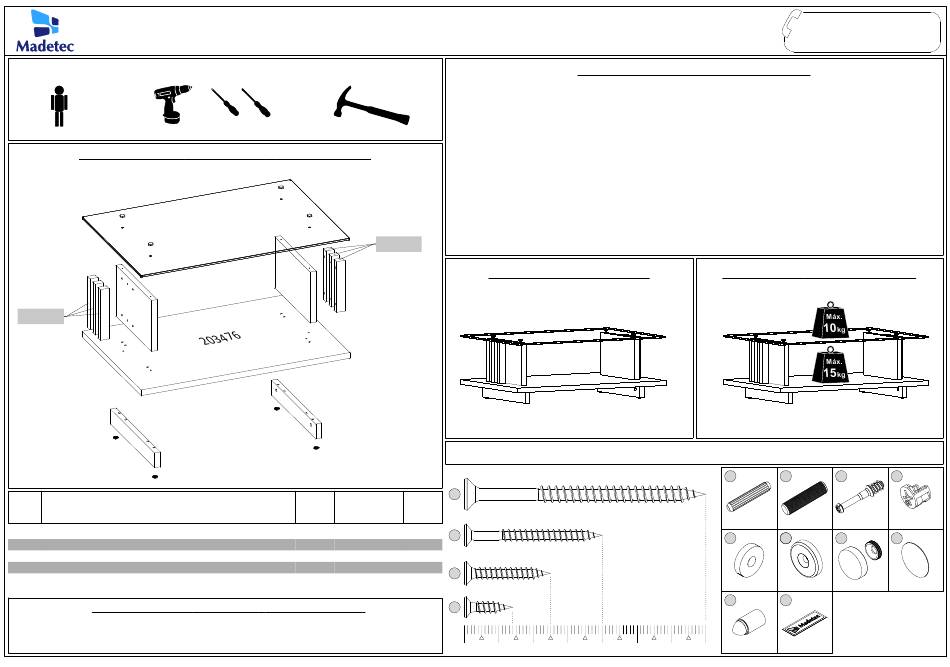

ESQUEMA DE MONTAGEM | ASSEMBLY INSTRUCTIONS | ESQUEMA DE MONTAJE
Ferramentas necessárias para montagem
(não fornecidas)
Martelo
203479
2 0
3 4
7 8
2 0
3 4
7 7
DIMENSÕES*
QUANT.
DIMENSIONS
DIMENSIONES
1
900 x 600 x 25
2
448 x 65 x 25
2
360 x 223 x 25
6
222 x 35 x 25
1
900 x 600 x 8
INSTRUÇÕES | INSTRUCTIONS | INSTRUCCIONES
- Prepare a montagem do móvel próximo ao local que ele ficará definitivamente e evite deslocá-lo depois de montado;
- Forre o chão com papelão ou similar e utilize a isomanta que vem entre as peças para evitar o contato entre elas durante a
montagem;
- Monte o móvel obedecendo a ordem numérica da
(C.P.)
carimbado na mesma, de acordo com a tabela.
- Prepare the assembly of the close piece of furniture to the place that it will be definitively and avoid to move after done. Will be
definitively and avoid to move after done;
- Cover the ground with cardboard or similar and use the isomanta that it comes among the pieces to avoid the contact among
them during the assembly;
- Set up the piece of furniture obeying the numeric order of the assembly sequence (S.M.), identifying the pieces by code of piece
(C.P.) stamped in the same, in agreement with the table.
- Prepare la montaje del mobiliario proximo al lugar que estará definitivamente y evite mover después de hecho;
- Tape la suelo con cartón o similar y use la "isomanta" que viene entre las piezas para evitar el contacto entre ellos durante la
montaje;
- Monte el mobiliario obedeciendo el orden numérico de la sucesión de montaje (S.M.), identificando las piezas por el código de
piezas (C.P.) de la misma estampado en esta, de acuerdo con la tabla .
ASPECTO FINAL | FINAL ASPECT
Dimensão do Produto:
0,900 m
ACESSÓRIOS | ACCESSORIES | ACESORIOS
Parafuso 5,0x70
A
MATÉRIA
PRIMA
Parafuso 3,5x40
MDP
B
MDP
MDP
Parafuso 3,5x25
4x
MDP
C
VIDRO
Parafuso 3,5x14
4x
D
cm
0
1
2
3
sequência de montagem (S.M)
, identificando as peças pelo
PESO INDICADO | INDICATED WEIGHT
0,325 m
0,600 m
4x
8x
E
2x
Cavilha 6x30
4x
i
Arruela
M
Giz p/ correção
4
5
6
7
Attendance to
Atendimento ao consumidor |
the consumer
Asistência al consumidor
|
3303 1800
tel
+55 43
fax
3303 1802
+55 43
madetec@madetec.com.br
código de peça
12x
4x
4x
F
G
H
Cavilha E 8x30
Pino girofix
Castanha girofix
4x
4x
4x
J
K
L
Sapata
Tampa cromada
Tapa furo adesivo
1x
N
Logomarca
Edição: 15/08/2019
