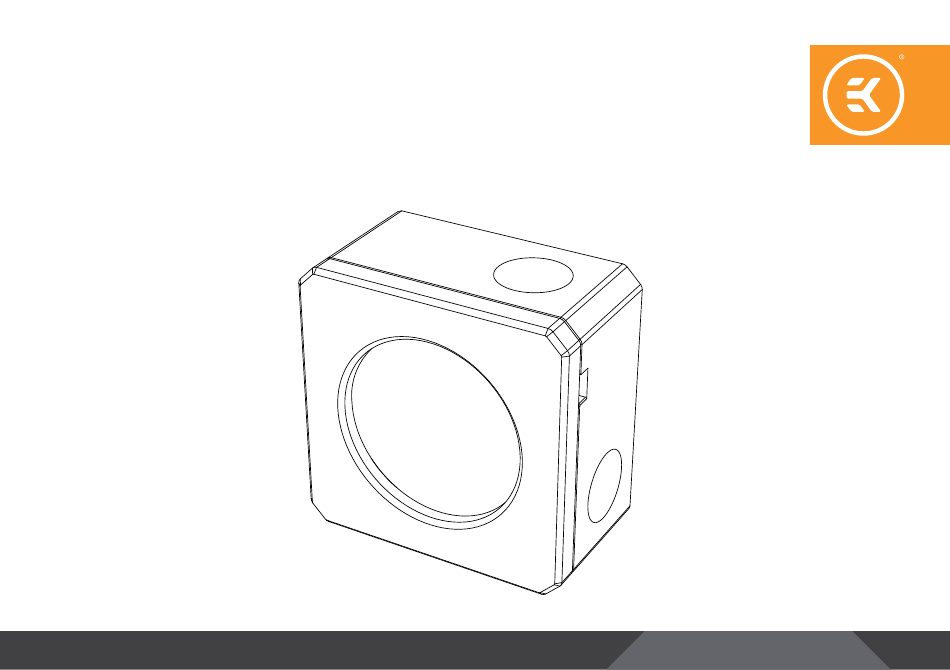

- Page 1 EK-Quantum Flow Indicator D-RGB INSTALLATION MANUAL 1st Revision, July 20, 2020...
- Page 2 The following instructions are subject to change without notice. Please visit our website at www.ekwb.com for updates. Before you start using this product, please follow these basic guidelines: Carefully read the manual before beginning with the installation process.
- Page 3 TABLE OF CONTENTS INSTALLING THE EK-QUANTUM FLOW INDICATOR D-RGB CONNECTING THE D-RGB LED STRIP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -...
- Page 4 INSTALLING THE EK-QUANTUM FLOW INDICATOR D-RGB Mounting of the Flow Indicator is possible anywhere in the loop. 1st Installation Method Any port can be used as an INLET or OUTLET port. The remaining unused port MUST be closed with an ordinary or a thermal sensor plug (which will measure the coolant temperature and seal the loop).
- Page 5 CONNECTING THE D-RGB LED STRIP Connect the 3-pin D-RGB LED connector from your Flow Indicator to the D-RGB header on your motherboard or controller. The lights will work if the pin layout on the header is as follows: +5V, Data, Empty, Ground.
- Page 6 SUPPORT AND SERVICE In case you need assistance, please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
