Westell DTWA-K04 Series Manual

4-position pre-wired mounting kit

Advertisement

Quick Links

R
CONTENTS
1. GENERAL
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. APPLICATIONS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.
GENERAL
1.1
Document Purpose
This document describes the Westell DTWAK04 Series, shown
in Figure 1. This series of mounting kits are pre-wired wall-
mountable kits equipped with a Westell 4-slot mounting and a
66-type punch-down block or terminal block for making facility-
side and customer-side wiring connections.
- NOTE -
Hereafter, the DTWAK04 will be referred to as the "K04".
1.2
Document Status
This document is being updated to correct a labeling error in
Figure 6, on page 11. The Circuit 1 label was printing over the
Circuit 2 label.
Whenever this practice is updated, the reason will be stated in
this paragraph.
1.3
Product Mounting
The K04 is typically mounted on a wall or equipement back-
board. This mounting enclosure is suitable for mounting on
concrete or other noncombustible surfaces only.
1.4
Product Features
The K04 offers the following features.
Quick Installation
S
ECopyright 2006 EWestell, Inc. All rights reserved. Printed in the United States of America.
*CLEI is a trademark of Telcordia Technologies. Westellr is a trademark of Westell, Inc.
Westell Model DTWA-K04 Series
4-Position Pre-Wired Mounting Kit
PAGE #
. . . . . . . . . . . . .
. . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
1
1
1
3
3
3
3

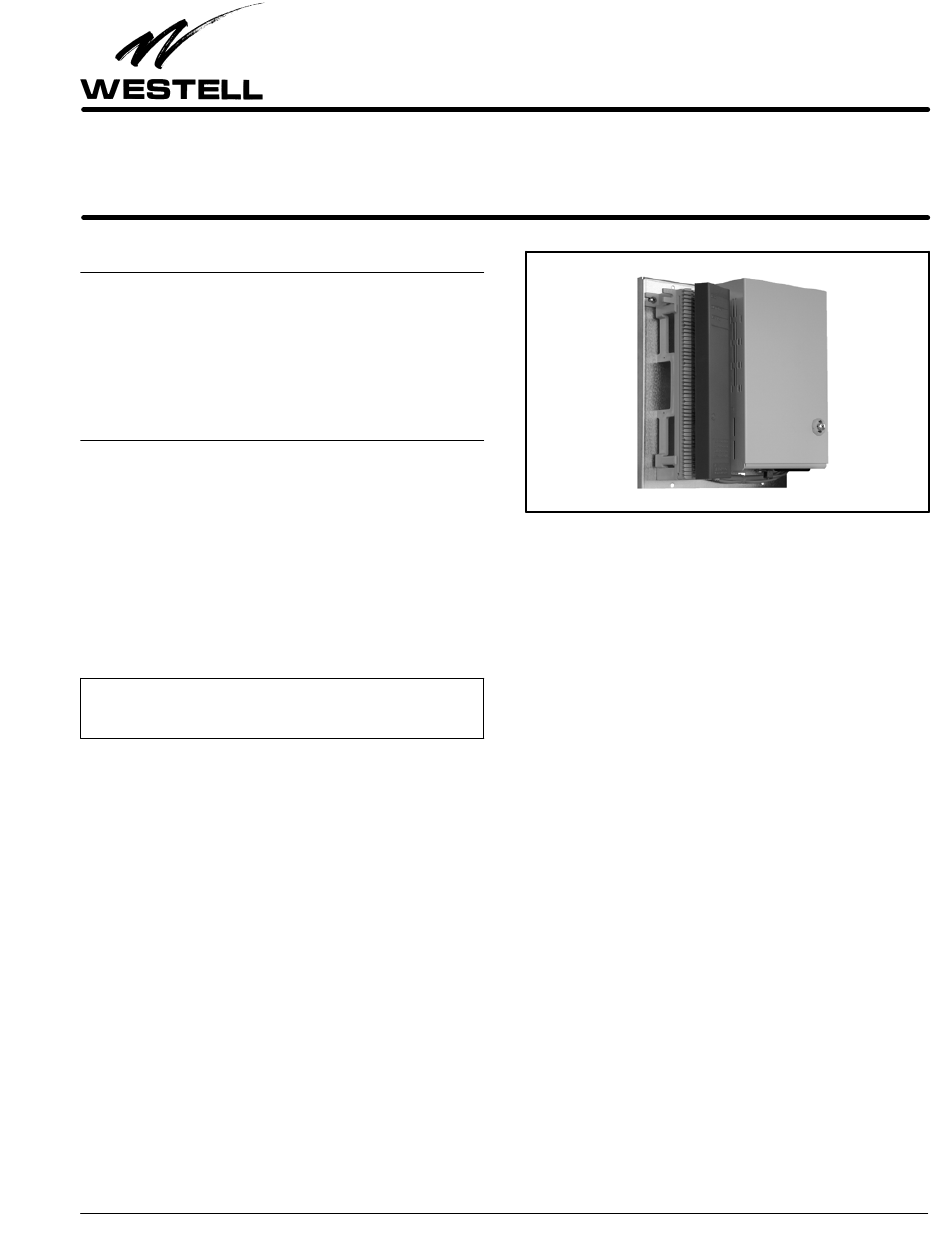

Figure 1.
Front View of DTWAK04 Pre-Wired
Mounting Kit
Pre-wired-mountable package with backplate, mounting
S
assembly and wiring block
Bridging clips on both the Network and Customer side of
S
the 66 block or Krone block (List 1, 4, 7 or 8)
Optional primary lightning protection (List 5)
S
Easy access to the plug-in modules
S
Meets UL1950 requirements
S
Meets NEBS Level 3 requirements
S
2.
APPLICATIONS
The K04 will accommodate up to four 200 MECHANICSr-type
modules or up to two 400-type HDSL, DS1, Analog, Data and/or
DDS-type circuits.
3.

INSTALLATION

Installation consists of inspecting the equipment for damage,
following proper safety precautions. Mounting hardware to
install this assembly to a wall or backboard is included. The as-
sembly should be installed so that the 4-slot mounting is in an
upright (vertical) position. The assembly should be located in an
area that provides enough room and adequate lighting. Stan-
dard hand tools are required to install the K04.
Section DTW-AK0-400-201
Equipment Issue 1
030-101586 Rev. B, June 2006
Page 1 of 14

Advertisement

loading
Need help?

Need help?

Do you have a question about the DTWA-K04 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Westell DTWA-K04 Series

  • Page 1: Table Of Contents

    K04. ECopyright 2006 EWestell, Inc. All rights reserved. Printed in the United States of America. *CLEI is a trademark of Telcordia Technologies. Westellr is a trademark of Westell, Inc. Page 1 of 14...
  • Page 2 If the equipment has Portable hand drill and proper size drill bits been damaged in transit, immediately report the extent of the damage to the transportation company and to Westell (see Part 6 for telephone number). Mounting the Assembly 3.2.1...
  • Page 3: Testing & Troubleshooting

    8). Warranty Module Installation Westell warrants this product to be free of defects at the time of When all wiring is completed and secured, the module(s) may be shipment. Westell also warrants this product to be fully function- installed inside the assembly cover. Refer to the appropriate al for the time period specified by the terms and conditions practice for optioning and testing information for each module.
  • Page 4 Section DTW-AK0-400-201 030-101586 Rev. B Electrical and Physical Specifications Model # Description DTWAK04 4-Position Pre-Wired Mounting Kit CLEI* Code: Pending. Barcode: Pending. ECI: Pending. DTWAK04L1 Non-locking cover and no jacks, wired to 66-type block The electrical and signalling specifications are listed below, and CLEI* Code: VAM7AA0ARA.
  • Page 5 Section DTW-AK0-400-201 030-101586 Rev. B DTWAK04L5 DTWAK04L4 DTWAK04L7 DTWAK04L8 Figure 2. DTWAK04 Assemblies...
  • Page 6 Section DTW-AK0-400-201 030-101586 Rev. B DTWAK04 (List Option 1) Mounting Hole top side of mounting Circuit #1 Circuit #2 Circuit #3 DTWA528-04 Mounting Assembly Circuit #4 Circuit Circuit #2 Circuit #3 Circuit #4 Ground Mounting Holes Figure 3. DTWAK04 Wiring, List Option 1...
  • Page 7 Section DTW-AK0-400-201 030-101586 Rev. B COLOR CODE LEAD 66 BLOCK COLOR CODE LEAD 66 BLOCK W/BL W/BL BL/W BL/W Circuit #1 Circuit #1 Circuit #2 Circuit #2 W/BR W/BR BR/W BR/W W/BL W/BL BL/W BL/W Circuit #3 Circuit #3 Circuit #4 Circuit #4 W/BR W/BR...
  • Page 8 Section DTW-AK0-400-201 030-101586 Rev. B DTWAK04 (List Option 4) Mounting Hole top side of mounting Circuit #1 Circuit #2 Circuit #3 DTWA528-04 Mounting Assembly Circuit #4 Ground Mounting Holes CKT. 1 Figure 4. DTWAK04 Wiring, List Option 4...
  • Page 9 Section DTW-AK0-400-201 030-101586 Rev. B COLOR CODE LEAD 66 BLOCK W/BL BL/W Circuit #1 Circuit #2 W/BR BR/W W/BL BL/W Circuit #3 Circuit #4 W/BR BR/W Table 5. Network-side Connections (List 3) - NOTE - Customer-side wiring connections are made via RJ jacks on the mounting...
  • Page 10 Section DTW-AK0-400-201 030-101586 Rev. B DTWAK04 (List Option 5) Mounting Hole top side of mounting Circuit #1 Circuit #2 Circuit #3 DTWA528-04 Mounting Assembly Circuit #4 Circuit #1 Circuit #2 Circuit #3 Circuit #4 Mounting Hole Ground Ground Mounting Hole Post Sockets For 5-Pin--type Protectors (2 Protectors Required Per Circuit)
  • Page 11 Section DTW-AK0-400-201 030-101586 Rev. B DTWAK04 (List Option 7) Mounting Hole top side of mounting Circuit #1 Circuit #2 Circuit #3 Circuit #4 DTWA528-04 Mounting Assembly NOTE Circuit #1 Slide Switches, located inside the DTWA528-04, MUST be set in the RJ48C or RJ48S Circuit #2 Position Circuit #3...
  • Page 12 Section DTW-AK0-400-201 030-101586 Rev. B COLOR LEAD LEAD COLOR CODE LEAD 66 BLOCK RJ PIN # 66 BLOCK CODE RJ48C RJ48S W/BL W/BL BL/W Circuit #1 BL/W Circuit #1 Circuit #1 W/BR Circuit #2 W/BR BR/W BR/W W/BL W/BL BL/W BL/W Circuit #3 Circuit #2...
  • Page 13 Section DTW-AK0-400-201 030-101586 Rev. B DTWAK04 (List Option 8) Gnd Lug Gnd Lug Circuit Mounting Hole Mounting Hole Circuit #2 Circuit #3 Circuit #4 Circuit Circuit #2 Circuit #3 Gnd Lug Circuit #4 ESD Jack Mounting Hole Mounting Hole Figure 7. DTWAK04 Wiring, List Option 8...
  • Page 14 Section DTW-AK0-400-201 030-101586 Rev. B COLOR LEAD LEAD COLOR CODE LEAD 66 BLOCK RJ PIN # 66 BLOCK CODE RJ48C RJ48S W/BL W/BL BL/W Circuit #1 BL/W Circuit #1 Circuit #1 W/BR Circuit #2 W/BR BR/W BR/W W/BL W/BL BL/W BL/W Circuit #3 Circuit #2...
