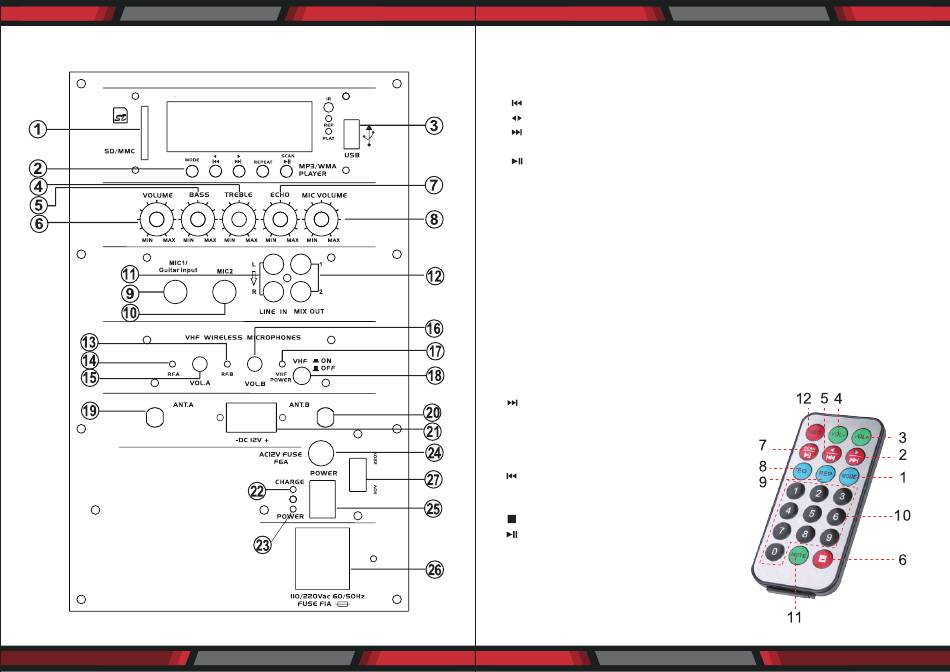

Controls and Connections
4
www.PyleUSA.com
1. SD/MMC card input
2. MP3 control
MODE: USB/SD/FM/BT converter
: Previous songs
: PRE/NEXT under FM model
: Next songs
REPEAT: Repeat all/Random/Repeat one
: Play/Pause
SCAN: Auto search under FM radio
REC: Recording
3. USB input (mp3/wma)
4. Treble control
5. Bass control
6. Output level control
7. Echo control
8. Mic input level control
9. Guitar input/6.35mic 1 input
10. 6.35mm mic 2 input
11. RCA Phono (R+L) Iine input
12. 6.35mm line output
Remote Control
1. MODE: USB/SD/BT/FM CONVERTER
: when USB/SD: Previous Song,
2.
Press and hold for fast rewind
when FM: Swich to backward
3. VOL+: Increase volume
4. VOL-: Decresse volume
5. : when USB/SD: next Song,
Press and hold for fast forward
when FM: swich to next channel
6. : Stop. Switch the MP3 player off.
/SCAN: Play/Pause
7.
When FM: Auto search
8. EQ: NORMAL, ROCK, POP, CLASS, JAZZ.
9. REP: Short press: Random/Single/Order
10. 0-9: Choosing music by numbers
11. MUTE: Mute the sound of the MP3 player
12. REC: Record
13. Wireless microphone B
channel Indicator
14. Wireless microphone A
channel indicator
15. A channel volume control
16. 8 channel volume control
17. Wireless power indicator
18. Wireless mic power switch
19. Wireless microphone A
channel receiving antenna
20. Wireless microphone B
channel receiving antenna
21. DC power interface
22. Charging indicator
23. Power indicator
24. Fuse socket
25. Main power switch
26. Fused IEC main inlet
27. 110/220V switch
