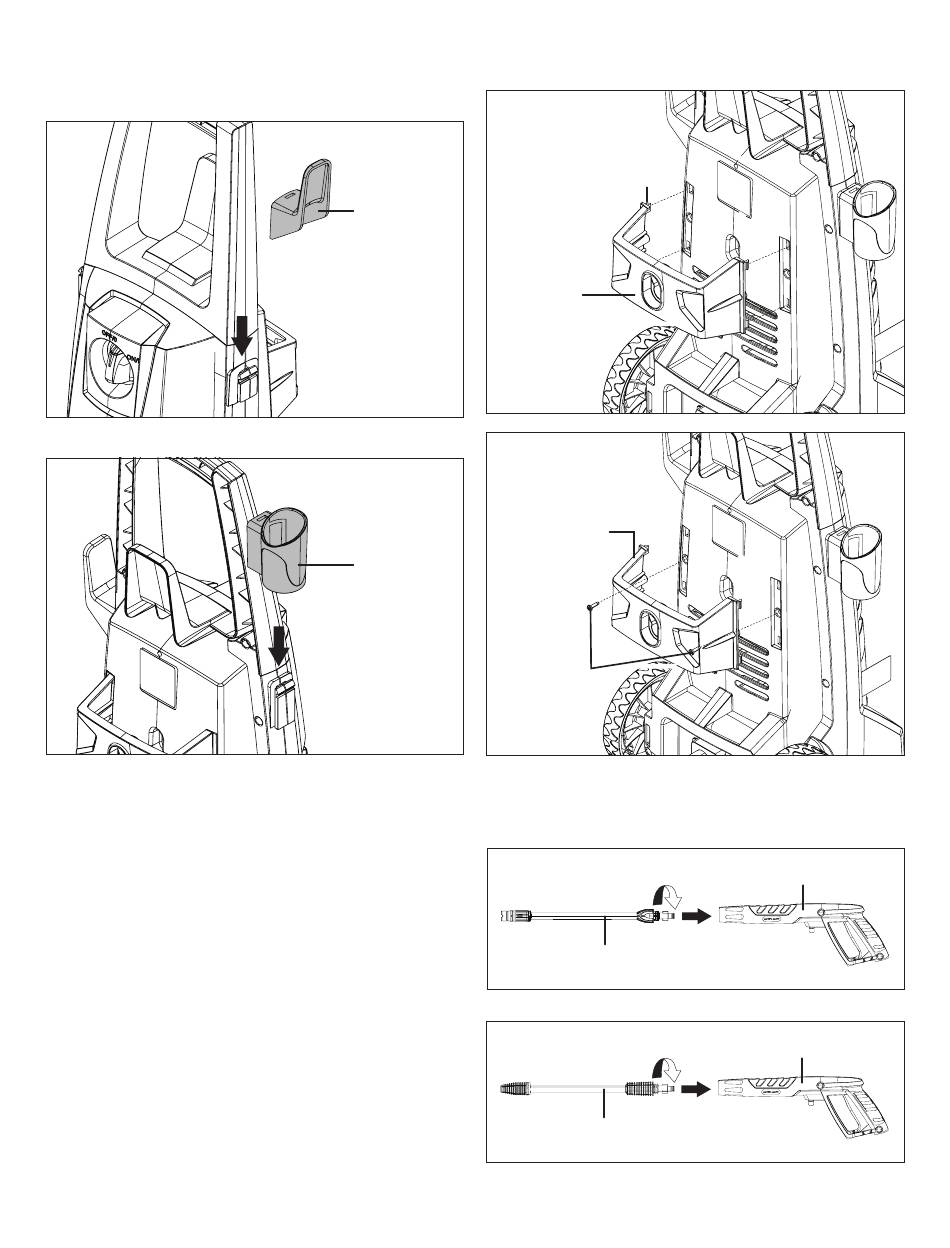

3. Slide the hose/cord holder into position (Fig. 3).
Fig. 3
4. Slide the trigger gun holder into position (Fig. 4).
Fig. 4
5. Fit the 4 small tabs on the rear compartment into the
holes in the back of the machine. Push inside until the
rear compartment clicks in. Fix the assembly with the two
small Phillips head screws (Figs. 5 – 6).
Fig. 5
Hose/
cord holder
Rear
compartment
Fig. 6
Rear
compartment
Trigger gun
holder
Small Phillips
head screws
6. Fit the jet lance or turbo lance into the trigger gun and
rotate until the two parts are completely locked
(Figs. 7 – 8).
Fig. 7
Fig. 8
8
Insert the tab
into the hole
Jet lance
Turbo lance
Trigger gun
Trigger gun
