Wi-Fi IP CAMERA
OPERATION GUIDE
www.alptopsecurity.com
support@alptopsecurity.com
Apply for Model: AT-100BW/200BW/500BW,AT-200DW/PW/TW,AT-500PW/20
Note: Due to the continuous updating of the product and software, there may be a discrepancy between the
operating guide and the APP interface. All the instructions are subject to the actual operation interface.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-100BW and is the answer not in the manual?

Questions and answers

Related Manuals for Alptop Security AT-100BW

Summary of Contents for Alptop Security AT-100BW

  • Page 1 Apply for Model: AT-100BW/200BW/500BW,AT-200DW/PW/TW,AT-500PW/20 Note: Due to the continuous updating of the product and software, there may be a discrepancy between the operating guide and the APP interface. All the instructions are subject to the actual operation interface.

  • Page 2: Table Of Contents

    Contents 1. Introduction..............................- 3 - 2. Installation..............................- 4 - 3. SD Card Slot..............................- 5 - 4. APP Download..............................- 6 - Accessing via Camhipro APP ........................- 7 - 5.1 LAN Mode Configuration..........................- 7 - 5.2 AP Mode Configuration(For IOS Device) ....................- 8 - AP Mode Configuration(For Andriod) .....................10 5.4 APP Function Introduction.........................12...

  • Page 3: Introduction

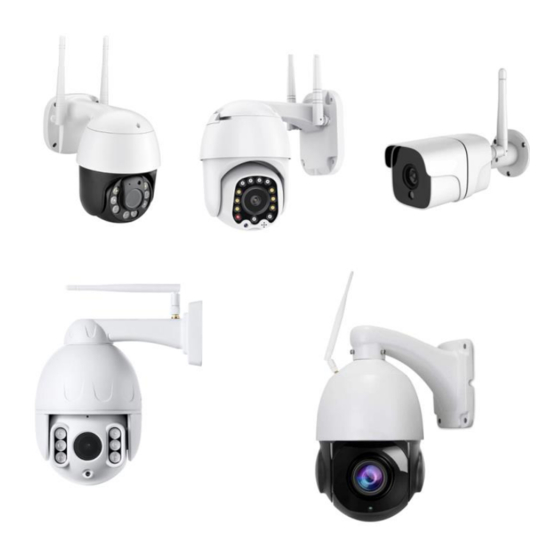

    1. Introduction Thanks for buying Wi-Fi IP Camera. We provide IP cameras which has different appearance and function. We follow the people-oriented design philosophy, these five cameras will be easily able to integrate into our daily lives, both in terms of appearance and function.

  • Page 4: Installation

    2. Installation the image is only a reference...

  • Page 5: Sd Card Slot

    3. SD Card Slot the image is only a reference...

  • Page 6: App Download

    4. APP Download Download APP “CamHipro” from Google Play or Apple Store, or scan the QR Code to install.

  • Page 7: Accessing Via Camhipro App

    5. Accessing via Camhipro APP There are 2 methods to configure WiFi connection with the CamHipro APP. A.LAN Mode Configuration:The camera needs to be connected to the router with a network cable. The network cable can be pulled off after the WiFi connection is completed. B.AP Mode Configuration :The camera does not need to be connected to the router with a network cable Please choose either of the two methods to configure your camera.

  • Page 8: Ap Mode Configuration(For Ios Device)

    Tap 'Add to'. Note: The default user name and password are both set as admin Choose WiFi name and input your WiFi password, and tap "Configure wireless and add'. Note:only 2.4ghz WiFi is supported. Select or set a name for your camera, then tap 'confirm'. Then you can remove the ethernet cable and choose a location within your local WiFi range to install the camera.
  • Page 9 Wait for about 30s, Please kindly click ‘Setting’ on your phone - Click ‘WLAN’ - Choose the WLAN with the name starts with ‘IPCAM-XXXXXX’ - Insert the default password ‘01234567’ - Click ‘Connect’. And your phone has been connected the the camera's Wi-Fi Hotspot now. Note: Name of SSID: IPCAM-XXXXXX Default password: 01234567...

  • Page 10: Ap Mode Configuration(For Andriod)

    8.Tap “ADD TO”. 9.Choose 2.4ghz WiFi name and input your WiFi password, tap " Configure wireless add directly” 10.Select or set a name for your camera, then tap 'confirm'. The device has been added successfully.You can tap confirm and go into camera interface. 5.3 AP Mode Configuration (Connect Hot-Spot) For Android device When there is no visible router with network cable port for configuration, please apply the AP mode to configure the camera with your local WiFi network.
  • Page 11 Tap “power is on,next step” Tap "Not connected to network cable' Go to AP distribution network equipment and Tap "Go add' Input password:01234567,Tap “GO TO CONNECT”. Tap “ADD TO”, The default username and password are both set as admin. Select your home 2.4ghz WiFi and input the WiFi password, tap "Configured wireless and add” After configuration, you can view the real-time video and install the camera at a location within your local WiFi range.

  • Page 12: App Function Introduction

    5.4 APP Function Introduction 5.4.1 Camera Interface introduce 5.4.2 SD Card Setting a. Click icon,go to the camera setting page. b. Please click ‘SD Card Setting’ on the main menu interface. And then you can check the storage space information of the SD card. Or Format the SD card. Please remember to back up the data before formatting the SD card.

  • Page 13: Time Setting

    Time Setting 5.4.3 a. Click icon,go to the camera setting page. b. Please click ‘Device Time Setting’ on the main menu interface. And then you can click on ‘Sync phone time to device’ to make the device time zone the same as your phone’s time setting. And you need choose to set up ‘Device Time Zone’...

  • Page 14: Record To Sd Card Setting

    5.4.5 Record to SD Card Setting Alarm Recording to SD Card Set-up 5.4.5.1 Go to setting - ‘Alarm management and notification’ page, enable ‘Motion detection alarm’ and ‘Alarm recording to SD card’. Note: Please activate the audio icon if you need records with audio. Playback and Download Alarm Recordings saved on the micro SD card icon,Go to ‘Recordings’...

  • Page 15: Schedule Recording To Sd Setup

    e.After downloading a recording file, you can tap ‘Go to view’ to view the recording. after downloading a recording file. You can also tap to view the recording f. Go to the recording file folder to check the downloaded recordings. Choose ‘Video’ on the top.
  • Page 16 Note:if you just need alarm recordings in your SD card,please don’t enable record on SD card plan recording. Playback and Download Schedule Recordings saved on the micro SD card icon,Go to ‘Recordings’ page. Click There have two ways to view recordings.Time playback and File playback. Here you will be able to see the latest plan recording, please check the red font, a video file named “Plan recording”.

  • Page 17: Watch And Playback The Local Recordin G

    e. Go to the recording file folder to check the downloaded recordings. Choose ‘Video’ on the top. The remote recording and local manual recording will be saved here. Please choose “remote download” and you will find downloaded plan recordings. h. If you want to convert the video format to MP4 format, please kindly follow the image instruction.Click “...

  • Page 18: Pre-Set Points

    5.4.7 Pre-set point Click the camera into real-time monitor, turn to next page.you can set the preset position 5.4.8 Night Vision Mode Switch (AT-200PW/500PW don’t support color night vision function)

  • Page 19: How To Share Your Camera With More Phone Users

    5.4.9 How to Share Your Camera with More Phone Users When you can use your camera properly. You can start to share your camera to your friends or family members. a. Return to the main interface of the camera, you will see the camera's UID: SSSS-398998-BBFDA. As shown below, Each camera has a different UID.

  • Page 20: Email Setting

    5.4.10 E-mail setting Take gmail as an example, SMTP server: smtp.gmail.com OR PING this domain address smtp.gmail.com,Then enter the IP address of PING in SMTP server. Server Port: 465, Safe link: SSL Authentication: default(on) User name: Your sender email address Password: Gmail login password Send To: Mail address for receiving notification (Can be the same as Sender’s also).

  • Page 21: Accessing Via Web Browser

    6. Computer Browsing Access 6.1 Search IP Camera Go to our website www.alptopsecurity.com –Go to SUPPORT----AT-100BW/200BW/500BW,AT-200PW/DW/TW,AT- 500PW/DW/TW—Software---download the search tool. Open the file and install search tool in your computer. Click “next” to find IP camera. You can select Network Card to search IP Camera.

  • Page 22: Parameter Settings

    Local manual recording. Video Recording playback: Click the playback, select the date and time, select the local playback or SD card playback, search the video files and double click on the file to play. PTZ control operation interface, control the camera to rotate horizontally and vertically.

  • Page 23: SettingNetwork

    Video: Set the video format, video coding, resolution, bit rate, max frame rate, key frame interval, bit rate control and image quality. OSD Set: Set time stamp, time show, camera name and name show in this interface. Image: Adjust the brightness, saturation, contrast, exposure parameter and set the WDR, Aemode, Imgmode, Intelligent night mode, IR LED Control, IRCut in this interface.

  • Page 24: SettingAlarm

    6.4.3 SettingAlarm Audio alarm: Enable this function. Need to connect a buzzer, turn on & adjust the volume, audio alarm can work well. Motion detection: There are 4 windows selections under Motion Detection. Select different windows to display different window positions. Drag the selected window to enlarge the window proportion.

  • Page 25: Settings System

    Timed record: Set the Record files duration, whether to open Record and stream. Email Setting: FTP Setting: Terminal: Set the cruise laps, select the centred while self-check on/off, close the alarm PTZ movement on/off and indicator display mode. 485Set: These cameras can’t support RS485. Multiple setting: In the same LAN, two or more of this series products from our company's, can be displayed on the same page via this Multiple Setting.

  • Page 26: Accessing Via Client Software (Hip2P Client)

    7. Video Management Software (HIP2P Client) Using Video Management software to view multiple cameras at the same time 7.1 Software installation Go to our website www.alptopsecurity.com –Go to SUPPORT----AT-100BW/200BW/500BW,AT-200PW/DW/TW,AT- 500PW/DW/TW—Software---download the HIP2P Client Software.. 7.2 Add Camera A） Open the software, click...
  • Page 27 B） Click to Set an Area name (Like: office / home / factory……), you also can modify and delete Area as picture showing below. C） Click “Search” to find IP Camera in the LAN, Select the camera click “add” to Add camera.
  • Page 28 D） Double Click camera’s UID to modify camera’s password. E） Click Back to preview screen, Double-click the camera name in the device list to preview the screen in real time.

  • Page 29: Delete Camera

    7.3 Delete camera Please right click camera UID,click disconnect device. Then enter setting menue,choose camers UID which you want to delete.Click delete device.

  • Page 30: Frequently Asked Questions

    Frequently Asked Questions Q1: Remote viewing, appear pause and delay phenomenon? A:1) Related to network data, it is recommended to adjust the HD mode to Smooth mode when watching, and the video file is still saved in HD mode. 2) Try to reduce the camera stream when view the video, reducing the stream may affect the quality of the image. 3) Remote viewing, the network recommends uploading network data up to 512KB/S.
  • Page 31 Q10: RTSP Path Example A: rtsp：//192.168.1.100：554/11 Q11: WBE browsing plug-in installation problem A: Web page online download plug-in component: ActiveX Q12: Third party software: iSpy Software operation A: iSpy Add camera selection: Open the software click add object, Select the IP photographer, Click ONVIF to enter the user name and password.
