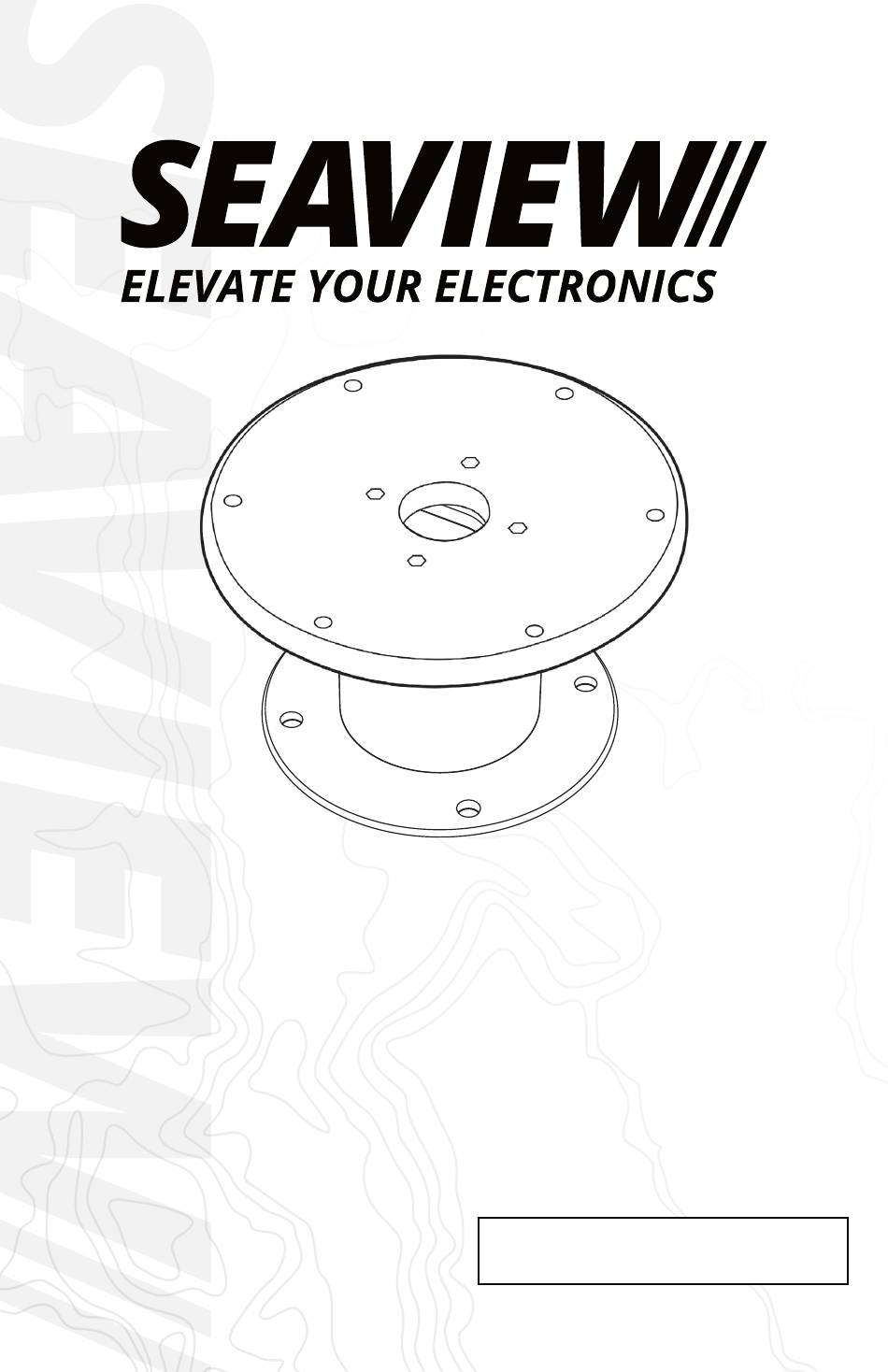

- Page 1 INSTALLATION INSTRUCTIONS For Seaview Camera Mount: PM5FM38 Refer to website for most up to date instructions and videos. WWW.SEAVIEWGLOBAL.COM...
- Page 2 PARTS INCLUDED TOOLS NEEDED...
- Page 3 Mark the four holes for the base. Drill the four holes for the base. Using a hole saw, cut a hole for the electronics cable.
- Page 4 Refer to FLIR instructions on how to bolt them together. Insert the four nuts into the top plate of the PM5FM38. Note, this may have already been done for you. Place the top mounting plate onto the PM5FM38. Be sure that the four mounting holes are lined up.
- Page 5 Place the camera on top of the mounting plate, making sure to line up the six mounting holes. Screw the adapter plate to the PM5FM38 using the six 1/4-20 x 1 3/8” bolts with an allen wrench...
- Page 6 Apply marine adhesive sealant around the bottom of the mount. Be sure to go around the bolt holes. Place the mount onto the mounting surface. Insert the four nylon washers into the base bolt holes. Apply marine adhesive sealant around the nylon washers.
- Page 7 EUROPEAN OFFICE Tel: 800-655-7922 Tel: +33 4 94 53 27 70 www.seaviewglobal.com www.seaviewprogress.com...
