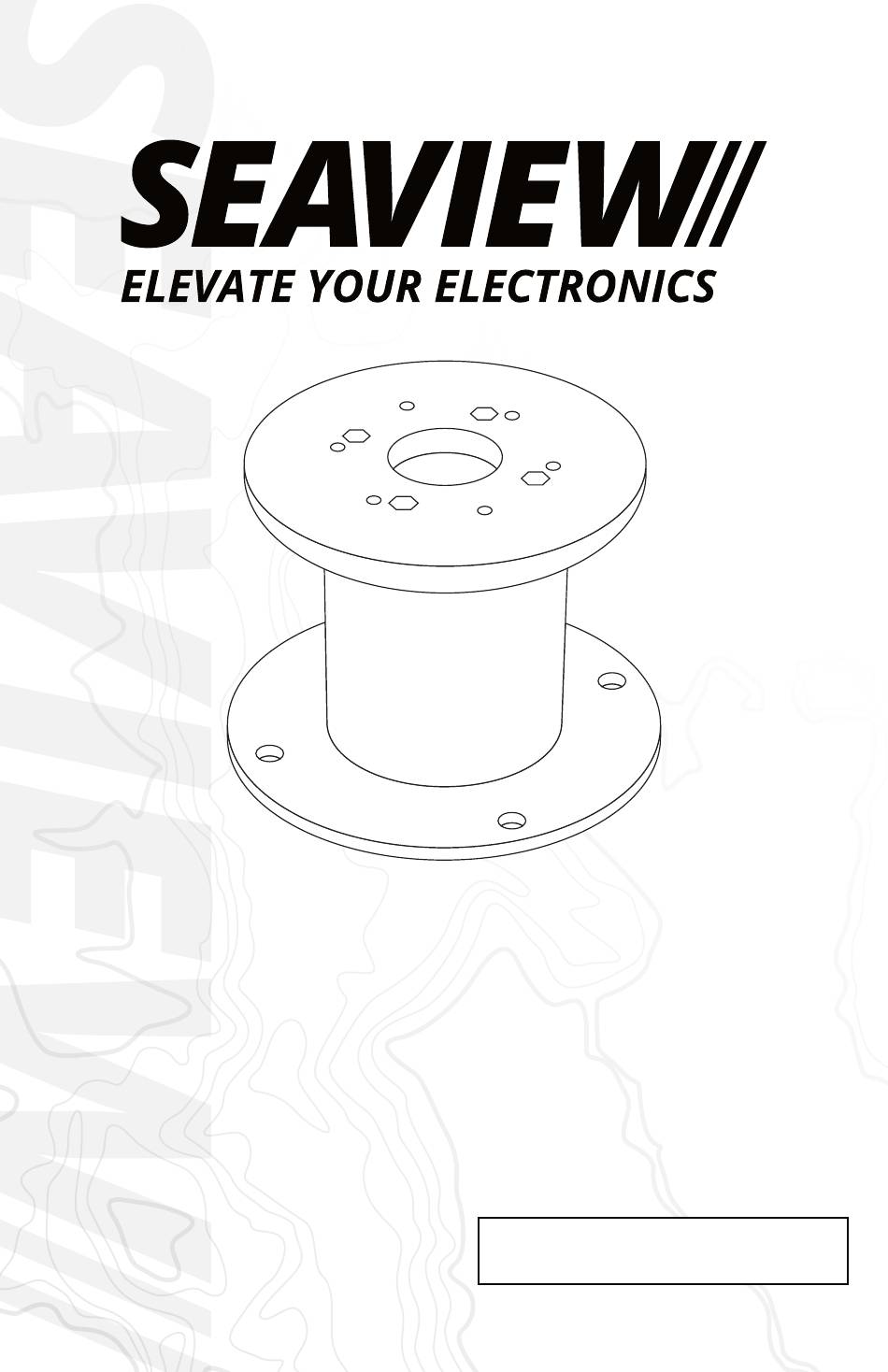

- Page 1 INSTALLATION INSTRUCTIONS For Seaview Camera Mount: PM5-FMT-8 Refer to website for most up to date instructions and videos. WWW.SEAVIEWGLOBAL.COM...
- Page 2 PARTS INCLUDED TOOLS NEEDED Sudbury Elastomeric Marine Sealant is recommended. To purchase call 800-655-7922 or visit www.seaviewglobal.com...
- Page 3 Mark the four base holes for drilling. Drill the four holes. Using a hole saw, drill a hole for the cable.
- Page 4 Note that this may have already been done for you. Route the cables through the adapter plate and secure the camera to the adapter plate using the provided six M6x12 bolts. Route the cables and place the assembly onto the PM5-FMT-8 mount.
- Page 5 Secure the assembly using the provided four washers and 1/4-20x7/8” bolts. Apply marine adhesive sealant to the base of the mount.
- Page 6 Route the cables through the mounting surface and place mount onto surface. Apply marine adhesive sealant to the four nylon shoulder washers and insert into the four bolt holes on the base. Use your own hardware to secure mount into place.
- Page 7 This page is intentionally left blank.
- Page 8 EUROPEAN OFFICE Tel: 800-655-7922 Tel: +33 4 94 53 27 70 www.seaviewglobal.com www.seaviewprogress.com...
