Summary of Contents for HMS Networks Anybus SP2555

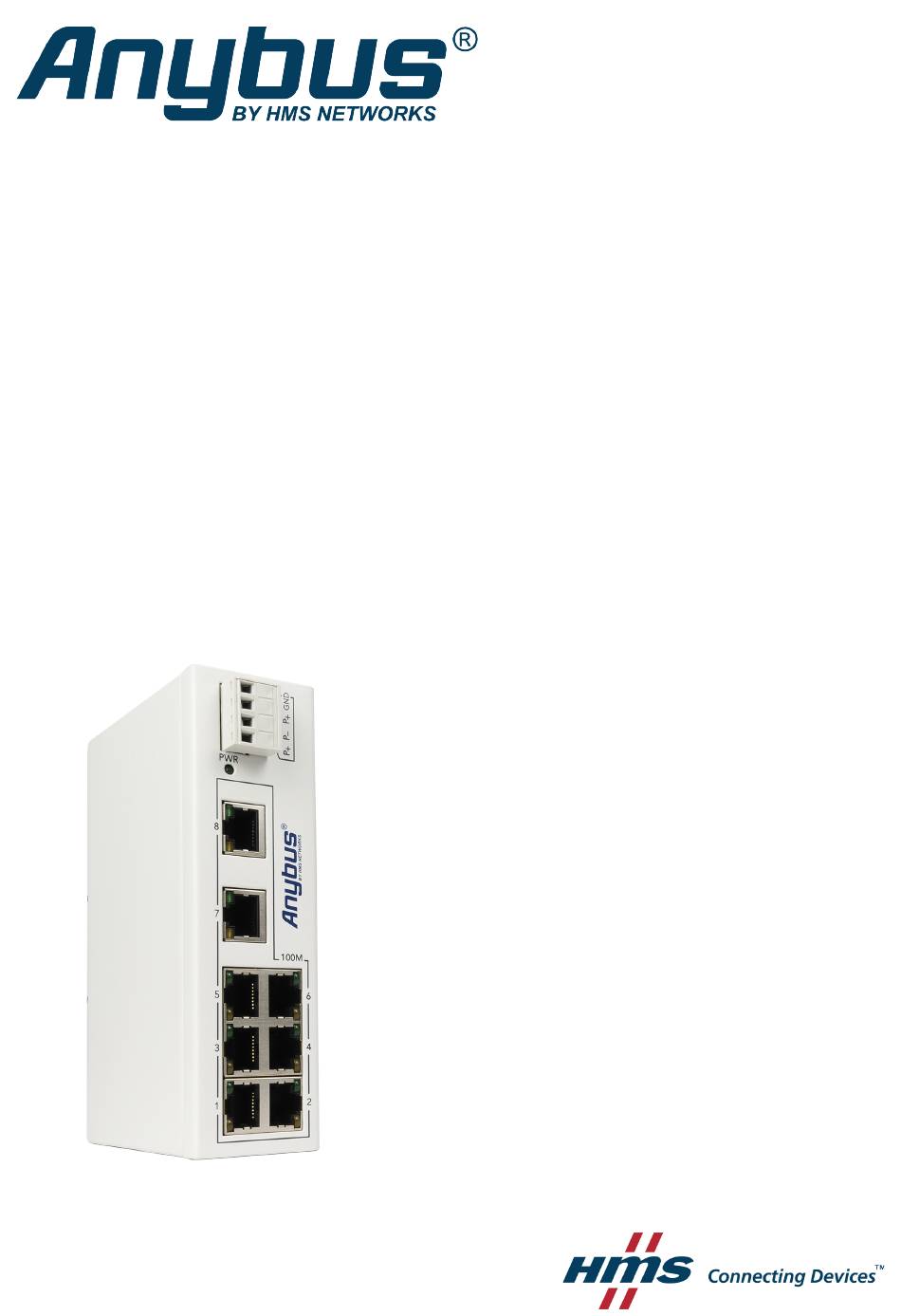

- Page 1 ® Anybus Unmanaged Industrial L2 Switch STARTUP GUIDE SP2555 1.1 en-US ENGLISH...
- Page 2 Important User Information Disclaimer The information in this document is for informational purposes only. Please inform HMS Industrial Networks of any inaccuracies or omissions found in this document. HMS Industrial Networks disclaims any responsibility or liability for any errors that may appear in this document. HMS Industrial Networks reserves the right to modify its products in line with its policy of continuous product development.
-
Page 3: Table Of Contents
Table of Contents Page Preface ..............3 About This Document . - Page 4 This page intentionally left blank...
-
Page 5: Preface
Preface 3 (14) Preface About This Document This manual describes the installation of Anybus Unmanaged Industrial L2 Switch. For additional documentation and software downloads, FAQs, troubleshooting guides and technical support, please visit www.anybus.com/support. Document Conventions The following conventions are used to indicate safety information and other important content in this document: WARNING Instruction that must be followed to avoid a risk of death or serious injury. -
Page 6: Safety
Safety 4 (14) Safety Intended Use The intended use of this equipment is as a communication interface and gateway. The equipment receives and transmits data on various physical levels and connection types. If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. -
Page 7: Preparation
Preparation 5 (14) Preparation Package Checklist Item Pieces Anybus Unmanaged Industrial L2 Switch 4 pin terminal block Startup Guide Safety and Regulatory Compliance Sheet Support and Resources For additional documentation and software downloads, FAQs, troubleshooting guides and technical support, please visit www.anybus.com/support. Have the product article number available, to search for the specific product page. -
Page 8: Installation
Installation 6 (14) Installation DIN Rail Mounting Mount the switch on a DIN rail in accordance with the EN 50022 standard. Procedure Mount the switch on a DIN rail: Insert the upper end of the DIN rail clip into the DIN rail. Push the bottom of the DIN rail clip into the DIN rail. -
Page 9: Connecting Ground And Power
Installation 7 (14) Connecting Ground and Power Terminal Block Contact Description Number Power Input V+ Power Input V– Power Input V+ Ground (GND) 4.2.1 Installing Terminal Block Procedure Attach the 4 pin terminal block to the contact on the switch. ®... - Page 10 Installation 8 (14) 4.2.2 Connecting Ground Wire To avoid system damage, the switch should be connected to ground. Procedure Connect the switch to Ground (GND): Insert the grounding wire into the Ground (GND) contact on the 4 pin terminal block. Tighten the wire-clamp screw.
- Page 11 Installation 9 (14) 4.2.3 Connecting Power Wires Caution Ensure that the power supply is turned off before connecting it to the switch. Use a power supply of 9.6–60 VDC to power the switch. Max power consumption: 2.64 W. Procedure Connect the switch to power: Insert the positive and negative wires into the V+ and V- contact on the 4 pin terminal block.
-
Page 12: Connecting To Ethernet
Installation 10 (14) Connecting to Ethernet Connect the switch to an Ethernet network. ® SP2555 1.1 en-US Anybus Unmanaged Industrial L2 Switch Startup Guide... -
Page 13: Verify Operation
Verify Operation 11 (14) Verify Operation When the installation is completed, verify that the switch is in operation. Power LED Indicator Fig. 1 Power LED Indicator Status Description Green On DC-IN Power is On Power No Power in DC-IN ® SP2555 1.1 en-US Anybus Unmanaged Industrial L2 Switch Startup Guide... -
Page 14: Ethernet/Ip Led Indicators
Verify Operation 12 (14) Ethernet/IP LED Indicators Fig. 2 RJ45 connector LED indicator Status Description Green On Link established Ethernet Green Blinking Packets transmitting/ receiving Green Off Link is inactive ® SP2555 1.1 en-US Anybus Unmanaged Industrial L2 Switch Startup Guide... -
Page 15: Technical Data
Technical Data 13 (14) Technical Data Technical Specifications AWB5001 Order Codes Interface 8 x 10/100/1000Base-TX RJ45, Auto Negotiation Operating -40°C-70°C , 0%-95% Non-Condensing temperature 10Base-T: 14,880pps, Data speeds 100Base-TX: 148,800pps, 1000Base-TX: 1,488,100pps Power 12/24/48 VDC (9.6-60VDC), support for redundant power supplies IEEE 802.3az EEE Power Management * Ultra low power design, 2.6W when full loading... - Page 16 last page © 2019 HMS Industrial Networks Box 4126 300 04 Halmstad, Sweden info@hms.se SP2555 1.1 en-US / 2019-10-30 / 15743...
