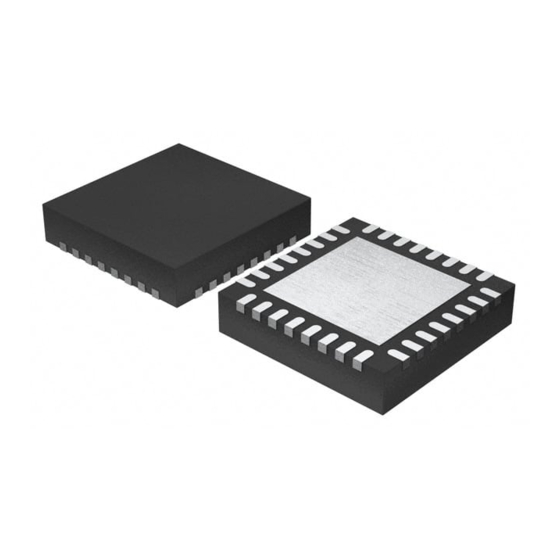

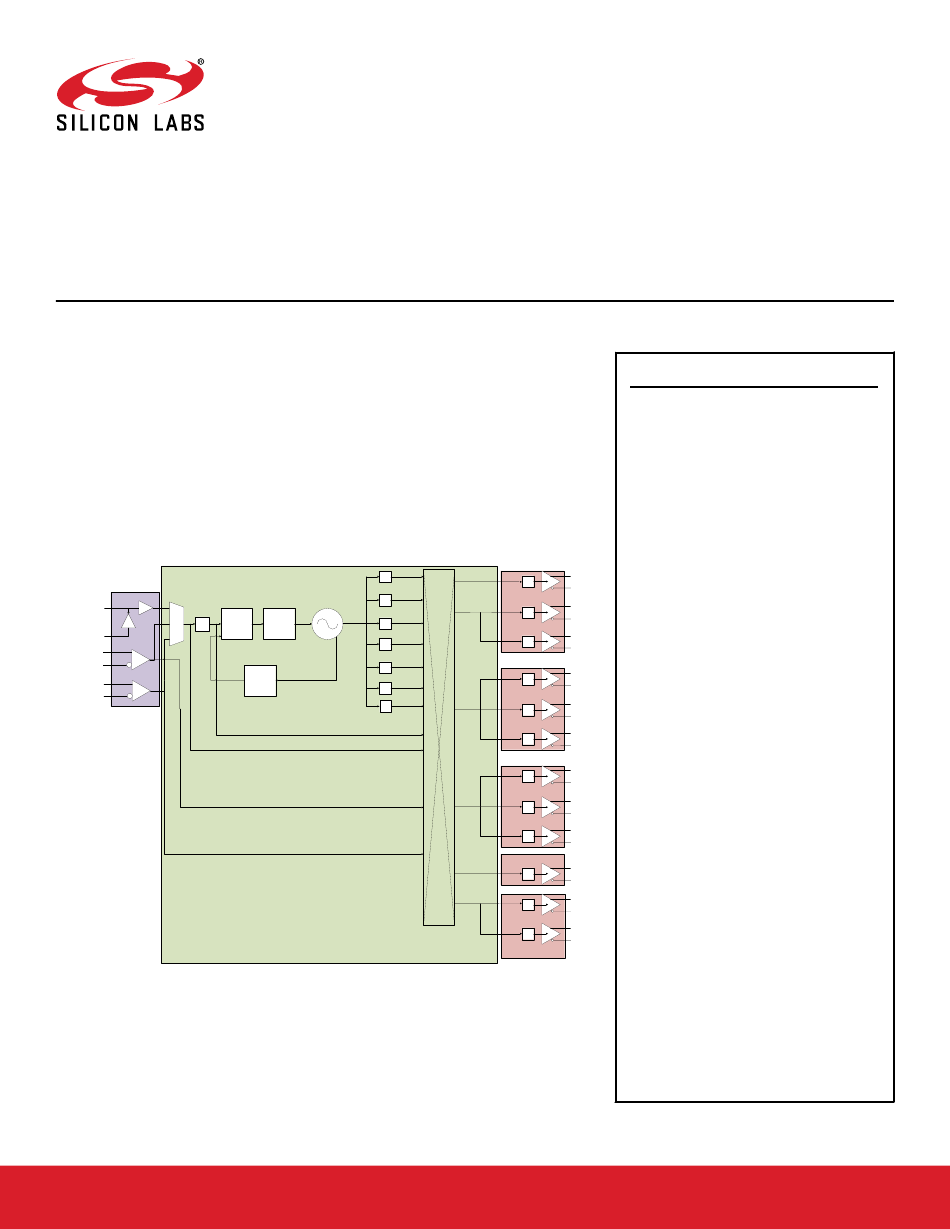

Si5332-AM1/2/3 Automotive Grade Device
Reference Manual
The Si5332-AM1/2/3 is a high-performance, low-jitter clock generator capable of synthe-
sizing five independent banks of user-programmable clock frequencies up to 333.33
MHz, while providing up to 12 differential or 24 single-ended output clocks. The Si5332
supports free run operation using an external crystal as well as lock to an external clock
signal. The output drivers are configurable to support common signal formats, such as
LVPECL, LVDS, HCSL, and LVCMOS. Separate output supply pins allow supply voltag-
es of 3.3 V, 2.5 V, 1.8 V and 1.5 V (CMOS only) to power the multi-format output drivers.
The core voltage supply (VDD) accepts 3.3 V, 2.5 V, or 1.8 V and is independent from
the output supplies (VDDOs). Using its two-stage synthesis architecture and patented
high-resolution Multisynth technology, the Si5332 can generate three fully independent/
non-harmonically-related bank frequencies from a single input frequency.
VDDA
VDD_XTAL
XA/CLKIN_1
10-30 MHz
PFD
÷ P
1-31
XB
10-50 MHz
CLKIN_2
nCLKIN_2
CLKIN_3
nCLKIN_3
silabs.com | Building a more connected world.
This information applies to a product under development. Its characteristics and specifications are subject to change without notice.
÷N
0
10-250 MHz
÷N
1
10-250 MHz
10-255
LF
÷O
0
10-312.5 MHz
2.375-2.625 GHz
÷O
1
10-312.5 MHz
÷O
2
10-312.5 MHz
÷M
/M
n
d
÷O
3
10-312.5 MHz
10-255
÷O
4
10-312.5 MHz
8-255
10-50 MHz
10-250 MHz
10-250 MHz
10-250 MHz
RELATED DOCUMENTS
• Any-Frequency 6/8/12-output
programmable clock generators
• Offered in three different package sizes,
supporting different combinations of output
clocks and user configurable hardware
input pins
• 32-pin QFN, up to 6 outputs
• 40-pin QFN, up to 8 outputs
• 48-pin QFN, up to 12 outputs (planned
future device)
• Multisynth technology enables any
÷R
OUT0
frequency synthesis on any output up to
250 MHz using N dividers.
OUT1
÷R
VDDOA
• Output frequencies up to 333.33 MHz
OUT2
÷R
using O dividers.
• Highly configurable output path featuring a
cross point mux
÷R
OUT3
VDDOB
• Up to three independent fractional
÷R
OUT4
synthesis output paths
• Up to five independent integer dividers
÷R
OUT5
• Down and center spread spectrum
• Input frequency range:
÷R
OUT6
• External crystal: 16 MHz to 50 MHz
VDDOC
÷R
• Differential clock: 10 MHz to 250 MHz
OUT7
• LVCMOS clock: 10 MHz to 170 MHz
÷R
OUT8
• Output frequency range:
VDDOD
• Differential: 5 MHz to 333.33 MHz
÷R
OUT9
• LVCMOS: 5 MHz to 170 MHz
• User-configurable clock output signal
÷R
OUT10
format per output: LVDS, LVPECL, HCSL,
VDDOE
LVCMOS
÷R
OUT11
1-63
• Easy device configuration using our
ClockBuilder Pro™
tool available for download from our web
site
• Temperature range: –40 to +105 °C
• Pb-free, RoHS-6 compliant
• For more information, refer to the
Automotive Grade Data Sheet
(CBPro™) software
Si5332
Preliminary Rev. 0.1
