L
- J
, 1 0 - O
O W
I T T E R
C
G
L O C K
E N E R A T O R
Features
Generates free-running or
synchronous output clocks
MultiSynth™ technology enables
any-frequency synthesis on any-
output with 0 ppm frequency
accuracy with respect to the input
Highly configurable outputs
compatible with LVDS, LVPECL,
LVCMOS, HCSL, or programmable
voltage swing and common mode
Excellent jitter: <100 fs RMS typ
Input frequency range:
External crystal: 25, 48-54 MHz
Differential clock: 10 to 750 MHz
LVCMOS clock: 10 to 250 MHz
Output frequency range:
Differential: 100 Hz to 800 MHz
LVCMOS: 100 Hz to 250 MHz
Output-output skew: <100 ps
Adjustable output-output delay
Optional zero delay mode
Independent glitchless on-the-fly
output frequency changes
Applications
Clock tree generation replacing
XOs, buffers, signal format
translators
Any-frequency synchronous clock
translation
Clocking for FPGAs, processors,
memory
Description
The any-frequency, any-output Si5341/40 clock generators combine a wide-band
PLL with proprietary MultiSynth fractional synthesizer technology to offer a
versatile and high performance clock generator platform. This highly flexible
architecture is capable of synthesizing a wide range of integer and non-integer
related frequencies up to 800 MHz on 10 differential clock outputs while
delivering sub-100 fs rms phase jitter performance and 0 ppm error. Each of the
clock outputs can be assigned its own format and output voltage enabling the
Si5341/40 to replace multiple clock ICs and oscillators with a single device
making it a true "clock tree in a chip".
The Si5341/40 can be quickly and easily configured using ClockBuilder Pro
software. Custom part numbers are automatically assigned using a
ClockBuilderPro
for fast, free, and easy factory programming, or the Si5341/40
can be programmed in-circuit via I
Preliminary Rev. 0.9 7/14
This information applies to a product under development. Its characteristics and specifications are subject to change without notice.
, A
U T P U T
NY
DCO mode with frequency
increment and decrement as low as
0.001 ppb/step
Core voltage:
V
: 1.8 V ±5%
DD
V
: 3.3 V ±5%
DDA
Independent output supply pins:
3.3V, 2.5V, or 1.8V
Built-in power supply filtering
Status monitoring: LOS, LOL
2
Serial Interface: I
or 4-wire)
In-circuit programmable with non-
volatile OTP memory (2x
programmable)
TM
ClockBuilder Pro
simplifies device configuration and
assigns customer part numbers

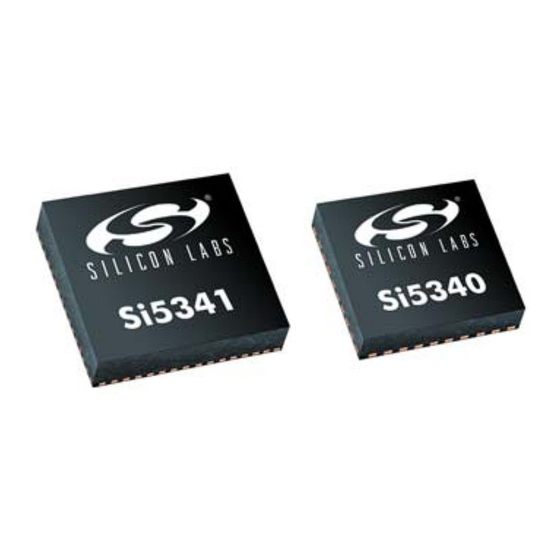

Si5341: 4 input, 10 output, 64 QFN
Si5340: 4 input, 4 output, 44 QFN
Temperature range: –40 to +85 °C
Pb-free, RoHS-6 compliant
Ethernet switches/routers
OTN framers/mappers/processors
Test equipment & instrumentation
Broadcast video
2
C and SPI serial interface.
Copyright © 2014 by Silicon Laboratories
-F
, A
R E Q U E N C Y
C or SPI (3-wire
software utility
IN1
IN1
IN_SEL0
IN_SEL1
SYNC
RST
X1
XA
XB
X2
OE
INTR
VDDA
IN2
IN2
SCLK
IN1
IN1
IN_SEL0
X1
XA
XB
X2
VDDA
VDDA
IN2
IN2
S i5341/40
-O
NY
U T P U T
Ordering Information:
See section 7
Pin Assignments
Si5341 64QFN
Top View
1
2
3
4
5
6
7
GND
8
Pad
9
10
11
12
13
14
15
16
Si5340 44QFN
Top View
1
33
2
32
3
31
4
30
5
29
GND
6
28
Pad
27
7
26
8
9
25
10
24
11
23
Si5341/40
FINC
48
47
LOL
46
VDD
45
OUT6
OUT6
44
43
VDDO6
42
OUT5
41
OUT5
VDDO5
40
39
I2C_SEL
38
OUT4
37
OUT4
VDDO4
36
OUT3
35
34
OUT3
33
VDDO3
INTR
VDD
OUT2
OUT2
VDDO2
LOS_XAXB
LOL
VDDS
OUT1
OUT1
VDDO1
