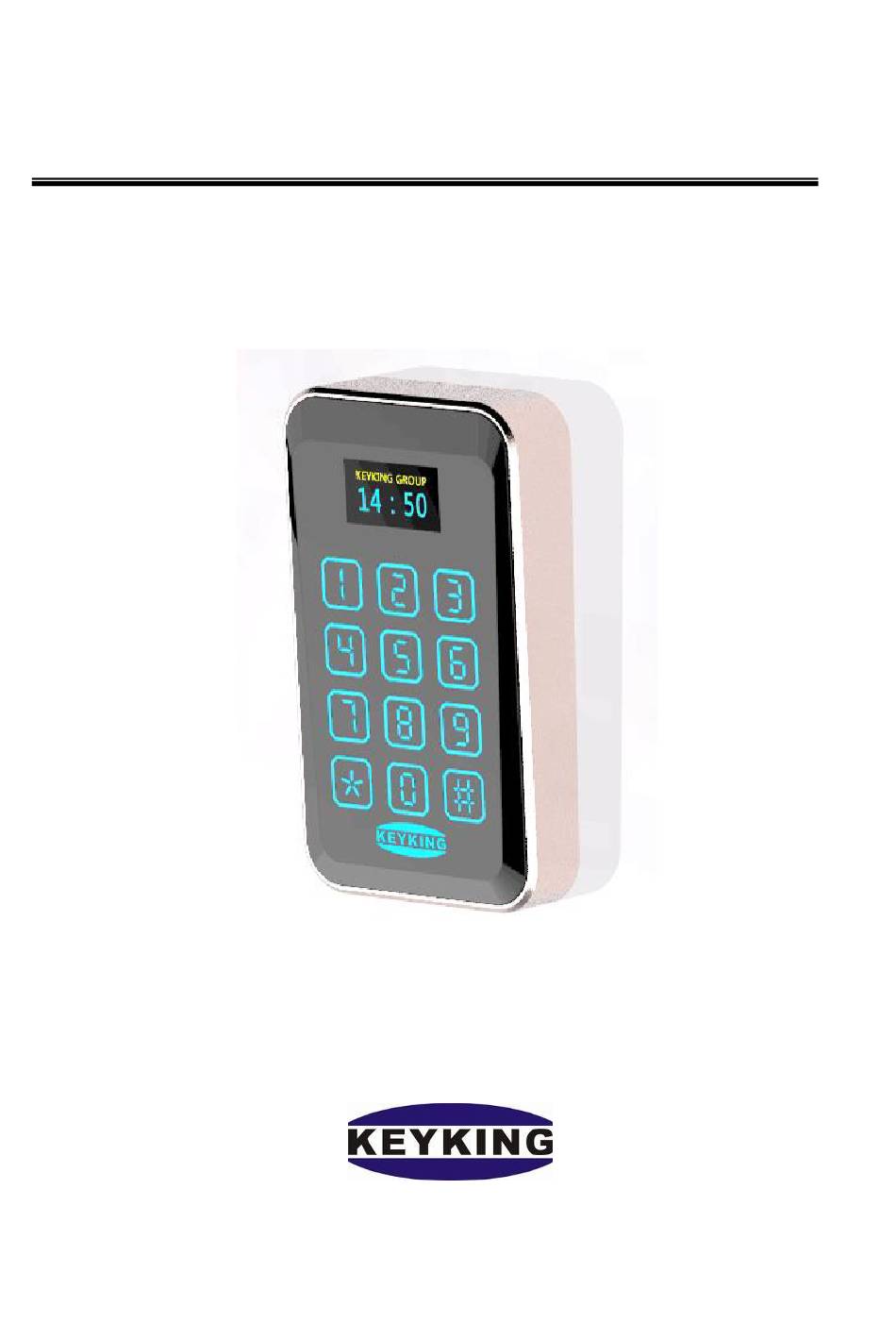

- Page 1 User Manual Thank you for selecting Keyking products. Please read this manual thoroughly before using. TA7002P-X Time & Attendance Standalone KEYKING GROUP LIMITED...
-
Page 2: Table Of Contents
1.1 Summary ..............................3 1.2 Features ..............................4 1.3 Application Mode ........................... 5 Chapter2 Wiring Diagram ............................ 7 2.1 TA7002P-X Appearance ......................... 7 2.2 Wiring Diagram ............................8 2.3 Lock Wiring Diagram ..........................9 2.4 RS485 Net Bus ............................. 10 2.5 TCP/IP Network ............................ -
Page 3: Chapter1 Introduction
TA7002P-X can by itself control a door, both in and out, at least one reader is needed for one side, and the other side can be controlled either by a reader or a Rex Button. This system provides a more convenient and secured access environment, it also makes it possible for managers to verify the attendance in time. -
Page 4: Features
TA7002P-* User Manual（V1.0） 1.2 Features 1. TA7002P-X is a new generation product of high value which has integrated keypad, text display, single door control and T&A. Its 3 flexible uses are as below. T&A：TA7002P-X can directly communicate with host PC via RS485 or TCP/IP which managed by software AccessWatch3000. -
Page 5: Application Mode
Communicate Frequency： 125KHZ: E: EM； 13.56MHZ: M: Mifare； U：CPU Read Range：3-15CM Outputs：NC/NO，30VDC，5A Power Supply：12VDC+10% ，200MA Dimension：117mm (H) x 86mm (W) x 22mm (D) 1.3 Application Mode 3 Application Modes： Standalone Outdoor external reader, indoor TA7002P-X Page 5 of 28... - Page 6 KEYKING GROUP TA7002P-* User Manual（V1.0） Outdoor reader Indoor TA7003N Indoor external reader, outdoor TA7002P-X Indoor Outdoor Reader TA7003NT Page 6 of 28...
-
Page 7: Chapter2 Wiring Diagram
KEYKING GROUP TA7002P-* User Manual（V1.0） Chapter2 Wiring Diagram 2.1 TA7002P-X Appearance Company Logo Clock Door bell Keypad Backlight LED (Green&Blue) Figure 2-1 LED: Blue LED：Power indicator Green LED：Sensor indicator（Relay turned on indicator） Keypad: Description Description Numeral 1 Numeral 7... -
Page 8: Wiring Diagram
KEYKING GROUP TA7002P-* User Manual（V1.0） 2.2 Wiring Diagram J1：Power & RS485 J3：TCP/IP interface J2：Reader_In & REX Figure 2-2 Backside Page 8 of 28... -
Page 9: Lock Wiring Diagram
KEYKING GROUP TA7002P-* User Manual（V1.0） Icon Mark Description Feature Remark +12V_In Power Supply, In Power supply Ground, GND 485+ RS485+ RS485 interface 485- RS485- ≦500mA +12V_Out Power Out Power Out during POE Normal Open COM1 Common Lock Relay Normal Closed... -
Page 10: Rs485 Net Bus
Figure 2-6 Cathode lock（Fail secure） 2.4 RS485 Net Bus TA7002P-X can communicate via half-duplex RS485 bus, up to 1200m communication distance. Terminals use series connection. Please make sure power supply is in off state before do wiring. This helps to avoid any damage maybe caused to the device. -
Page 11: Tcp/Ip Network
KEYKING GROUP TA7002P-* User Manual（V1.0） 2.5 TCP/IP Network TA7002P-X TCP/IP network Figure 2-8 TCP/IP crystal head RJ45 NO. Difination Figure 2-9 Sheet 2-2 Normal net cable（to switch） ← ← Page 11 of 28... - Page 12 KEYKING GROUP TA7002P-* User Manual（V1.0） 图 2-10 Crossed cable（to PC） ← ← Figure 2-11 Page 12 of 28...
-
Page 13: Chapter3 Instructions
KEYKING GROUP TA7002P-* User Manual（V1.0） Chapter3 Instructions User Management、PIN management、Work mode and Time set are configured in the manage menu. Menu structure is shown below. Press * 39 # to enter manage menu when idle. In the main menu, “*” works as “cancel”, “#” works as “confirm”, “3”... -
Page 14: Clock Configuration
KEYKING GROUP TA7002P-* User Manual（V1.0） 3.1 Clock Configuration 3.1.1 Edit Time 1． Press * 39 # to enter manage menu when idle. In the main menu, “*” works as “cancel”, “#” works as “confirm”, “3” works as “Up”, ”9” works as “down”. -
Page 15: Card Configuration
3. Press # to enter register interface. Input or Flash 0000000000 4. Input a ten digits number or flash the card you want to register on TA7002P-X, the card number will be read by TA7002P-X automatically and shows up on the screen. Input or Flash 0123456789 5. -
Page 16: Delete Card
3. Press # to enter delete card interface. Input or Flash 0000000000 4. Input a ten digits number or flash the card you want to register on TA7002P-X, the card number will be read by TA7002P-X automatically and shows up on the screen. Input or Flash 0123456789 5. -
Page 17: System Configuration
3. Press # to enter Delete All Card interface. Input or Flash 0000000000 4. Input a ten digits number or flash the card you want to register on TA7002P-X, the card number will be read by TA7002P-X automatically and shows up on the screen. Input or Flash 0123456789 5. -
Page 18: Menu Password
KEYKING GROUP TA7002P-* User Manual（V1.0） English× ◆ Chinese√ Use button 3 or 9 to select the language customer wanted. Press # to confirm. 3.3.2 Menu Password There is no defaulted password, customer can set favored password. Steps: 1． Use button 3 or 9 to select System when enter the manage menu. -
Page 19: System Info Configuration
4. Use button 3 or 9 to select Device ID and press # to confirm. Device ID Press # to confirm Device ID setting. Device ID must be set when using multiple TA7002P-X while it’s not necessary for standalone. Page 19 of 28... - Page 20 KEYKING GROUP TA7002P-* User Manual（V1.0） 3.3.4.2 Network Configuration 1. Use button 3 or 9 to select System when enter the manage menu. Clock Cards System ◆ Delete 2. Use button 3 or 9 to select System Info. Language Menu Password...
-
Page 21: Delete
4. Use button 3 or 9 to select Sleep Time and press # to confirm. Sleep Time 020 Sec Use keypad to input sleep time (sec), press # to confirm. 3.3.4.4 Board Info Use to check TA7002P-X version and production date. Example： Version：.TA7003 Ver 03.00 Date：20100415（Programmed date 2010-4-15） IP Address：192.168.1.100 MAC Address：... -
Page 22: Door Parameter Initialize
3.5 Door Open Mode By Card Steps: 1. Register your card by using Add Card in the manage menu. 2. Flash the card on TA7002P-X. (3-10cm read range) 3. The screen shows card number, owner name. 4. Relay responds, Page 22 of 28... - Page 23 KEYKING GROUP TA7002P-* User Manual（V1.0） door open.N Please note that if the card is not registered, the TA7002P-X will beep three short sounds and shows invalid card on the screen. Door will stay closed. By card + PIN Steps: 1. Register your card and set password by using Add Card in the manage menu. Password is limited to 4 digits.
-
Page 24: Chapter 4 Installation
KEYKING GROUP TA7002P-* User Manual（V1.0） Chapter 4 Installation Steps: 4.1 In the Wall Use installation box: Drill a hole on the wall (fit to the box) where you want to install your reader. Then install the USA Gang Box in the hole. -
Page 25: On The Wall
KEYKING GROUP TA7002P-* User Manual（V1.0） Wiring: Design the wiring between reader and controller, then process wiring. Connection: Please refer to chapter 2 of the connections. Fix reader on the box：Use 2 M6*30 screws to fix reader on the box. Cover up. -
Page 26: Without Usa Gang Box
KEYKING GROUP TA7002P-* User Manual（V1.0） Fix reader on the box：Use 2 M6*30 screws to fix reader on the box. Cover up. 4.3 Without USA Gang Box Drill a hole in the wall withф30mm a). ф30mm drill tool b). Hole diameterф30mm Note: This tool is used for metal and wooden wall, no good for stone or cement wall. -
Page 27: Chapter 5 Faq
Door stays opened menu Password missing Reset password in PC.(Connect to PC fisrt) Device not powered up（TA7002P-X、lock） Invalid card（register your card） Can not open door by flashing card Door open mode (Set to Card, not Card + PIN) ... - Page 28 KEYKING GROUP TA7002P-* User Manual（V1.0） Attached: Note：Please record card registration events as per attached form when using Card/Card + PIN mode. This will help to make a good management if customer wants to register a card or delete a card.
