Installing Cable Management Frames onto the Chassis
Step 1
Attach the two cable management frames to the chassis as follows:
a) Position one of the cable management side frame assemblies on the vertical mounting bracket attached to one side
of the front of the chassis.
b) Secure the cable management frame with two M4 screws. (see the following figure).
•

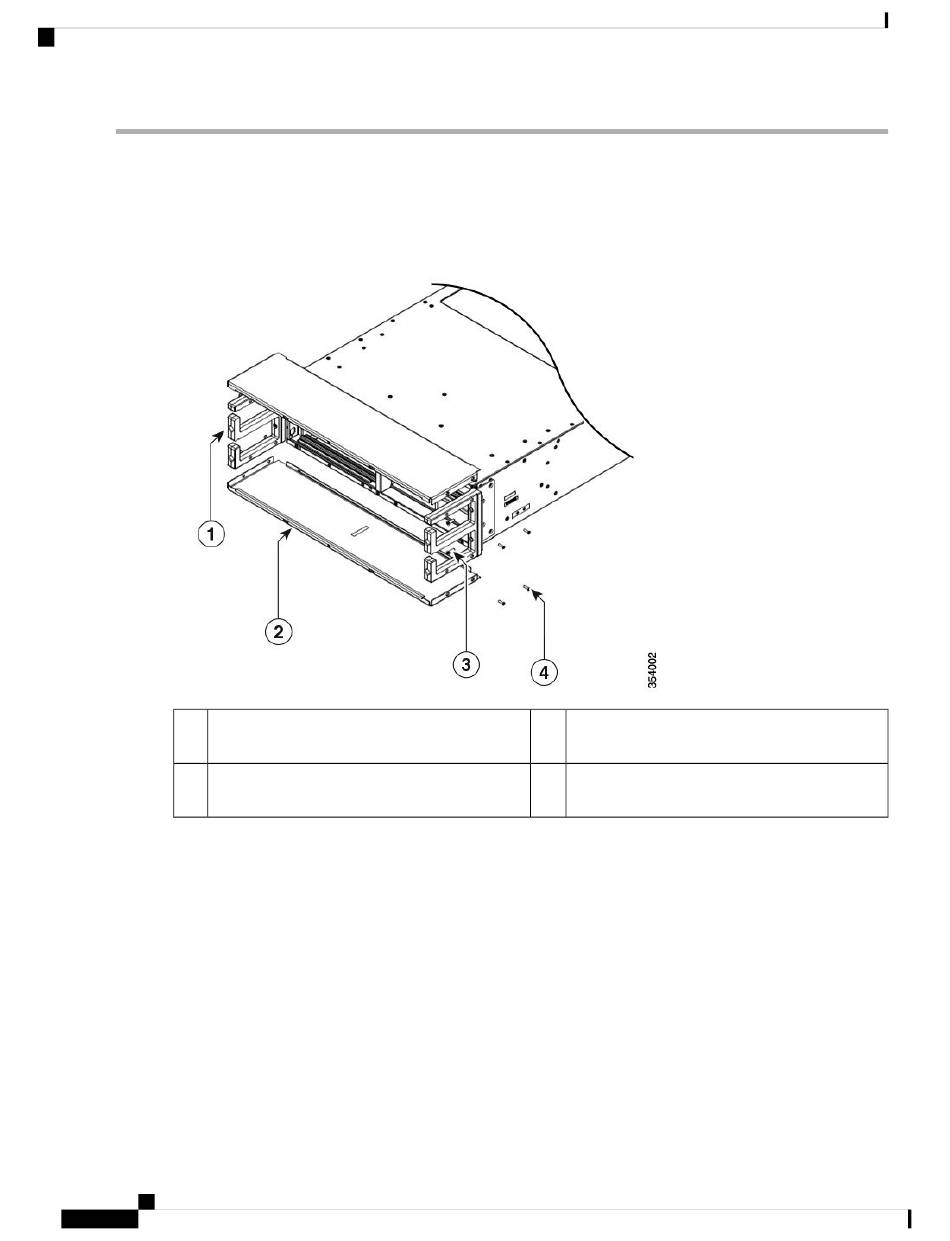

Figure 6: Attaching a Cable Management Assembly to the Chassis
1 Cable management side frame
2 Cable management bottom hood frame
c) Repeat Steps 1a through 1b to attach the other cable management frame.
d) Place the top and bottom hood frame as shown in the figure. Secure the hood frames with four M3 screws.
Step 2 Attach the side filter to the cable management assembly as follows:
a) Remove 4 M3 screws as shown in the figure.
Installing the Switch Chassis
12
3 Two M4 screws to secure the cable management
frame to front mounting bracket on chassis.
4 Four M3 screws to secure top and bottom hood
frames to the chassis.
