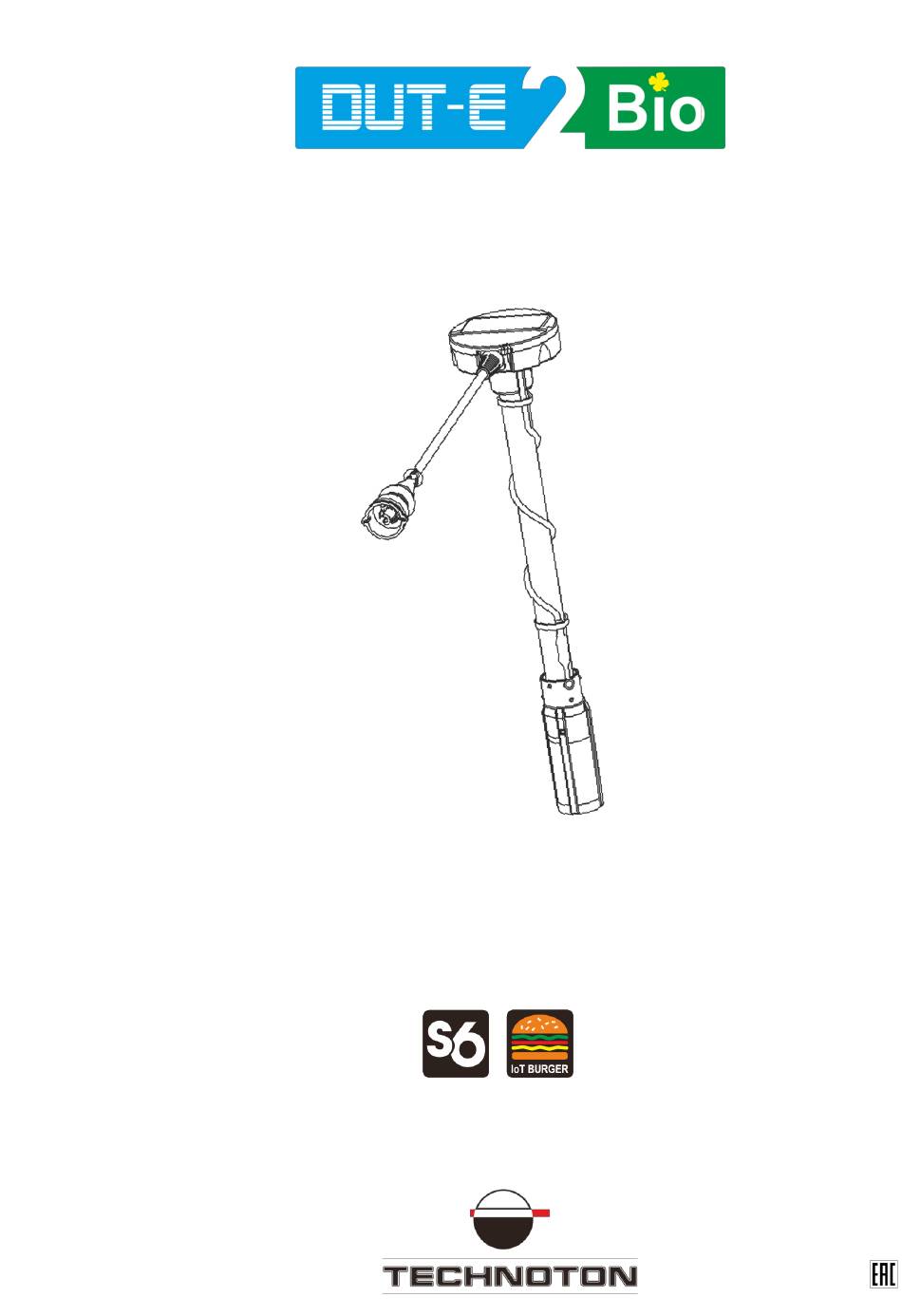

- Page 1 FUEL LEVEL SENSORS DUT-E 2Bio CAN/232/485/AF/I OPERATION MANUAL Version 3.1...
- Page 2 1.4 Technical specifications ..................17 1.4.1 Main specifications ..................17 1.4.2 Specifications of DUT-E 2Bio CAN output signal ..........18 1.4.3 Specifications of DUT-E 2Bio 232/485 output signal ........... 19 1.4.4 Specifications of DUT-E 2Bio AF output signal ........... 21 1.4.5 Specifications of DUT-E 2Bio I output signal .............
- Page 3 B.6 Events registrator FM ..................84 Annex C DUT-E 2Bio firmware upgrade ................85 Annex D Electromagnetic compatibility specifications of DUT-E 2Bio ........86 Annex E Videography ....................88 DUT-E 2Bio fuel level sensors. Operation manual. Version 3.1 © Technoton, 2019...
- Page 4 Feature of recognition of fuel type in use is added for DUT-E 2Bio CAN; Updated list of DUT-E 2Bio CAN data transfer protocol messages; Register map of DUT-E 2Bio 232/485 output messages according to Modbus protocol is updated;...
- Page 5 Operation manual Part S6 Data Base S6 Website Part S6 Functional modules Page DUT-E 2Bio Page DUT-E GSM Page DUT-E JV Technoton Website Page DFM Page CANUp Part Software/Firmware Part Technical support YouTube Technoton ORF 4 Website DUT-E 2Bio fuel level sensors. Operation manual. Version 3.1...
- Page 6 (usually a day, week or month). Can be composed of numbers, tables, charts, mapped route of vehicle, diagrams. Onboard equipment (OE) — Telematics system elements, directly installed in Vehicle. DUT-E 2Bio fuel level sensors. Operation manual. Version 3.1 © Technoton, 2019...
- Page 7 Uses input/output PGNs and settings PGNs. Unit is an element of vehicle on-board equipment compatible with S6 bus, which uses S6 Technology. DUT-E 2Bio fuel level sensors. Operation manual. Version 3.1 © Technoton, 2019...
- Page 8 Bluetooth using S6 BT Adapter. S6 Technology allows to use DUT-E 2Bio CAN to summarize data together from DUT-E GSM DUT-E CAN sensors that have interface CAN j1939/S6. ** For DUT-E 2Bio CAN with firmware version from 7.13 and higher.
- Page 9 Fuel level sensor DUT-E 2Bio CAN L=1000 mm (CAN j1939/S6 interface, measuring probe length 1000 mm). * Per special order, DUT-E 2Bio CAN/AF/232/485 can be manufactured with any custom measuring probe length up to 1400 mm. For orders less than 200 pieces in calendar quarter, 10 % extra fee is applied.
- Page 10 Manual. ATTENTION: Manufacturer reserves the right to modify DUT-E 2Bio specifications that do not lead to a deterioration of the consumer qualities without prior customer notice. DUT-E 2Bio fuel level sensors. Operation manual. Version 3.1 © Technoton, 2019...
- Page 11 40 %. In such cases, to provide high accuracy of fuel volume measurement in the tank, it is necessary to renew long calibration procedure of the tank. DUT-E 2Bio fuel level sensors. Operation manual. Version 3.1 © Technoton, 2019...
- Page 12 (see figure 4). Procedure of fuel tank re-calibration is not required with DUT-E 2Bio! Figure 4 — Example of data comparison of corrected and uncorrected fuel levels DUT-E 2Bio fuel level sensors. Operation manual. Version 3.1 © Technoton, 2019...
- Page 13 Interface j1939/S6 allows connect Technology simultaneously to 8 fuel level sensors DUT-E 2Bio CAN to Online telematics gateway CANUp 27. Integrated application with fuel flow meters DFM CAN (up to 8 units) is convenient complex solution for fuel monitoring at fixed installations (diesel generators sets, boiling/burning equipment), which...
- Page 14 sensor specification data (passport); presence of water in fuel; sensor malfunctions. Figure 6 – Using DUT-E 2Bio CAN by S6 Technology on stationary objects DUT-E 2Bio fuel level sensors. Operation manual. Version 3.1 © Technoton, 2019...
- Page 15 1 pc. is for initial DUT-E 2Bio mounting and 1 pc. as a spare part. The delivery set may include just 1 gasket of 4 mm. *** Exterior of seal can be different. Download full version from Technoton Document center http://docs.jv-technoton.com/...
