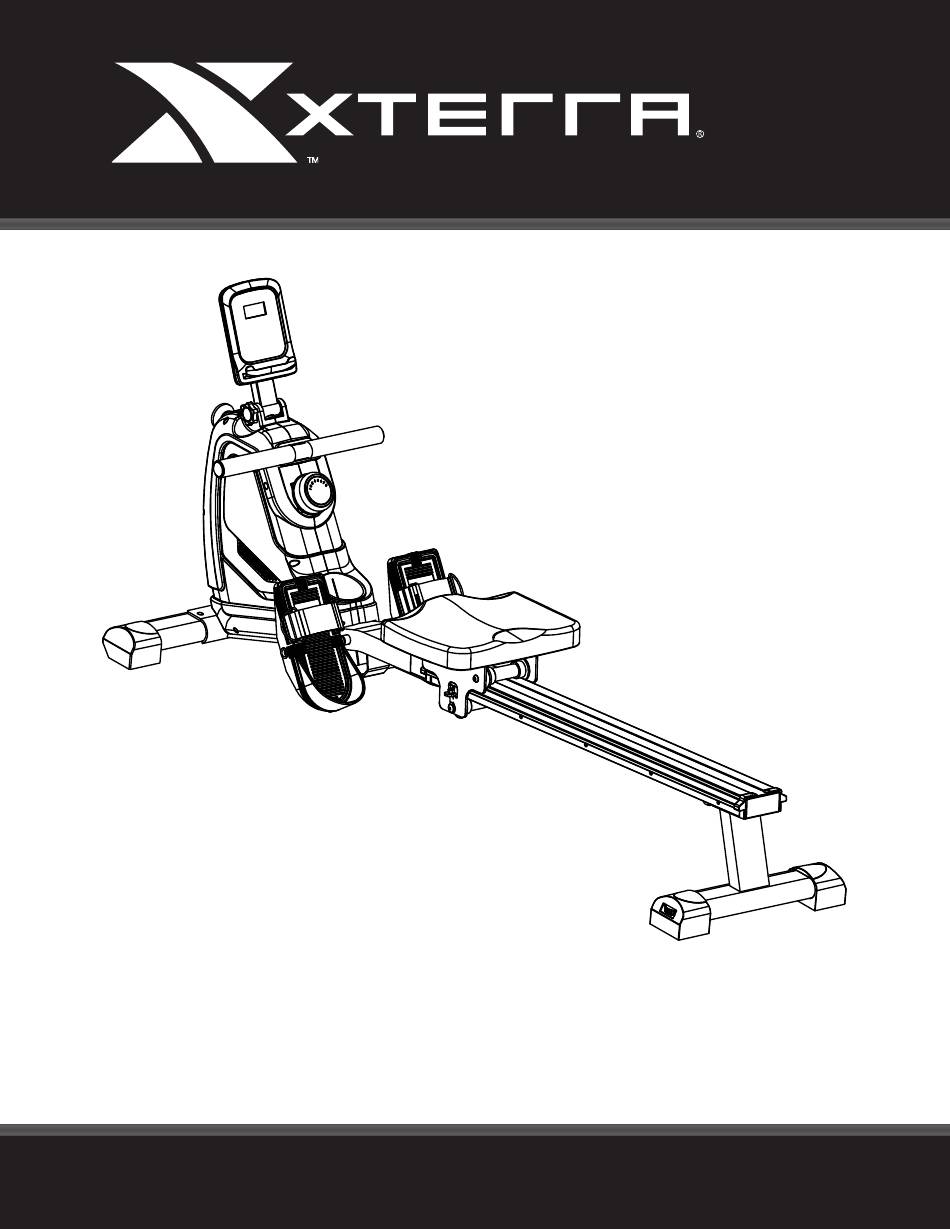

FITNESS
ERG160 ROWER
OWNER'S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ROWER

Advertisement

Table of Contents
loading

Related Manuals for Xterra ERG160

Summary of Contents for Xterra ERG160

  • Page 1 FITNESS ERG160 ROWER OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ROWER...

  • Page 2: Table Of Contents

    Table Of Contents Product Registration Important Safety Instructions Exploded View Parts List ERG160 Assembly Instructions Adjustment Guides Operation of Your Console Troubleshooting Manufacturer’s Limited Warranty ERG160_VER1_20200218 ERG160 Rower ERG160 Rower...

  • Page 3: Product Registration

    Congratulations On Your New Rower and Welcome to the XTERRA Fitness Family! Thank you for your purchase of the ERG160 Rower from XTERRA Fitness. Your new rower has been manufactured by one of the leading fitness manufacturers in the world.

  • Page 4: Important Safety Instructions

    Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and possibly others) to injury, and reduce the longevity of the equipment. SAVE THESE INSTRUCTIONS - THINK SAFETY! CAUTION!! Please be careful when unpacking the carton. ERG160 Rower...
  • Page 5 For your benefit, read this manual carefully before you use the ERG160 Fitness Rower. To help us assist you, note the product model number and serial number before contacting us. Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.

  • Page 6: Exploded View

    ERG160 Exploded Drawing ERG160 Rower...

  • Page 7: Parts List

    ERG160 Parts List Part No. Description Spec. Main frame Slide rail Front stabilizer Rear stabilizer Handlebar Fixed plate for seat Console bracket Magnet bracket Chain cover L Chain cover R Stop Brackets R 12L/R Pedal L/R Pedal strap Cross-head screw...
  • Page 8 ERG160 Parts List Volute spring Sensor wire L400 mm Flat washer OD12×ID6.5×1.5 Shaft for Drawstring pulley Cross-head screw M5×35 Flat washer OD20*ID8.5*T1.5 Allen bolt M8*45 Allen bolt M8*15 Adjust knob Spacer for Belt Wheel Ф10*Ф6.1*40 Hex head bolt M6*55 Hex head bolt M12*Ф12.5*160...
  • Page 9 ERG160 Parts List Flange nut M10*P1.0 Self-tapping screw ST4.2*L25 One way bearing HF1712 Allen bolt M8*20 C clip Ф10 Wave washer OD13.5*ID10.2*0.4 Bearing 16003 Bottle Holder Magnet 25*10*5 Cross-head screw M5*12 Flywheel Ф150 Self-tapping screw ST4.2*12 Console X-3508 Flat head Screw...

  • Page 10: Erg160 Assembly Instructions

    ERG160 Assembly Pack Checklist NO.1 NO.2 NO.3 NO.4 NO.12 R/L NO.38 NO.91 Part No. Description Quantity Main Frame Slide Rail Front Stabilizer Rear Stabilizer 12R/L Pedals Seat Assembly Console Hardware Manual Note: Above parts are all needed to assemble this machine. Before you start to assemble, please check the hardware packing to make sure they are included.
  • Page 11 ERG160 Assembly Pack Checklist STEP-1 STEP-2 STEP-3 #55 OD16*ID8.5*1.5 2PCS #55 OD16*ID8.5*1.5 4PCS #52 ID8.5 4PCS #81 M8*20 4PCS ID8.5 2PCS # 45 M8*45 2PCS #62 2PCS STEP-4 TOOL #44 OD16×ID8.5×1.5 2PCS #59 2PCS # 99 S5 1PCS # 100 S13-14-19 1PC...
  • Page 12 STEP-1 ERG160 Assembly Instructions Seat Assembly #62 M6*10 2pcs #62 M6*10 2pcs #100 1pc #100 1pc 1. Slide the Seat Assembly (38) onto the Slide Rail (2). Attach the Limiter Pad (34) to the Slide Rail (2) and secure with 2 Flat Head Screws (62).
  • Page 13 STEP-2 ERG160 Assembly Instructions #99 S5 1pc Rear Stabilizer #81 M8*20 4pcs #52 ID8.5 4pcs #55 OD16*ID8.5*1.5 4pcs #99 S5 1pc 1. Attach the Rear Stabilizer (4) to the Slide Rail (2), tighten with 4 Flat Washers (55) and 4 Spring Washers (52) and 4 Allen Bolts (81).
  • Page 14 ERG160 Assembly Instructions STEP-3 STEP-3 Front Stabilizer #45 M8*45 2pcs #45 M8*45 2pcs #52 ID8.5 2pcs #52 ID8.5 2pcs #55 OD16*ID8.5*1.5 2pcs #55 OD16*ID8.5*1.5 2pcs #99 S5 1pc #99 S5 1pc 1. Attach the Front Stabilizer (3) to the Main Frame (1), secure with 2 Flat Washers (55) and 2 Spring Washers (52) and 2 Allen Bolts (45).
  • Page 15 STEP-4 STEP-4 ERG160 Assembly Instructions Slide Rail #59 ST4.0*16 2pcs #59 ST4.0*16 2pcs #100 1pc #100 1pc #92 M8*15 4pcs #92 M8*15 4pcs #46 M8*15 2pcs #46 M8*15 2pcs #44 OD20*ID8.5*1.5 2pcs #44 OD20*ID8.5*1.5 2pcs #99 S5 1pc #99 S5 1pc 1.
  • Page 16 ERG160 Assembly Instructions STEP-5 STEP-5 Pedals #50 M12*160 4pcs #50 M12*160 4pcs #64 Ф18*Ф13*26 2pcs #64 Ф18*Ф13*26 2pcs #100 1pc #100 1pc 1. Attach the Left Pedal (12L) onto the Main Frame (1) and secure with 2 Hex Head Bolts (50) and 1 Pedal Bushing (64).
  • Page 17 ERG160 Assembly Instructions STEP-6 Connecting the Console #100 1pc STEP-6 1. Connect the Sensor Wires (40) with the Console (91) and secure with 4 Cross- head Screws (65) that are pre-assembled on the back of Console (91). ERG160 Rower...

  • Page 18: Adjustment Guides

    Stabilizer (4) of the machine. If you find the machine is unbalanced before or during your workout, the Levelers (33) can be used to correct this issue. Continuously working out on an unbalanced machine may cause damage to the machine. ERG160 Rower...
  • Page 19 Take the Slide Rail (2) and move it into a vertical position. CAUTION: The Seat (38) will glide down when the Slide Rail (2) is raised. Also take care to avoid the Rear Stabilizer (4) when moving the Slide Rail (2). ERG160 Rower...

  • Page 20: Operation Of Your Console

    Operation of Your Console ERG160 Console Functions and Operations LOGO SIZE:55.2*9.3MM Functions SCAN Every 6 seconds TIME 0:00 ~ 99:59 COUNT 0.0 ~ 9999 TIMES TRIP DISTANCE 0.00 ~ 9999 METER CALORIES 0.0 ~ 9999 CAL 0 ~ 999 TIMES/MIN...
  • Page 21 3. The console will automatically start when input is recieved from pedaling or pressing the MODE button. 4. The console will pause calculations after 4 seconds of no input. This will read as “STOP” on the console screen. Calculations will resume once exercise input is returned. ERG160 Rower...

  • Page 22: Troubleshooting

    Troubleshooting Problem Cause Solution Battery not installed Install battery Console does not turn on Ensure the computer wires Computer wires not con- are connected properly at nected the upright and computer ERG160 Rower...

  • Page 23: Manufacturer's Limited Warranty

    Effective January 06, 2020 - ROWER LIMITED WARRANTY XTERRA Fitness Inc. warrants all its home use Rower parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA Fitness’...
  • Page 24 3000 Nestle Road Jonesboro, AR 72401 - Phone:870-333-5500 - Fax:870-935-7611 www.xterrafitness.com ©2020 All RIghts Reserved. ERG160 Owner’s Manual...
