AFG M668 Assembly Instructions Manual

Convertible crib and changer
Hide thumbs

Advertisement

Quick Links

Download this manual
Model No.: M668
PO #:
Serial #:

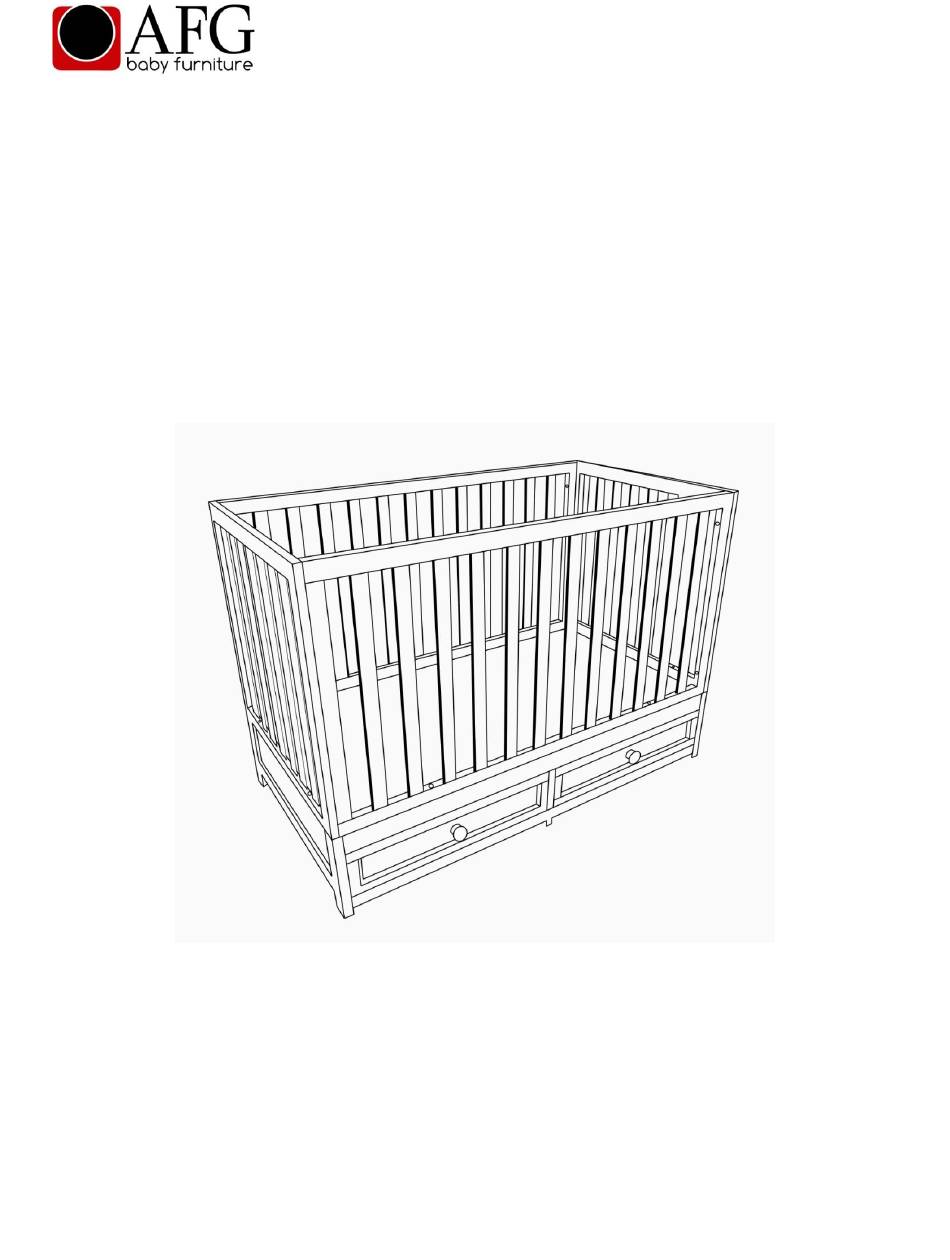

Convertible Crib and Changer
(M668)
THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE.
If you have any questions or missing parts, please contact us. DO NOT return product
parts to the store where it was purchased before contacting AFG Customer Service.
AFG Customer Service:
E-mail: service@afgbabyfurniture.com
Tel: (323) 722-6268

Advertisement

loading
Need help?

Need help?

Do you have a question about the M668 and is the answer not in the manual?

Questions and answers

Related Manuals for AFG M668

Summary of Contents for AFG M668

  • Page 1 THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE. If you have any questions or missing parts, please contact us. DO NOT return product parts to the store where it was purchased before contacting AFG Customer Service. AFG Customer Service: E-mail: service@afgbabyfurniture.com...
  • Page 2                                 2014 AFG Baby Furniture M668 Assembly Sheet ©...
  • Page 3                                 2014 AFG Baby Furniture M668 Assembly Sheet ©...
  • Page 4  M668 Crib Parts Identification Sheet DO NOT assemble crib if parts and hardware are defective or missing. Contact AFG for exchange or keep the original box for return authorization. ~ Crib Assembly Parts ~ A. Left & Right Panel B.
  • Page 5 (2 pcs) (2 pcs) M668 Hardware Identification Sheet DO NOT assemble crib if parts and hardware are defective or missing. Contact AFG for exchange or keep the original box for return authorization. ~ Crib Assembly Hardware ~ Item # Fittings 1.
  • Page 6 (16 pcs) 9. Security bracket (4 pcs) 10. Drawer Knob (2 pc) 11. Knob Bolt 1/4" x 1-3/4” (2 pcs) 12. Wrench (1 pcs) PHILLIPS SCREWDRIVER (NOT INCLUDED) FLATHEAD SCREWDRIVER (NOT INCLUDED) M668 2014 AFG Baby Furniture M668 Assembly Sheet ©...
  • Page 7 1 pc Drawer Right Side 2 pcs Front Panel 1 pc Drawer Back 2 pcs Mattress Support 1 pc Drawer Bottom 2 pcs Board Mattress Crossbar 4 pcs M668 Crib Drawer Assembly Sheet 2014 AFG Baby Furniture M668 Assembly Sheet ©...
  • Page 8 Attach Drawer Left Side Panel (L) and Drawer Right Side Panel (M) to Drawer Front Panel (K) with 4 Screws (#8). STEP 2: Slide Drawer Bottom Panel (O) into the grooves of the side panels. M668 Crib Drawer Assembly Sheet 2014 AFG Baby Furniture M668 Assembly Sheet ©...
  • Page 9 Attach Drawer Back Panel (N) to side panels with 4 Screws (#8). Make sure all screws are tightly secured. STEP 4: Insert Drawer Knob (#10) into Drawer Front Panel with 1 Knob Bolt (#11). Repeat above steps to assemble the other drawer. M668 Crib Assembly Sheet 2014 AFG Baby Furniture M668 Assembly Sheet ©...
  • Page 10 Attach Middle Side Panel (I) to Fixed Side Bottom Panel (B) by using 2 Bolts (#4). STEP 2: Attach Front Bottom Rail (D) to Middle Side Panel (I) by using 1 Bolt (#4). M668 Crib Assembly Sheet 2014 AFG Baby Furniture M668 Assembly Sheet ©...
  • Page 11 Attach Foot Board Bottom (J) to Fixed Side Bottom Panel (B), Front Top Rail (C) and Front Bottom Rail (D) by inserting 4 Barrel Nuts (#6) before screwing 4 Bolts (#2). Repeat again for the other Foot Board Bottom (J) M668 Crib Assembly Sheet 2014 AFG Baby Furniture M668 Assembly Sheet ©...
  • Page 12 Insert 4 Security Bracket (#9) into Fixed Side Bottom Panel (#B) and Front Top Rail (C) before sliding Mattress Support Board (G) between Security Bracket and Mattress Crossbars. M668 Crib Assembly Sheet 2014 AFG Baby Furniture M668 Assembly Sheet ©...
  • Page 13 Insert 2 Wood Dowels (#5) into Foot Board Bottom (J) before attaching Left Panel (A) with 2 Bolts (#1) Tighten firmly with Wrench (#12). Repeat above steps for the Right Panel (A). 2014 AFG Baby Furniture M668 Assembly Sheet ©...
  • Page 14 Insert 2 Wood Dowels (#5) into Front Top Rail (C), and 2 Wood Dowels (#5) into Fixed Side Bottom Panel (B) Attach Front Panel (F) and Back Panel (E) to Left & Right Panel (A) by using total 4 Bolts (#1). 2014 AFG Baby Furniture M668 Assembly Sheet ©...
  • Page 15 M668 Crib Assembly Sheet Step9 : Attach Back Panel (E) and Back Panel (E) to Left & Right Panel (A) by using 8 Bolts (#3) 2014 AFG Baby Furniture M668 Assembly Sheet ©...
  • Page 16 M668 Crib Assembly Sheet Step10: Slide 2 drawers into the bottom of crib. 2014 AFG Baby Furniture M668 Assembly Sheet ©...
  • Page 17 M668 Toddler Bed Assembly Sheet Step 1: Remove Front Panel (G) by removing 4 Bolts (#3) and 2 Bolts (#1). 2014 AFG Baby Furniture M668 Assembly Sheet ©...
  • Page 18 Step 2: Attach Guard Rail (Q) to Head Board Toddler Bed (A) by using total 2 Bolts (#3) and 2 Bolts (#1), and Bolts (#5) Tighten firmly with Wrench (#13). 2014 AFG Baby Furniture M668 Assembly Sheet ©...
  • Page 19 M668 Day Bed Assembly Sheet Step 1 : Remove Back Panel (E), Front Panel (F) and Left & Right Panel (A) by removing 8 Wood Dowels (#5) and 8 Bolts (#1). 2014 AFG Baby Furniture M668 Assembly Sheet ©...
  • Page 20 Step 2: 2014 AFG Baby Furniture M668 Assembly Sheet ©...

  • Page 21: Care And Maintenance

    DO NOT return products to the store once a product is used, it cannot be resold and the materials and energy invested in the product would go to waste. In the event that AFG determines that a defect that may result from customer abuse or misuse, we will contact you with information about services and methods to prevent occurrences.
