V600
Issue 2 Jan 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bofa V600

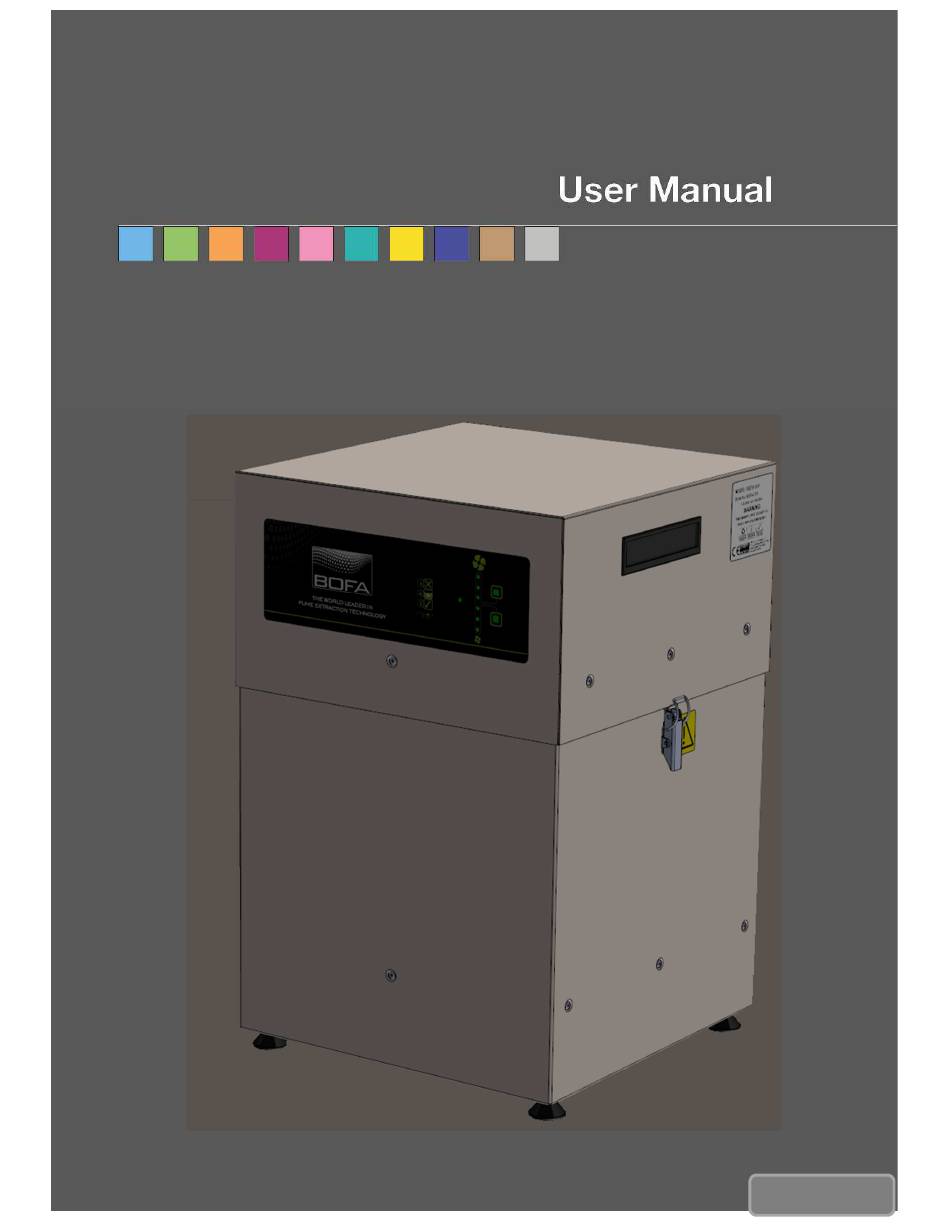

  • Page 1 V600 Issue 2 Jan 2017...
  • Page 3 Overview Control Panel Handles Clips Feet...
  • Page 4 Overview Air Outlet Air Inlet Motor Cooling Mains Isolation Switch Mains Inlet Override Switch Signal Cable Inlet...
  • Page 5 Filter Blocked Company Branding Flow Filter 75% full Adjustment System Running Clean VOC Alarm...
  • Page 6: Safety Instructions

    Refers to a possibly harmful situation. If not avoided, BOFA Technical Service damage could be caused to the product or something in its If problems arises with your V600 unit or if it displays a fault environment. code, please contact us: Important (Refer to manual) •...
  • Page 7 Location: right face of unit, top right corner. Warning and Information labels Meaning: This label contains a variety of information about The following listing details labels used on your V600 unit. the extraction unit, including. Goggles, Gloves & Mask Label •...
  • Page 8: Before Installation

    Before installation Packaging Removal & Unit Placement Before installation, check the extraction unit for damage. All packaging must be removed before the unit is connected to the power supply. Please read all instructions in this manual before using this extractor. Move the unit to the location where it is going to be installed and remove the outer packaging.
  • Page 9: Installation

    Installation The V600 has been designed to remove and filter fume Enclosures containing potentially hazardous particulate and gases The extraction hose and nozzle can be attached to the generated during manufacturing processes. Such hazardous enclosure surrounding the marking zone provided that the substances are captured within a multistage filtration extraction point is within 50-75mm of the marking point.
  • Page 10 Capacity:350m Connection to Power Supply Please follow the above specification when selecting the power supply outlet for the V600 system, ensure the power supply is suitable before connecting the V600 system. Connection to extraction unit Check the Integrity of the electrical power cable, if the...
  • Page 11 Optional added features blocked. The V600 can be configured to suit customer specification. These optional extras would be discussed, arranged and installed prior to This feature will not directly stop the extractor from running delivery.
  • Page 12: Operation

    Remote Speed Control The V600 features manual flow control. This enables the If your V600 extraction unit is installed with this optional user to set the required airflow rate. Over time as the filters extra the airflow can be remotely controlled from a begin to block the user should manually increase the motor controller run from the unit on a signal cable.
  • Page 13: Maintenance

    Filter Information Maintenance A log of filter changes should be maintained by the user. The filters require attention when the display shows the configuration shown on the next page or when the extractor no longer removes fume efficiently. It is recommended that a spare set of filters are kept on site to avoid prolonged unit unavailability.
  • Page 14 Filter Replacement If the VOC (Volatile Organic Compound) alarm option is During use, the V600 will alert the user when its filter needs installed in your V600 unit, the extractor will monitor and replacing. When the filter needs to be changed, the LED to detect the level of VOC particles in the air.
  • Page 15: Replacement Parts

    Consumable Spares Deposit Comment The V600 extraction system contains two filters. These Listing* should be replaced when instructed to do so by the V600 15 02 03 Can be disposed of as non- system (see section for replacing the filters) Hazardous hazardous waste.
  • Page 16: System Specifications

    System Specifications Unit: V600 Capacity: 350 m³/hr (206cfm) Weight: 35Kg (77lbs) Motor: Centrifugal Fan Output: 1.1Kw Electrical supply: 115-230V Hertz: 50/60Hz Full Load Current: 12.5 A Noise Level: Below 54dB (A) (at typical operating speed) Size: Metric Imperial (mm) (inches) Height 23.1...
  • Page 17: Contact Information

    Contact Information BOFA Headquarters 21-22 Balena Close Creekmoor industrial Estate Poole Dorset BH17 7DX Phone: +44 (0) 1202 699444 BOFA Americas 303 S.Madison Street Staunton Illnois 62088 Phone: 001 (618) 205-5007...
