    BDP SERIES Contents BDP HEAT PUMP DESCRIPTION ....................3 1.1. - INTRODUCTION........................3 1.2. - COMPONENTS ........................6 1.2.1 - CASING ..........................6 1.2.2 – FILTERS SECCTION......................6 1.2.3 – COILS SECCTION ....................... 6 1.2.4 – VENTILATION SECTION....................7 1.2.5 –...

  • Page 3: Bdp Heat Pump Description

    BDP SERIES 1. BDP HEAT PUMP DESCRIPTION 1.1. - INTRODUCTION. Due to natural evaporation, the pool loses steam continuously to environment. For example, a pool of 32 m evaporates an average of 110 litres a day (27º C water), with people occupation in the pool this evaporation increases.
  • Page 4 BDP SERIES In summer and periods of milder temperatures, the outside air will sometimes higher heat content than the return air dehumidified. During this period, the return air would be expelled and only outside air would be supplied, properly dehumidified and heated (or the most appropriate mix in Mixture Chamber) to the pool room.

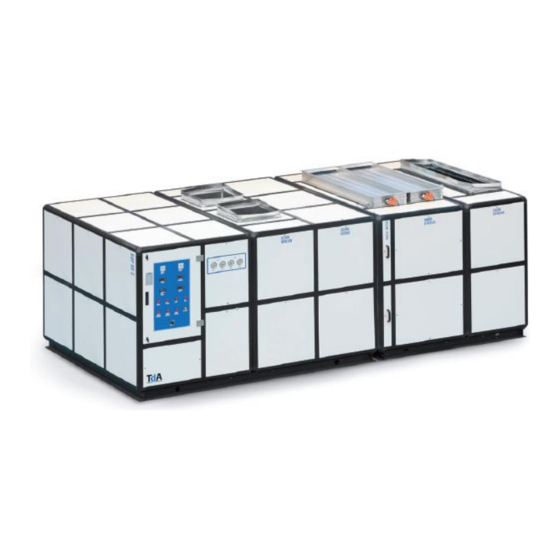

  • Page 5 BDP SERIES HEAT PUMP BDP THE SOLUTION FOR HEATING AND AIR CONDITIONING IN THE POOL The BDP heat pump (dehumidifier unit), is used for dehumidification of indoor pools environment, using the latent heat of vaporization and the own performance of the equipment, to heat pool water and air from the pool room.

  • Page 6: Components

    BDP SERIES 1.2. - COMPONENTS 1.2.1 - CASING The BDP Heat Pumps casing, attends especially to the following criteria: waterproof, strength, accessibility and aesthetics. Waterproof is achieved by coated galvanized steel panels with plastic coated on the outside (plastic film PVC) or aluminium (see options) also thermo-acoustic protection (profiled foam) and anticorrosive inside (5µ...

  • Page 7: Ventilation Section

    BDP SERIES In our standard models the heating fluids is water, reheat coils use copper pipes and coated aluminium fins in order to resist in corrosive environments. - Condenser coil is used for drying and warming the air due to R-407C refrigerator Condenser coil are made of copper pipes and coated aluminium fins in order to resist in corrosive environments.

  • Page 8: Options

    BDP SERIES You can optionally add tubular or plate heat exchanger powered by hot water from a power plant, or electric exchanger. "Any component or method for heating the wáter additional to the ones already installed in our machine, has to be installed (mandatory) after the pool wáter outlet (hydraulic circuit) of the dehumidifier"...

  • Page 9: Control Section

    BDP SERIES 1.2.8 – CONTROL SECTION. Full system, installed and tested to ensure optimal performance with minimal power consumption at all times. The electric box in standard models is composed of: * Main RCD switch. * Magneto-thermal switch * Phase Control.
  • Page 10 BDP SERIES Phase Safety Magneto- Control Main RCD Fastener thermal switches Breaker 24V Power supply Relays Contactors Soft Electronic Starter Thermal relay Siemens Regulation modules Comunication Protocol Interconnect Power terminals terminals Touch Display Emergency Stop switch The control panel in standard models is mounted on the machine front (depending on...

  • Page 11: Installation

    BDP SERIES * Emergency stop switch. * Touch Display Controller All devices include adjustable enthalpy control unit fully automatic with proportional control of the gates in free-cooling models, and possibility to network (BARNET, MODBUS, and LON communication protocol). 2. PERFORMANCE MANUAL, INSTALLATION AND MAINTENANCE 2.1- INSTALLATION...

  • Page 12: Water Capacity Hydraulic Circuit

    BDP SERIES WARNING: All pipe installation should be carefully cleaned and rinsed. The filters should be cleaned and rinsed or replaced if necessary. If an acid is used to clean the circuit, the evaporator must be bYPASSED. Then, the circuit will be carefully rinsed with water or with a mild product.

  • Page 13: Device Emplacement

    BDP SERIES Please check that goods are according to your order and to the delivery note. Handling facilities must be according to the size and weight of the machine 2.2.2. – DEVICE EMPLACEMENT Check the placement of the unit, their level and the measures provided for maintenance are respected.
  • Page 14 BDP SERIES INSTALLATION AND STARTING UP OF EXTERNAL CONDENSER 1. External condenser pipeline design. 2. Claping elements placement. 3. Set up pipes from the machine to the external condenser. 4. Set up wiring from the machine to the external condenser.

  • Page 15: Starting The Machine

    BDP SERIES 2.2.3. – STARTING THE MACHINE Water circulation pump in operation: Heat Pump starts turning the switch "ON / OFF" this includes in its aluminum dashboard. If the unit does at not start check: - The water flow controller switch.
  • Page 16 BDP SERIES B) COMPRESSOR STOPS TROUBLE DETECTED PROBABLE CAUSES SOLUTIONS High pressure switch switched See F See F off. Low pressure switch switched See I. See I. off. Internal compressor a.- Voltage too low a.- Claim to the company protection switched off.
  • Page 17 BDP SERIES F) HP TOO HIGH TROUBLE DETECTED PROBABLE CAUSES SOLUTIONS The air from the condenser is Condenser air insufficient or Check fan function. too hot. very hot. The air from the condenser is Condenser and filter is very Clean it.
  • Page 18 BDP SERIES HEATING CIRCUIT: A) COMPRESSOR DOESN’T START TROUBLE DETECTED PROBABLE CAUSES SOLUTIONS No power supply Main switch, emergency stop Check and connect. is opened No voltage at the compressor El automático ha saltado. Tighten or replace. terminals. Contacts of one security The automatic switch is Reset.
  • Page 19 BDP SERIES E) LOW INSTALLATION PERFORMANCE TROUBLE DETECTED PROBABLE CAUSES SOLUTIONS Expansive valve whistles Lack coolant Add coolant Variation of the refrigerant Dirty filter drier Clean filter temperature at the height of the filter or expansion valve. Intermittent or continuous a.- Blocked or obstructed...

  • Page 20: Regulation Elements

    BDP SERIES Performance loss Expansive valve blocked Clean or replace expansive valve Environmental temperature Control thermostat contacts Repair or replace the cold too cold. locked in closed position. control thermostat. Excessive superheat. Too high pressure drop in the Check that the external evaporator equalizer is not obstructed.

  • Page 21: Preventive Maintenance

    BDP SERIES 2.3. - PREVENTIVE MAINTENANCE WARNING: When the unit will be stopped for long time, we recommend removing the equipment from the installation or periodically ventilate the room where it is located. Due to wet and chlorinated environment where it is emplacement, causing fast deterioration of the electronic components.
  • Page 22 BDP SERIES ANNUALLY - Cleaning of the finned coil and fluid retention tray with bactericide and germicide trying not to damage or destroy the efficiency of the battery. - Replace filters. This list is indicative and not definitive. They can add any maintenance as we deemed appropriate.

  • Page 23: Annex A-Technical Features & Cooling Circuit

    BDP SERIES ANNEX A-TECHNICAL FEATURES & COOLING CIRCUIT 1. TECHNICAL FEATURES...
  • Page 24 COOLING CIRCUIT-ONE CIRCUIT MODELS...
  • Page 25 3. COOLING CIRCUIT-DOUBLE CIRCUIT MODELS...

  • Page 26: Annex B- Optional Hydraulic Circuit

    SERIES BDP ANNEX B- OPTIONAL HYDRAULIC CIRCUIT 1. HOT/COOL WATER COIL...
  • Page 27 SERIES BDP For different temperature increases consult technical features sticker 2. CONDENSER...

  • Page 28: Annex C-Main Dimensions

    SERIES BDP ANNEX C-MAIN DIMENSIONS...

  • Page 29: Annex D-Electric Diagram (Control)

    SERIES BDP ANNEX D-ELECTRIC DIAGRAM (CONTROL)

  • Page 30: Annex E-Electric Diagram (Power)

    SERIES BDP ANNEX E-ELECTRIC DIAGRAM (POWER)

  • Page 31: Annex F-Terminal Diagram

    SERIES BDP ANNEX F-TERMINAL DIAGRAM...

  • Page 32: Annex G-Plugs

    SERIES BDP ANNEX G-PLUGS...

  • Page 33: Annex H-Warranty Certificate

    SERIES BDP ANNEX H-WARRANTY CERTIFICATE 1. WARRANTY COVERAGE 1.1 In accordance with these provisions, the salesman guarantees that the product corresponding to this warranty (“the product”) does not present any non-conformance at the moment of its delivery. 1.2 The warranty period of the product is of two (2) years and it will take effect as of the time of delivery to the buyer. 1.3 If a Product non-conformance occurs and the buyer notifies it to the salesman during the Warranty Period, the salesman should repair or replace the Product at his own cost in the appropriate place, unless it is impossible or disproportionate.

  • Page 34: Annex I-Declaration Of Conformity Ce

    SERIES BDP ANNEX I-DECLARATION OF CONFORMITY CE DECLARATION OF CONFORMITY We, Manufacturer “Talleres del Agua, S.L.”, hereby declare under sole responsibility, that the following equipment: Product Name: BOMBAS DE CALOR, DESHUMIDIFCADORES, CLIMATIZADORES. Models: BDP - CL Manufactured by: Talleres del Agua S.L. Polígono Industrial de Barros, parcela 5 Los Corrales de Buelna 39400, Cantabria SPAIN.
  • Page 35 SERIES BDP WE RESERVE THE RIGHT TO CHANGE ALL OR PART OF THE FEATURES OF THE ARTICLES OR CONTENTS OF THIS DOCUMENT WITHOUT NOTICE...
