- Page 2 Please make a call to our Line during our business hour Monday-Friday (9:00am-6:00pm) TEL: +886-2-2999-1906 Or, you can visit Kupo's official website at the following URL: www.stage.com.tw Or, you can send email to our official address: kupo@seed.net.tw To obtain more product-related information please do not hesitate to contact : KUPO CO.,LTD...

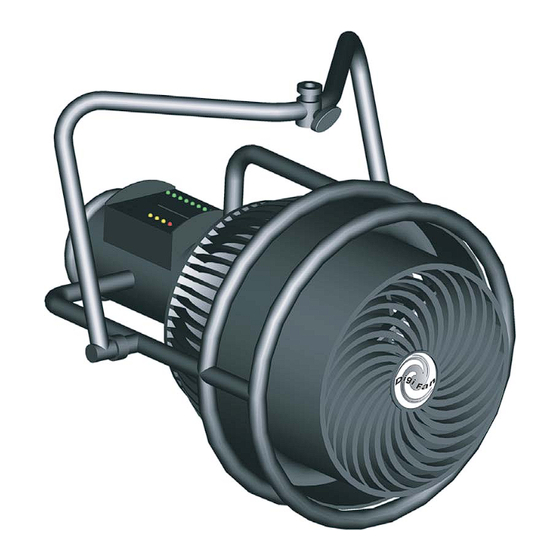

- Page 3 *************************************************** Introduction DigiFan DF-500 features DMX as standard with XLR5 pin connector and with wide range power input for 100-120V & 220-240V. The remote controlled box including: DMX setting, 9 programs memory setting, volume control and turbo. The fan housing is contructed from a molded light- weight plastic venting device with rugged tubular steel surrounded for transport and protection.
- Page 4 *************************************************** Specification DMX controller box DMX controller box controller bracket cover cover blade blade power supply box supply box Front Figure. Front Figure. motor motor fuse switch switc 10A/250V Rear Panel Close-Up knob knob body body bracket bracket Back Figure. Back Figure.
- Page 5 *************************************************** Dimension & Speed Chart Dimension: 480(W) x 560(H) x 460(T) mm Weight: 12.5kg motor speed wind speed ***************************************************...
- Page 6 Always use a secure secondary attachment that can hold at least 10 times the weight of the machine. Rigging clamps are available as accessories from KUPO Co.,Ltd. Rigging clamps: (a) KCP-836 stud coupler, which is incorporate a 16mm(5/8") stud...
- Page 7 Fan. (weight of the fan is 12.5kg, so the supporting weight of the stand must be higher than 12.5kg) The stand would be available to have from KUPO Co.,Ltd. Stands: (a) 310M Low Mighty Stand (supporting weight:35kg)
- Page 8 *************************************************** Master & Slave Installation Connect the DMX-output of the master fixture in the data-chain with the DMX-input of the first salve. Always connect output with the input of the next slave until all slaves are connected (up to 9 devices). Caution: It is necessary to insert the XLR termination plug (with 120 Ohm) into the input of the master device and...
- Page 9 *************************************************** Operation-DMX Controller Box XLR 3 pin male coonector A. Function Mode: DMX512, for DIGIFAN Power Driver Program, Manual Slider B. Setting Mode: DMX Address, Program Edit, Erase All Select Mode by these 4 option Local or DMX Switch Slider Control: 1.
- Page 10 *************************************************** A. Function Mode - press "Menu" key to select "DMX512", "Program",or "Slider" mode as a control system - press "Enter" key to move forward to the mode you select (a) DMX512 mode -control the signal by DMX512 console -set the DMX512 channel address at "setting" mode -press "Full Speed"...
- Page 11 *************************************************** (c) Slider mode -use manual "slider" to control fan speed - press "full speed" key for 100% Fan speed menu menu menu full speed full speed full speed (setting mode (slider mode) ("DMX Address9") "DMX Address") B. Setting Mode - press "Menu"...
- Page 12 *************************************************** to select (only at program 6-9, because program 1-5 is built-in as pre-set is fixed) -press "Enter" key, you would be enter into setting mode (at this moment, the pre-set memory would be erased) -use manual "Slider" key to record the first step slider level, but you would have to -press "Enter"...
- Page 13 *************************************************** Fan Operation Using Fan with Smoke Machine: When using a fan in combination with a smoke machine, fog machine or hazer place the fan behind or beside the machine as illustrated below ( photo A & B). Do not place the fan in front of the fog machine (Photo C) and direct the output from the fog machine into the fan, as this will cause undesirable residue build-up and the fan blades will degrade the quality...
- Page 14 If you have any question about how to operate the machine safely, please contact a Kupo for assistance. Preventing a Electric Shocks 1.
- Page 15 7. Do not operate the machine if the power cable or connector is damaged. A damaged cable or connector must be replaced with a new item, available from KUPO Co.,Ltd 8. Do not operate the machine with damaged, deformed or missing parts Preventing Injuries 1.
- Page 16 *************************************************** Maintenance Any service procedure not described here should be referred to a qualified technician. Disconnect the fan from power before removing anything. Cleaning Clean the outside of the fan with a damp cloth only. Do not use solvents. Periodic cleaning of the fan blades and grills is necessary to maintain peak performance.
- Page 17 *************************************************** Troubleshotting Problem Probable causes Suggested remedy No light from status LEDs on No power Check power supply and DMX control box or fan connection DMX control box not connect Check connection both well outside 3pin XLR and inside connection (showed photo 1-1 &...
- Page 18 *************************************************** Photos illustrate Photo 1-2 Photo 1-1 Photo 2 Photo 3 Photo 4 Photo 5 Note: If that is necessary to take out the power supply box. It is simple just unscrew the 4 screws on rear tubing then pull out the power supply box. (Photo 5) ***************************************************...
- Page 19 *************************************************** Accessory Photos KCP-703 clamp KCP-836 clamp KCP-100B black KCP-100S silver KCP-844 clamp 350 Runway Base STand 310M Low KS-200 adaptor Mighty Stand 28mm/16mm stud ***************************************************...
- Page 20 TAIPEI OFFICE 6F. NO.4, LANE 609, SEC.5, CHUNG-SHIN RD., SAN CHUNG, TAIPEI, TAIWAN TEL: +886-2-2999-2906 FAX: +886-2-2999-2955 WWW.STAGE.COM.TW KUPO@SEED.NET.COM.TW...
