Proudly Distributed By
OPERATING INSTRUCTIONS

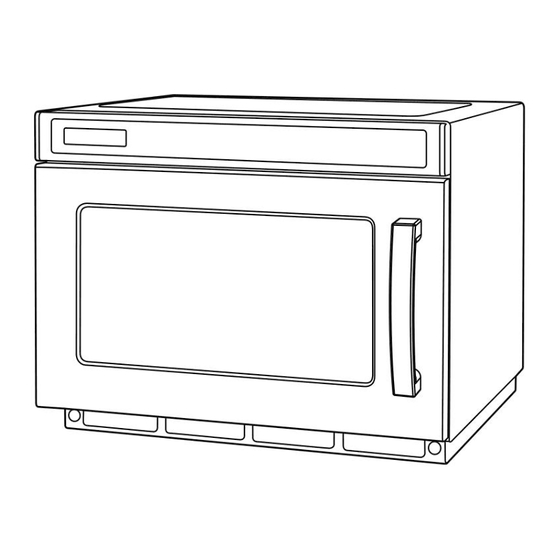

COMMERCIAL MICROWAVE OVEN
Models:
RM2117
Version 1
Features: Dual Magnetron
Stackable, up to 2 microwaves
2100W Power Output
Stainless Steel Construction
Ceramic Base
15A Plug
Internal Capacity 17L
100 Programmable menus + Multi-stage cooking
32kg
Advertisement
Table of Contents
Related Manuals for ROBAND Robatherm RM2117
Summary of Contents for ROBAND Robatherm RM2117

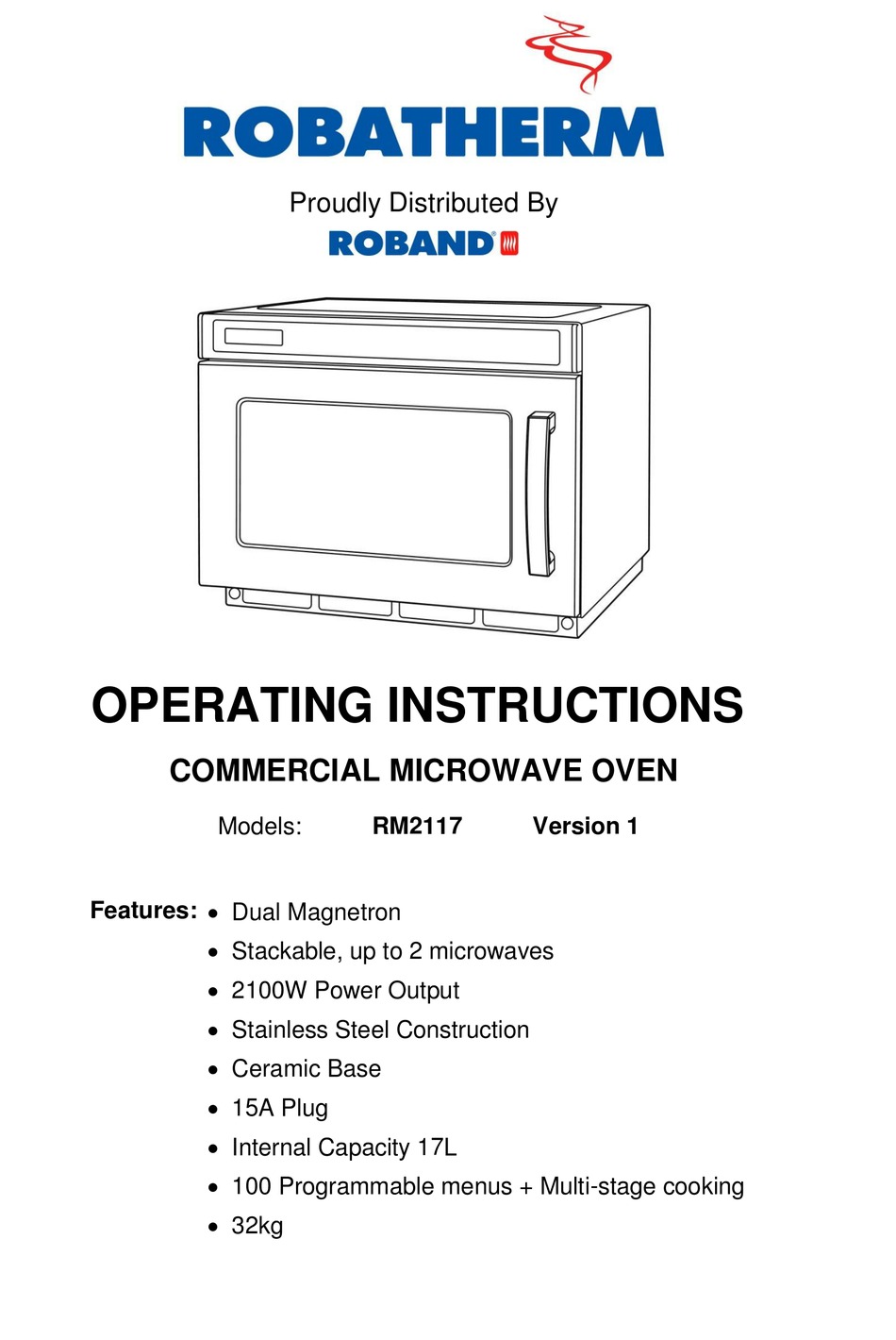

- Page 1 Proudly Distributed By OPERATING INSTRUCTIONS COMMERCIAL MICROWAVE OVEN Models: RM2117 Version 1 Features: Dual Magnetron Stackable, up to 2 microwaves 2100W Power Output Stainless Steel Construction Ceramic Base 15A Plug Internal Capacity 17L ...
- Page 2 Australia is a wholly Australian owned company and has been manufacturing quality commercial catering equipment for the food service industry for more than 50 years. Roband products are engineered and manufactured to the highest standards to provide functionality, reliability and durability, and our quality products are exported world-wide.
-
Page 3: Table Of Contents
CONTENTS SPECIFICATIONS ....................3 SAFETY ......................4 CLEANING, CARE & MAINTENANCE ..............5 INSTALLATION ....................7 OPERATION ....................... 8 NORMAL COOKING - MANUAL OPERATION ........... 8 STAGED COOKING ................... 9 PROGRAMMED MENU OPERATION ..............9 PROGRAMMED MENU SETUP ............... 10 ON THE FLY COOKING ................... -
Page 4: Safety
SAFETY GENERAL SAFETY WARNINGS Read and follow all instructions in this manual prior to using this product This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 5: Cleaning, Care & Maintenance
If the supply cord is damaged it must be replaced by a cord set supplied by Roband. Internal maintenance should only be performed by a Roband appointed service agent or similarly qualified person in order to avoid a hazard. - Page 6 interior. Clean the interior with a cloth soaked in warm water with mild detergent dissolved in it, and then rinse the soap off with a damp cloth. Filter Cleaning: It is important to clean the air filter regularly to avoid clogging and overheating the microwave.
-
Page 7: Installation
INSTALLATION IMPORTANT: DO NOT USE THE MICROWAVE DOOR HANDLE TO LIFT THE MICROWAVE OVEN. Remove all the packaging materials, tape and any protective film on the microwave and inside the oven cavity. Examine the microwave oven and report any damage immediately. Do not attempt to use the oven if there is damage ... -
Page 8: Operation
OPERATION (1) DEFROST: Defrost cooking mode (6) X3: Triple quantity setting (2) USB: To program menus using USB drive (7) NUMBERS 0-9: Program menu and input (3) POWER LEVEL: Used to set Power (8) STOP / RESET: Stop cooking & clear display (4) TIME ENTRY: Press to enter cooking time (9) START: Begin cooking (5) X2: Double quantity setting... -
Page 9: Staged Cooking
STAGED COOKING The microwave can cook in sequences of up to 3 Time / Power settings which run sequentially without further input from the user. The display will show the total time while cooking. Stage 1 1) Open the door and insert food in the oven. Close the door. “Ready” will display. -
Page 10: Programmed Menu Setup
PROGRAMMED MENU SETUP 1) Open the door 2) Press and Hold ‘1’ for 5 seconds. The display will read “PROGRAM” 3) Enter the Program number to be changed - ‘0-9’, OR ‘00-99’ when 100 programs is enabled. 4) Set cooking time using numeral keypad 5) Set Power level by pressing ‘Power Level’... -
Page 11: Load Programs From Usb
LOAD PROGRAMS FROM USB Programmed Menu’s 0-19 can be set up using the USB connection with the MenuEdit software. 1) Insert USB card into PC based computer. 2) Run AutoMenu_Setup.exe (as administrator.) Install MenuEdit software. 3) Open MenuEdit software. 4) Set the total maximum time for any Programmed Menu button. 5) Enter the minutes, seconds and power for first Programmed Menu. -
Page 12: Double And Triple Quantity Function
8) To load the programed menu’s into the microwave, insert the USB into the socket on the front panel of the microwave and press the ‘USB’ button while in Ready mode. 9) Remove the USB drive once the program has finished loading. “SUCCESS”... - Page 13 5) After modifying desired settings, press ‘Stop’ and close door to exit. Oven will enter back into ‘Ready’ mode. Option Setting Description OP:10 3 seconds beep Buzzer Tone OP:11 Continuous beep OP:12 5 quick beeps, repeating OP:20 Beeper Off OP:21 OP:22 Buzzer Volume Medium...
-
Page 14: Restore Factory Defaults
RESTORE FACTORY DEFAULTS Follow the steps below to return the unit to factory default settings. Note: all programmable menus will be restored to default by this procedure. 1) In ‘Ready’ mode press and hold ‘Start’ and ‘0’ together for 5 seconds, until buzzer sounds and ‘CHECK’... -
Page 15: Warranty
& interlock switches etc., other than those arising from manufacture or material defects. Roband or any subsidiary company or Agent shall not be liable for loss of profit or damage to other equipment and property except where it is in breach of the guarantees provided in accordance with applicable legislation. - Page 16 OTHER PRODUCTS BY ROBAND: FRY-POD FRYER DRINK MIXERS SYCLOID CONVEYOR TOASTER GRILL STATION VITAMIX BLENDER NOAW SLICERS Manufactured/Imported in Australia by: Authorised Distributor/Agent...
