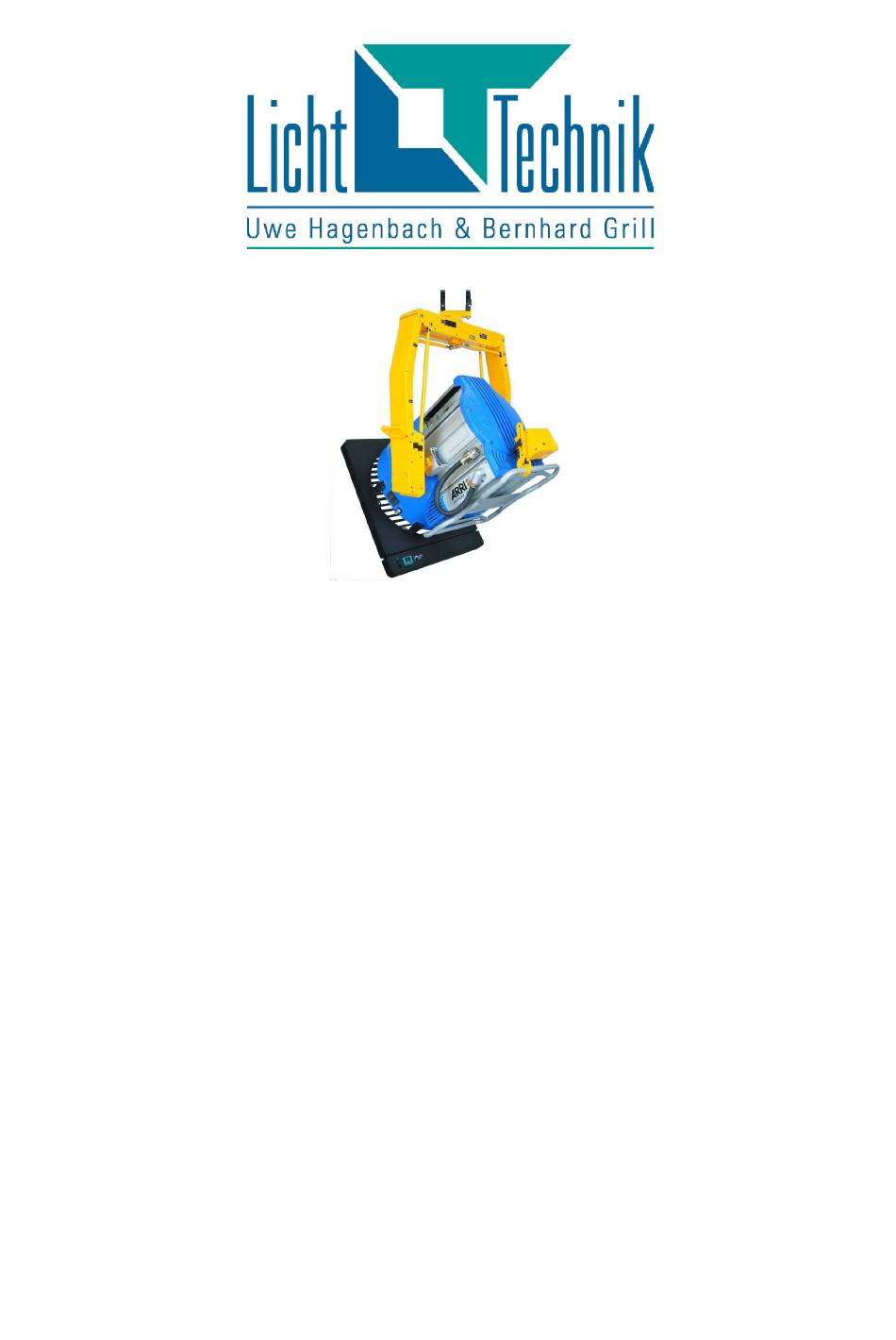

Motoryoke BigBee
MB-D1
Software version 4.56
Functional description
Fabrication and marketing
Licht-Technik Vertriebs GmbH
Hagenbach & Grill
Osterwaldstr. 9-10 80805 München
Tel. 089-360528-0 Fax 089-360528-30
Last updated on: 15/10/19 Rev.: 1.06
Motoryoke MB D1 V4.56 Rev 1.06
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Motoryoke BigBee MB-D1 and is the answer not in the manual?

Questions and answers

Related Manuals for Licht-Technik Motoryoke BigBee MB-D1

Summary of Contents for Licht-Technik Motoryoke BigBee MB-D1

  • Page 1 Motoryoke BigBee MB-D1 Software version 4.56 Functional description Fabrication and marketing Licht-Technik Vertriebs GmbH Hagenbach & Grill Osterwaldstr. 9-10 80805 München Tel. 089-360528-0 Fax 089-360528-30 Last updated on: 15/10/19 Rev.: 1.06 Motoryoke MB D1 V4.56 Rev 1.06...
  • Page 2 Caution! Operate the device only after having read and understood operating instructions (page 4)! Motoryoke MB D1 V4.56 Rev 1.06...

  • Page 3: Table Of Contents

    Table of content Safety- and operating instructions..................4 Quick start guide........................8 Identification........................14 The Licht-Technik Motoryoke..................... 14 The DMX-standard in lighting..................... 15 Cabling..........................16 Getting started........................19 PAN – axis moving range....................20 User interface........................24 Display lighting ON/OFF..................... 24 DMX channels motoryoke....................

  • Page 4: Safety- And Operating Instructions

    Safety- and operating instructions Before opening the housing disconnect the device from the mains !!! Do not try in any case to touch the electronic through openings, also with any objects. This can cause an electrical accident that can lead to death! Please note: The switching or rising/falling from one input voltage range to another during operation can lead to damage of the device! When using a generator, first start the generator and wait for stable mains supply...
  • Page 5 That applies also to the transport. It is absolutely forbidden to hang up the yoke on its spigot when transported! If you want to use a transport carriage, it must be certified by Licht-Technik! The fastening spigot must be checked visual once a year. The spigot must be in right angel to the housing.
  • Page 6 A safety device that was once loaded or is visibly damaged must not be used anymore! When working on the motoryoke, it must be switched off or the power line must be interrupted. Make sure that the Motoryoke cannot be moved by the control panel. The operator must make sure that no person is in the swivelling range of the motoryoke.
  • Page 7 Damages and indirect damages or every kind of costs, which result from the use of – Licht-Technik products. Any damages which result from negligence, improper use and setup, wrong setting into – operation and use, ignoring of valid safety regulations, unsuitable use, bad maintenance of Licht-Technik products. Motoryoke MB D1 V4.56 Rev 1.06...

  • Page 8: Quick Start Guide

    The yoke is ready to mount the lamp. Power off the yoke or switch it off Mounting direction: Front is the side with the Licht-Technik logo. Back is the side with the connectors. Mount the lamp so that the light is in the front.
  • Page 9 Mounting the lampholders (each side one): lampholder connection system Mount the lampholders with one screw Check position for balance point! Tighten the screw Ready mounted lampholders Make sure that the original lampholder is about in middle position. Check if the lamphead is nearly in weight balance! Assembling the yoke: Lift the yoke over the lamp.
  • Page 10 Insert the locking pin. Ready mounted lamp Motoryoke MB D1 V4.56 Rev 1.06...
  • Page 11 Assembling focus drive: If the lamp has a mechanical focus position indicator, move the drive by hand to about middle position. If no mechanical focus position indicator is existing, count the windings of the knob from end to end. Divide this number by two and find the middle position this way. Count the total windings to find the approximate middle position.
  • Page 12 Mount the motorbox. Insert the bolt Focus spindle connection Use the holding system to fix the motorbox on the lamp Ready mounted focus Power on the yoke! (No button pushed!) Motoryoke MB D1 V4.56 Rev 1.06...
  • Page 13 Programming and adjusting the 0% and 100% focus position: Use P03 (detailed description on page 28) for automatic adjustment of this two positions: Press MENU, select P03 with the UP and/or DOWN key. When P03 is indicated press MENU again to gain access.

  • Page 14: Identification

    Type: Show yoke Type: Flexible in width The Licht-Technik Motoryoke The motorised yoke of Licht-Technik is a versatile, precise and powerful device for headlight positioning. Since 1991 the company Licht-Technik designs motoryokes for film, TV and theatre houses. We only use the best components of the world-wide leading companies. The aluminium housings are characterised by high stability, high quality and low dead weight.

  • Page 15: The Dmx-Standard In Lighting

    The lighted LCD display (the light can be switched off) leads the user in plain text instructions through the various programming steps. The instructions are available either in english or german language. The motoryoke has a mechanical and electronical torque delimitation on the PAN and TILT axle.

  • Page 16: Cabling

    Cabling Caution! Please read the operating and safety instructions on page 4 (continuing) before cabling! Make sure that the motoryoke is switched off before cabling! For pinout of cables refer to technical data, page 43. Connectors top: Mains IN Special control IN Mains switch for vision control and LT-Pilot...
  • Page 17 Cabling: Connection to next stirrup (note 1) Mains IN Mains IN LT-Pilot receiver Standard LT-Pilot (wireless control) DMX-desk DMX cable 5pin DataPower Vision control (cabled) cable 4pin (1)Maximum 4 units if Vision Control or LT-Pilot is used! DMX addressing and unit button assignment If you are using a standard DMX desk please refer to the DMX channel layout described on page 25! If the Vision Control or the LT-Pilot is used the following addresses must used and...
  • Page 18 The cables must neither be stretched nor bended! The cables are fixed with cable fixers. The clips are mounted on the back side of the yoke. It is possible to connect a Licht-Technik color changer and/or a dimmer-shutter. Motoryoke MB D1 V4.56 Rev 1.06...

  • Page 19: Getting Started

    Getting started Assemble the lamp like illustrated in quick setup guide on page 8. Setup the motoryoke on the desired place according to the operating and safety instructions, page 4. Mount Focus unit if used. Refer to Quick start guide, page 8. Set the middle position mechanically and roughly of pan axis like illustrated on page 21.

  • Page 20: Pan - Axis Moving Range

    PAN – axis moving range Basically: The PAN-axle is the axle which moves the lamp horizontally. The moving range of the main axles can be adapted individually. For the PAN-axle are two parameters required. The middle position and an angle in which the motoryoke should move.
  • Page 21 Setting the PAN middle position: The middle position normally is the position in which the lamp is used most. You should start with the pan axis in the current adjusted middle position. If you do not know if this is the case, power up the device and set the DMX-channel for position to 50%. Do not forget to set the speed value to 100%.
  • Page 22 TILT – axis moving range Basically: The TILT-axle is the axle which moves the lamp vertically. Normally the factory presettings are suitable and nothing must be set. The lamp can be moved from vertically down to a few degrees on the top. The 0-degree position represents the horizontal even position of the lamp.
  • Page 23 Using the tilt tripping lever: Move the lever on the back side of the yoke. Hold and move the lamp onto the desired 0- position. Now use P06, TILT-axle 0-position, page 30 to fine adjust the new 0-position. Now the angles for the moving range in P12 and P13 can be set. New reference point is the 0-position from before.

  • Page 24: User Interface

    MENU key In normal operating mode the LCD-display indicates different information. The first line shows the Licht-Technik moving text with details on type of device, software version and telephone number. The second line indicates the first DMX-address and its incoming value (8-Bit, 0..255).

  • Page 25: Dmx Channels Motoryoke

    DMX channels motoryoke The following chapters require the DMX-channel assignment of the motoryoke. Please note the difference which is programmed in P27, PAN/TILT DMX speed channel setup, page 36. This menu determines if the speed is given by one or by two channels. Therefore, the motoryoke requires between 5 (without optional components) and 12 DMX- channels.

  • Page 26: P01 Dmx-Address Motoryoke

    P01 DMX-Address motoryoke At this point the first DMX-address of the motoryoke can be adapted to the desired DMX- address of the light mixing panel. This address represents the PAN-DMX-address. All other addresses follow this address. Refer to DMX-channels motoryoke, page 25. Range of values: Address 1..512 Operation: Menü...

  • Page 27: P02 Focus Unit On/Off

    P02 Focus unit ON/OFF At this point an optional Focus module can be switched ON or OFF. If a Licht-Technik focus unit is mounted set this menu to 1, on the other hand if no focus module is mounted set this menu point to 0. The speed of the focus is fixed, so no speed channel has to be set.

  • Page 28: P03 Focus Unit Auto Adjust (0% And 100%)

    P03 Focus unit auto adjust (0% and 100%) At this point the 0% and 100% position can be adjusted. The yoke automatically moves the focus drive from one endpoint to the other. Range of values: invalid Operation: Menü depress You are now on menu level. The last adjusted menu point is displayed, e.g.: Menu P01: DMX address motoryoke depress...

  • Page 29: P05 Pan-Axis Middle Position

    P05 PAN-axis middle position With this function the PAN-axis fine adjustment of the middle position can be made. Please read first chapter PAN-axis moving range, page 20. This function can only be used for fine adjustment. Range of values: 2000..2100 unit (value of the absolute value device) Recommended value: 2048 Operation:...

  • Page 30: P06 Tilt-Axis 0-Position

    P06 TILT-axis 0-position With this function the TILT-axis fine adjustment of the 0-position can be made. Please read first chapter TILT-axis moving range, page 22. This function can only be used for fine adjustment. Range of values: 2000..2100 unit (value of the absolute value device) Recommended value: 2048 Operation:...

  • Page 31: P11 Pan-Axis Moving Range

    P11 PAN-axis moving range At this point the PAN-axis moving range can be programmed. The moving range has as reference point the PAN-axis middle position which can be set in P05, PAN-axis middle position, page 29. For example: If this menu is programmed to 90°, the motoryoke moves 90°...

  • Page 32: P12 Tilt-Down (Negative) Moving Range

    P12 TILT-down (negative) moving range At this point the TILT-down moving range can be set. For the TILT-axis the moving ranges (up and down) must be programmed individually. The negative moving range is defined as the „direction bottom“ range. The moving ranges have the 0-position as reference point.

  • Page 33: P13 Tilt-Up (Positive) Moving Range

    P13 TILT-up (positive) moving range At this point the TILT-up moving range can be set. For the TILT-axis the moving ranges (up and down) must be programmed individually. The positive moving range is defined as the „direction top“ range. The moving ranges have the 0-position as reference point. This point can be set in P06, TILT-axis 0-position, page 30.

  • Page 34: P14 Focus Unit 0%-Value Adjustment

    P14 Focus/rotation unit 0%-value adjustment At this point the position of the focus or the rotation unit for 0% DMX-value can be set. This function is only available, when focus module is switched on. This can be done in menu P02, Focus module ON/OFF, page 27. Caution! The 0%-value must be smaller than the the 100%-value! (P14 smaller than P15) You have the possibility to set this value automatically.

  • Page 35: P15 Focus Unit 100%-Value Adjustment

    P15 Focus/rotation unit 100%-value adjustment At this point the position of the focus or rotation unit for 100% DMX-value can be set. This function is only available, when focus module is switched on. This can be done in menu P02, Focus module ON/OFF, page 27. Caution! The 100%-value must be greater than the 0%-value! (P15 greater than P14) You have the possibility to set this value automatically.

  • Page 36: P27 Speed Pan/Tilt Setup

    At this point the number of speed channels can be set. The speed for PAN and TILT axis can be programmed to one channel for both axis or to two channels. One for each axis. When using the Licht-Technik control panels with Joystick, vision conrtrol or LT-Pliot this Parameter must be set to 1.

  • Page 37: P30 Displaying The Dmx-Value

    P30 Displaying the DMX-value This function assists you in checking the values transmitted by the light mixer panel. At this point you can quickly detect whether the motoryoke is triggered with the correct values. It is possible to check all 512 DMX channels. Note that the value of the address programmed in this menu will be indicated in normal operation.

  • Page 38: P32 Selecting The User Language

    P32 Selecting the user language At this point you can choose in which language the texts and messages should be displayed. Range of values: 0 = German 1 = English Operation: depress You are now on menu level. The last adjusted menu Menü...

  • Page 39: P35 Unit Number Netspider

    P35 Unit number Netspider With this function you can set the unit number for Netspider systems. Range of values: 0..9999 Operation: Menü depress You are now on menu level. The last adjusted menu point is displayed, e.g.: menu P01: DMX address motoryoke depress ...

  • Page 40: P36 Interchanging Pan Moving Direction

    P36 Interchanging PAN moving direction With this function the PAN moving direction can be set. Range of values: 0 = normal (standard) 1 = reverse direction Recommended value: Operation: Menü depress You are now on menu level. The last adjusted menu point is displayed, e.g.: menu P01: DMX address motoryoke depress ...

  • Page 41: P37 Interchanging Tilt Moving Direction

    P37 Interchanging TILT moving direction With this function the TILT moving direction can be set. Range of values: 0 = normal (standard) 1 = reverse direction Recommended value: Operation: depress You are now on menu level. The last adjusted menu Menü...

  • Page 42: P38 Interchanging Focus Moving Direction

    P38 Interchanging Focus moving direction With this function the Focus moving direction can be set. Range of values: 0 = normal (standard) 1 = reverse direction Recommended value: Operation: depress You are now on menu level. The last adjusted menu Menü...

  • Page 43: Technical Data

    Technical data Weights and dimensions Motoryoke: Weight: 79 lbs (36 kg) Total load: 220,5 lbs (100 kg) Total weight: 300 lbs (136kg) Width: min: 31,5” (0,8m), max: 57” (1,45m) Height: 46,5” (1,18m) Depth: 7” (0,18m) Adjustable width for headlight: 12“ (0,30m) to 39“ (1,00m) Mains IN: 100 –...

  • Page 44: Readjustment Of Motoryoke Axis

    Readjustment of motoryoke axis Caution! Only for Licht-Technik trained personal! These works can only be done in a well equipped workshop. It is absolutely forbidden to do these works on ladders or lifts! If a potentiometer has to be changed or disassembled, an adjustment of the potentiometer...

  • Page 45: Factory Presettings

    Readjustment Focus-axis: 1. Disconnect the 5pin XLR-cable from the motoryoke to the focus unit. 2. Move the Focus of the Headlight onto middle position of the moving range. If no knobs for manual moving are installed, the focus motor must be driven by a 12-20V DC power supply.

  • Page 46: Maintenance

    If the spigot is visibly damaged or deformed the motoryoke must not be used anymore. The device has to be sent to Licht-Technik. 2. Checking the safety elements Check the safetybelts and further safetyelements like shackles, rings, lugs, chains: Are the belts not frayed out? –...
  • Page 47 4. Checking the screw connections of the lamp fixings Check all clamping bolts if they are well fixed. – Following maintenance is recommended : Remove dust, especially on electronical parts. Electronic is very sensitive for dust and – reacts with strange behaviour! Keep focus spindle inside the lamp turnable with Loctite 8151 ™.

  • Page 48: Error Messages

    Error messages Only Licht-Technik trained personal is authorised to work on the motoryoke! Error Description Possible reasons Possible solutions E20 DMX-Signal missing Defective supply line (data power) to the Check the DMX-signal cables. motoryoke. (Pin2 and/or 3 broken) The LED „DMX ok“ at the...

  • Page 49: Malfunctions

    Malfunctions - No display after power up. The device houses a slow-blow fuse for feeble currents of 6.30 A protecting the equipment of wrong polarities on the supply line. When the fuse is blown, cable and polarity have absolutely be checked (pin1 = 0 V, pin 4 = +24V). - No error message but motoryoke does not move Check DMX-addressing (P01, DMX-Address motoryoke, page 26).

  • Page 50: Warranty

    All maintenance and servicing works related to the product must be carried out by the company Licht-Technik. Licht-Technik shall not assume any liability for losses or damages of any kind being the results of inexpert servicing. Further information...

  • Page 51: Ec Declaration Of Conformity

    DIN EN 60204-1:2014-10; VDE 0113-1:2014-10 Sicherheit von Maschinen - Elektrische Ausrüstung von Maschinen - Teil 1: Allgemeine Anforderungen (IEC 44/709/CDV:2014); Deutsche Fassung EN 60204-1:2014 A test report is available from company Licht-Technik Vertriebs GmbH This declaration is invalid if the device is changed techically and/or unintended use.

  • Page 52: Fcc Declaration Of Conformity

    FCC Declaration of Conformity NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
