HeatLink Smart System 43304 Installer And User Manual

®
Heat Link
SMART SYSTEM
43304 Smart Plug
Installer/User Manual
HeatLink Group, Inc.
www.heatlink.com
Printed in Canada
L643304 Smart Plug instructions July 11, 2018

Product Compliance

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.

Safety Instructions

Read these instructions before
installing and using the Smart Plug,
and keep this guide in a safe place
for future reference.
Verify compatibility with your home
system before installation.
Follow all instructions provided
regarding the addition of devices to
your Smart System. An authorized,
qualified installer may be required.
HeatLink® accepts no responsibility
for damage caused by not following
these instructions.

Overview

The HeatLink® Smart Plug is an AC switch that allows the user ON/OFF control of the attached
AC appliance and measures the power/energy consumption of the appliance. Supports loads
up to 15 Amps (resistive).
The HeatLink Smart System requires a 43301 wireless gateway, and can be configured with an
®
internet connection (Online), or without (Offline). The free HeatLink
to your Apple or Android device for use with your Online Smart System.
In order to use the app you must first create a profile. Follow the in app instructions to set up your profile.
Apple, the Apple logo, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. App Store
is a service mark of Apple Inc., registered in the U.S. and other countries.
Google Play and the Google Play logo are trademarks of Google LLC.

Pair Mode

In order to add the Smart Plug to your system, the Gateway must be put into Pair Mode -
follow the instructions below. See the device instructions, or the L3715 Smart System Installation
Manual, available on www.heatlink.com, for more information.
HeatLink Heat Link ®
Home
My Status
123 FAKE ST.
Equipment
Everything is set.
Help
Welcome back, Homeowner
Homeowner
My Status is Home
Your Gateway
Your Thermostat
23
ºC
A
Your Thermostat 2 Your Thermostat 3
23 23
ºC ºC
A A

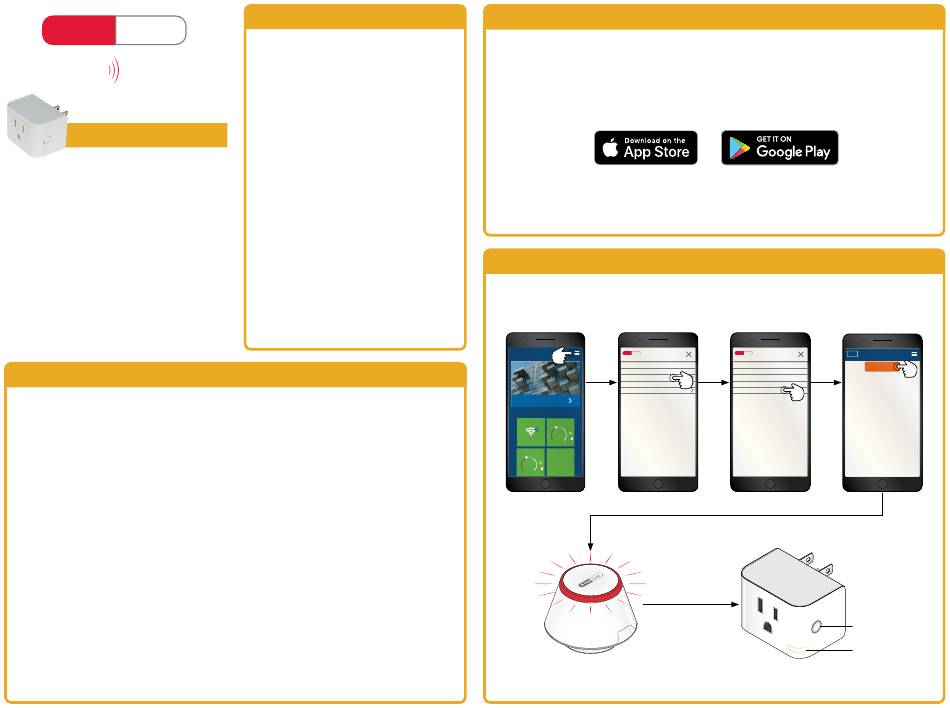

The gateway LED will flash
red when in pairing mode.
App must be downloaded
®
Heat Link ® HeatLink
Back
All equipment Scan for equipment
OneTouch
Alerts
Welcome! Let's connect your
Gateways equipment
Add New Equipment
Before trying to connect your equipment,
please make sure they are ready to begin.
1. Equipment may connect automatically, but
some need a button press. Refer to your
User Manuals.
2. Click the "Scan for equipment" button
above. Your equipment will be found and
appear on screen.
3. If your equipment doesn't appear, click
"Scan for equipment" again.
Multi -button
LED
Plug the Smart Plug into a 120V
receptacle. After a moment it
will pair automatically.
