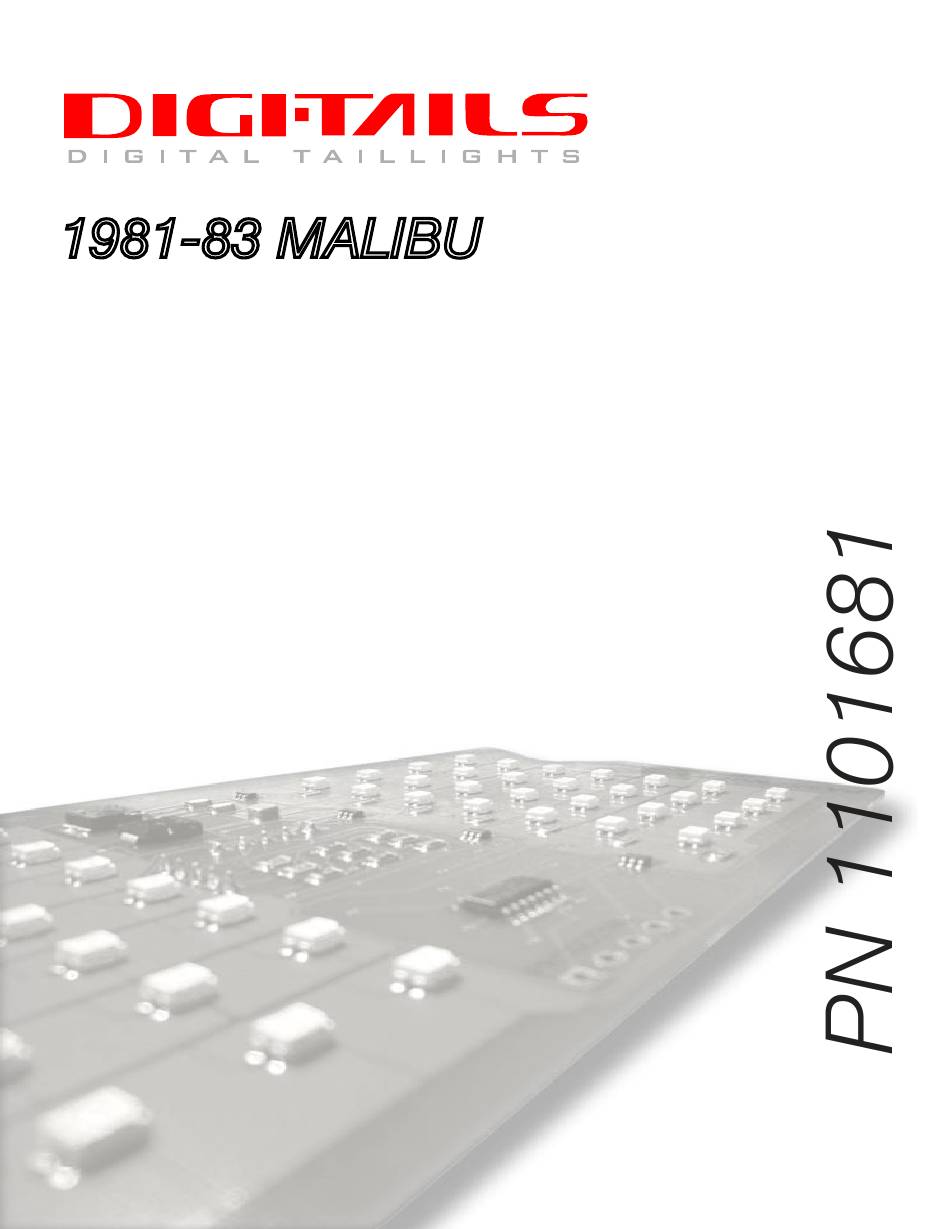

1981-83 MALIBU
Eight panel Sequential LED Taillight
w/LED reverse kit installation guide

Kit Contents:

6 taillight LED panels
2 reverse LED panels
6 rubber grommets
1 power wire with T-Tap
3 Driver side LED harnesses, 24"
3 Passenger side LED harnesses, 48"
6 LED extension harnesses, 12"
3 harness crimp kits
16 mounting brackets
Please refer to website for full warranty information. DIGI-TAILS is not a licensed GM product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1981-83 MALIBU and is the answer not in the manual?

Questions and answers

Summary of Contents for Digi-tails 1981-83 MALIBU

  • Page 1 3 Driver side LED harnesses, 24” • 3 Passenger side LED harnesses, 48” • 6 LED extension harnesses, 12” • 3 harness crimp kits • 16 mounting brackets Please refer to website for full warranty information. DIGI-TAILS is not a licensed GM product.
  • Page 2 1981-83 MALIBU LED PANEL INSTALLATION SEQUENTIAL STANDARD Note POSITION POSITION The LED boards are shipped with the slide switch set to sequential mode. We recommend that all slide switches be set to the same setting (either standard or sequential). Please follow all local laws concerning exterior lighting.
  • Page 3 1981-83 MALIBU LED PANEL INSTALLATION 4. Attach mounting brackets. Both housings will require mounting brackets for the LED panels to attach to. 1. Start with the smallest pocket Measure down 5/8” from the vertical edge. 5/8” down Lip edge 2. Attach an angle bracket with its face on the mark on the mark.
  • Page 4 1981-83 MALIBU LED PANEL INSTALLATION 6. Attach the LED panels. 1. Remove the protective covering from the double sided strips on the angle brackets 2. Plug the TAILLIGHT LED panels into the harness extensions and one by one attach the LED panels in place.
  • Page 5 1981-83 MALIBU WIRE SPLICING INSTALLATION WIRE SPLICING INSTALLATION 1. Review the wiring diagrams found on the last page. Each LED panel needs five connections. Listed are the LED harness colors and their respective function. Note: Depending on make and harness, colors may not match.
  • Page 6 The LED light kits are designed for best performance when use an electronic no-load flasher. Shown here is an optional electronic no load flasher available from DIGI-TAILS, ( PN 20-F2 ) If you decide to use a stock bimetal flasher, we recommend a standard-duty flasher instead of a heavy-duty flasher.
  • Page 7 1981-83 MALIBU WIRE SPLICING INSTALLATION STOCK REAR BODY HARNESS STOCK HARNESS COLORS. BROWN: GREEN: YELLOW ALTHOUGH CLOSED END CONNECTORS ARE INCLUDED, IT IS RECOMMENDED THAT ALL SPLICED WIRES BE SOLDERED TOGETHER FOR BEST CONNECTION RELIABILITY. POWER CONNECTION CONSTANT FUSED POWER SOURCE.
