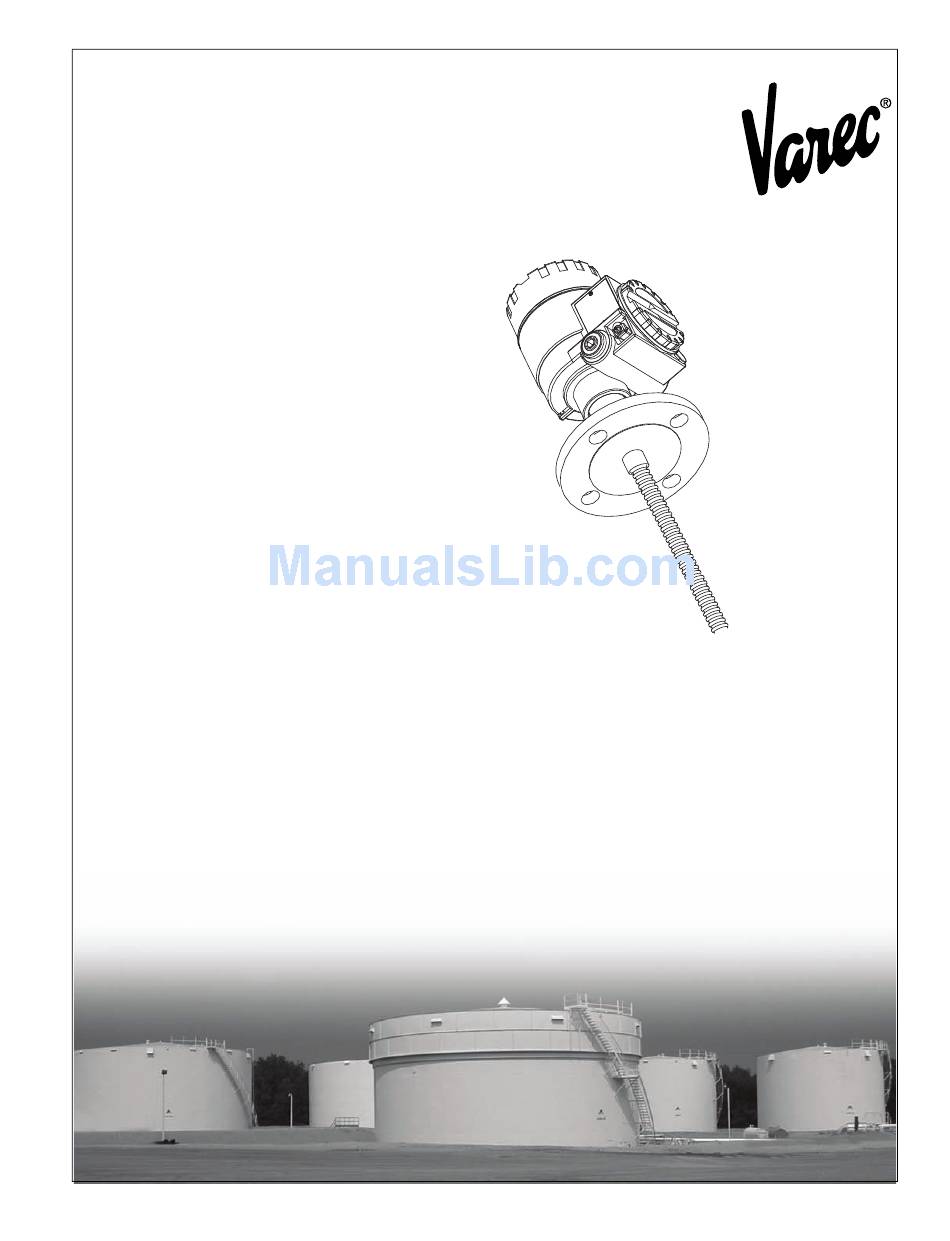

4532 Average Temperature Sensor and Converter Installation and Operations Manual For software version V1.45 5834 Peachtree Corners East, Norcross (Atlanta), GA 30092 USA www.varec.com Varec, Inc. Tel: +1 (770) 447-9202 Fax: +1 (770) 662-8939 IOM019NVAE0208...
Page 3
5834 Peachtree Corners East Norcross (Atlanta) GA 30096 Trademarks acknowledged Varec, Inc. recognizes all other trademarks. Trademarks of other products mentioned in this document are held by the companies producing them. Varec® is a registered trademark of Varec, Inc., a wholly-owned subsidiary of Science Applications International Corporation Varec, Inc.
Varec, Inc. or its suppliers have been advised of the possibility of such damages. Use of parts that are not manufactured or supplied by Varec, Inc. voids any Varec, Inc. warranty and relieves Varec, Inc. of any obligation to service the product under warranty.
Warning! Safety Precautions Read and understand this instruction manual before installing, operating or performing maintenance on the Varec 4532 Average Temperature Sensor and Converter. Follow all precautions and warning noted herein when installing, operating or performing maintenance on this equipment.
Page 6
Average Temperature/Water Bottom Sensor and Converter Installation and Operations Manual...
Page 8
8.1.4 Element Position 1: VH30 ~ VH35 (VH36~VH39 is used only in 4539 ATC) 8.1.5 Element Position 2: VH40 ~ VH45 are not available in 4532 ATC 8.1.6 WB primary and Advanced temp: VH50 ~ VH59 8.1.7 WB Adjustment and Operation Power: VH60 ~ VH69 8.1.8 Temperature Adjustment: VH70 ~ VH79...
Page 9
4532 Troubleshooting 10.1 System error messages ........47 10.2 Spare parts .
Page 10
Contents Average Temperature/Water Bottom Sensor and Converter Installation and Operations Manual...
Refer to Chapter 4, Installation. • Step 3. 4532 ATC initial setup Set up device settings for the 4532 ATC and the local HART setting to the host • instrument. Step 4. Data flow from the 4532 ATC to the host instruments Individual element temperature data: Individual row element temperature can be •...
Introduction System functional diagram Commubox FXA191/195 Power AC 8130 RTU FuelsManager 8300 TGI Software +24V COMM +15V -15V ERROR Figure 1-1: Connection with 7500 Series Radar Tank Gauge and 6000 Series Servo Tank Gauge Average Temperature/Water Bottom Sensor and Converter To F T ool - HAR T FieldT ool...
4532 Safety instructions Installation, commissioning and operation Mounting, electrical installation, start-up and maintenance of the instrument may • only be carried out by trained personnel authorized by the operator of the facility. Personnel must absolutely and without fail read and understand this manual before •...
Make sure of the grounding of the instrument before connecting input and output to another system. Caution! Return The following procedures must be carried out before the instruments is sent to Varec for repair: Always enclose a duly completed "Declaration of Contamination" form. Only then •...
4532 Notes on safety conventions and symbols In order to highlight safety-relevant or alternative operating procedures in the manual, the following conventions have been used, each indicated by a corresponding symbol in the margin. Safety conventions Warning! Caution! Note! Explosion protection Explosion protection Varec, Inc.
Page 16
Safety instructions Average Temperature/Water Bottom Sensor and Converter Installation and Operations Manual...
4532 Identification Device designation 3.1.1 Nameplate Figure 3-1: 4532 ATC labels Figure 3-2: Product label for 453x average temperature devices Scope of delivery Instrument according to the version ordered • ToF Tool (CD-ROM) • Accessories (as ordered) • Varec, Inc.
"Electrical apparatus for potentially explosive atmospheres-General requirements". The instrument described in this manual thus complies with the statutory requirements of the EG directives. Varec confirms the successful testing of the instrument by affixing to it the CE mark. Installation and Operations Manual...
4532 Installation Design, dimensions Figure 4-1: 4532 ATC dimensions Varec, Inc. 142.5 mm Flexible tube depends on the tank height Bottom hook Ф10 Ф26 Installation...
Installation Unpacking When unpacking, be careful not to bend, fold or twist the flexible tube. Please refer to the recommended procedure below. Flexible tube When attaching and bending the flexible tube, the radius of curvature must be at least 300 mm (11.8") at any bend portion. Figure 4-2: Flexible tube Note! Average Temperature/Water Bottom Sensor and Converter...
4532 Installation Instructions Note! All metal parts of the sensor and the transmitter shall be electrically conductive and securely be connected to the potential equalization system within the hazardous area. Special conditions for safe use To exclude ignition sources due to sparks caused by impact or friction, even in the event of rare incidents, do not subject the temperature sensor tube to environmental stress, such as impact from moving parts.
Page 22
Installation Average Temperature/Water Bottom Sensor and Converter Installation and Operations Manual...
• • • Mounting the 4532 ATC at a minimum of 500 mm (19.67") away from the tank shell. This will ensure that the measurement is not influenced by changes in ambient temperature. The procedure for mounting the 4532 ATC on a tank depends on the type of tank.
Insert a gasket and lower the flexible tube from the nozzle on the tank top. Caution! Rotate the 4532 ATC so that you can set up the cabling in the most convenient way. Straighten the tensioning wire, fix the wire end to the top anchor temporarily and lower the wire.
Page 25
Tensioning wire Figure 5-3: Tensioning wire mounting Fix the mounting flange of the 4532 ATC to the nozzle on the tank top using bolts. Note! Draw the end of the tensioning wire as much as possible by hand and foot (see Figure 5-4) Bend the wire and fix it using the nut.
Insert a gasket and lower the flexible tube into the inlet of the stilling well. Rotate the 4532 ATC so that you can set up the cable in the most convenient way. Fix the mounting flange of the 4532 ATC to the nozzle on the tank top using bolts.
Insert a gasket and lower the flexible tube from the nozzle on the tank top. Rotate the 4532 ATC so that you can set up the cabling in the most convenient way. Tighten the tensioning wire between the lower end of the flexible tube and the anchor weight.
Page 28
Mounting Average Temperature/Water Bottom Sensor and Converter Flexible tube Flexible tube Bottom hook Bottom hook Provided wire Provided wire Figure 5-7: Anchor weight mounting Installation and Operations Manual...
Top anchor method The flexible tube is installed in a fixed pipe and stabilized by a top anchor. The 6000 Series Servo Tank Gauge and 4532 ATC can be mounted in the same fixed pipe. Figure 5-8: Top anchor application The installation procedure is the same as for mounting on a fixed roof tank using the top anchor.
Mounting 5.3.2 Thermo well method The flexible tube is inserted into a thermo well in the fixed pipe. Figure 5-9: Thermo well application The installation procedure is the same as for mounting on a fixed roof tank using the thermo well. Average Temperature/Water Bottom Sensor and Converter Electrical compartment Cable entry as specified...
Insert a gasket and lower the flexible tube from the nozzle on the tank top. Rotate the 4532 ATC so that you can set up the cabling in the most convenient way. Tighten the tensioning wire between the lower end of the flexible tube and the anchor weight.
Page 32
Mounting Average Temperature/Water Bottom Sensor and Converter Installation and Operations Manual...
4532 ATC terminal Note! Figure 6-1: 4532 ATC terminal The 4532 ATC has convenient daisy chain HART loop terminals that enable the 4532 ATC to be a terminal junction for HART multi-drop instruments. Varec, Inc. The 4532 ATC allows an intrinsically safe HART connection only. Please refer to the i.s.
Serial pulse, HART Alarm contact Do not connect the 4532 ATC HART communication on terminals 4 and 5 on the 6000 Series Servo Tank Gauge. These terminals are designed to connect Ex d HART communication. 4590 TSM i.s. terminal board 4 ...
The 4590 TSM has three sets of i.s. HART terminals. These three pairs are looped internally. Do not connect signal HART lines from the 4532 ATC to terminals 30 and 31. They are designed to supply drive power for the 7500 Series Radar Tank Gauge only.
Page 36
Wiring Average Temperature/Water Bottom Sensor and Converter Installation and Operations Manual...
The 4532 ATC provides four basic types of data as standard and parameter information via HART protocol, command 3. Configuration to host communication can be performed by a HC (Hand Communicator) or the Varec ToF field service tool to set a specific HART address.
The 4532 ATC specific parameter set up on the 4590 TSM Configuration of 4532 ATC parameters on the display of the 4590 TSM is dependent on the installed software and hardware version of the 4590 TSM. Please refer to the operating manual for the 4590 TSM to determine accessible parameters.
Page 39
The lowest inserted element position in the average temperature probe. Note! Varec, Inc. This parameter setting is only used to change the theoretical element position within the 4532 ATC's software for average calculation purposes. If does not effect the physical location of the temperature element position. Operating...
Page 40
Operating Average Temperature/Water Bottom Sensor and Converter Installation and Operations Manual...
4532 Operation and Description of Instrument Function 8.0.1 HART Device designation HART device code "190": Device code for temperature measurement function in 4532 ATC only. 8.0.2 Device Data Tag Number: read and write Default: HART A customer specific device identification and control number (or name). Tank name, site number, or any other ID can be entered.
Item type: read only Range: -200°C ~ 240°C Display of individual measured element temperature. 8.1.3 Element Temperature 2: VH20 ~ VH29 ( not available in 4532 ATC) VH26 Selec. Ave Method Item type: select Selection: Standard, Advanced Selection of average calculation method.
Page 43
4532 Formula: (T1 + T2 + T3) / # of element in liquid phase = Average temperature (3.5°C + 3.0°C + 2.0°C) / 3 = 2.83°C Advanced: Average temperature calculation with additional factor to compensate for unequal volume distribution (example: liquid temperature)
Page 44
Operation and Description of Instrument Function (3.5°C x 2 + 3.0°C x 3 + 2.0°C x 4) / (2 + 3 + 4) = 2.67°C Spot The same number of elements (resistance and material) are located in each input cable in the probe.
Individual element position from tank bottom. Calculation is automatically performed when element spacing "Even" is selected at VH85. 8.1.5 Element Position 2: VH40 ~ VH45 are not available in 4532 ATC VH46 Hysteresis Width Item type: read and write Default: 10mm Range: 0mm ~ 99999mm Element switching point hysteresis.
Page 46
A function to exclude element (s) from the liquid phase average temperature calculation when the uncovered element(s) is (are) within the entered value from the liquid level. Average Temperature/Water Bottom Sensor and Converter To 4532 ATC Electric housing Temperature Element...
HART loop, this function limits the 4532 ATC power consumption based on the set parameter. Normally, the 4532 ATC requires 6 mA or less current. Use a tester to check the current flow in the loop. Reducing this parameter makes the 4532 ATC use less current.
Default: 200 Range: 0 ~ 255 This parameter is the setpoint for the 4532 ATC power supply failure alarm. The 4532 ATC operates with a minimum 16 VDC supply voltage via the multi-drop HART loop under normal operating conditions. The 4532 ATC transmits an error message when the supply voltage drops below 16 VDC.
Page 49
#5 element now has constant artificial -0.3°C offset resistance based on raw measurement. The 4532 ATC always consists of "Pt100" elements with "Spot" element layout. Do not attempt to change these parameters. Additional sampling # will cause slower reaction time on value switch over. Maxi- mum 1 sampling sequence will take approximately 2 sec.
Page 50
Operation and Description of Instrument Function Average Temperature/Water Bottom Sensor and Converter VH79 Protect Code Item type: read and write Default: 0 Range: 0 ~ 999 Access code 530 required to modify parameters. Device setting 1: VH80 ~ VH89 Installation and Operations Manual...
Page 51
Varec, Inc. Operation and Description of Instrument Function Selection of temperature display unit only applies to reply data from 4532 ATC. Data transmission from host gauge (4590 TSM or 6000 Series Servo Tank Gauge) to 4532 ATC must be performed by °C unit only (terminology of HART command 133)
Page 52
Range: 1 ~ 6 Number of available temperature elements. Do not change the default parameter on the 4532 ATC. The number of elements on this version is pre-determined by the customer's choice. It may cause faulty calculation or an inappropriate error display.
VH90 Device ID Number Item type: read and write Default: 0 Range: 0 ~ 16777214 In order to distinguish own device ID when 4532 ATC is connected in multi drop HART loop. Caution! VH91 Previous Error Item type: read only Display of error history.
Page 54
Operation and Description of Instrument Function Average Temperature/Water Bottom Sensor and Converter VH92 Error Dis. Sel. Item type: select Default: 0_OFF Selection: 0_OFF, 1_ON Type of VH88 "Short Error Value" and VH89 "Open Error Value" display selection. 0_OFF: These 2 error messages will not be transmitted to the connected host gauge. This function automatically excludes defect element in average temperature calculation.
They contain the related replacement instructions. All the spare parts kits which you can order from Varec for repairs to the 4532 ATC are listed with their order numbers on later pages. Please contact Varec Service for further information on service and spare parts.
Maintenance Replacement After a complete 4532 ATC electronic module has been replaced, the parameters must be manually re-entered to the replaced new module in order to maintain the proper operation. Measurement can continue without having to carry out a new setup.
Element exposed Liquid level dropped below #1 element position. Low power supply Supply voltage on multi drop HART loop to 4532 ATC is below 16VDC from designated host instrument. Memory defect Fault during Write and Read (RAM) sequence, not completed.
Troubleshooting 10.2 Spare parts Spare parts are contained in kits. Spare parts which you can order from Varec for the 4532 ATC are shown with their order numbers in the diagram below. For more information on service and spare parts, contact Varec.
11.1 Anchor weight (Tall profile) Caution! Figure 11-1:Anchor weight dimension Different dimension, weight, and material anchor are also available. Consult your Varec representative for further details. 11.2 Anchor weight (Low profile) The low profile anchor weight is a version for an existing tank installation with a small nozzle opening for converter and temperature version.
Actual tensioning can be completed with SUS316 stranded 3 mm diameter tension wire between Wire hook and Top anchor. Based on the application and installation variable, type of wire & size, material, and special coatings are available. Please consult your Varec representative for further details. Figure 11-4:Top anchor dimension Note!
Performance characteristics Reference operating conditions Maximum measured error Varec, Inc. The 4532 ATC performs precise liquid and gas phase average temperature measurement in bulk storage tank applications. • Standard 2" flange installation • Overall 18.5m temperature measurement range Temperature measurement •...
Page 62
Technical data Average Temperature/Water Bottom Sensor and Converter Installation and Operations Manual...
4532 Order Structure 4532 - Varec, Inc. Protection class 7 FM, IS class1, Div.1, Gr. A-D B ATEX, EEx [ia] IIB T4 -T6 Cable entry B Thread NPT 1/2 D Thread M20 Process connection (SUS304) 2" 150lbs RF, 304 flange ANSI B16.5...
Page 64
Order Structure Average Temperature/Water Bottom Sensor and Converter Installation and Operations Manual...
For the safety of our employees and operating equipment, we require that you fill out this form and return it to Varec with your signature before we can fulfill your order. Please include the completed form with the device and shipping documents, along with safety sheets and/or specific handling instructions if appropriate.
Page 66
Declaration of Contamination Form Average Temperature/Water Bottom Sensor and Converter Installation and Operations Manual...
