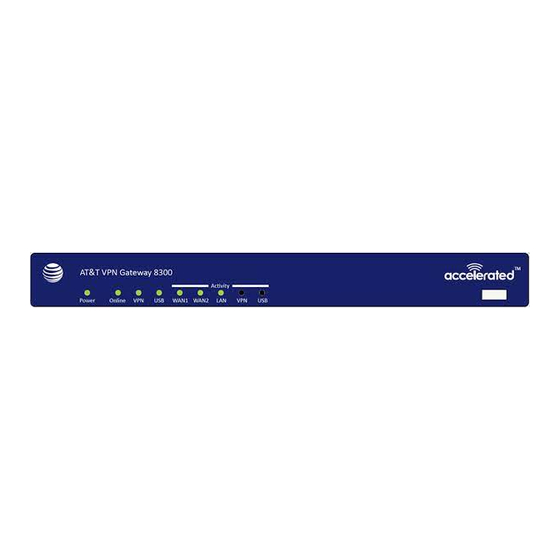

AT&T VPN Gateway 8300
Version 6.0.1
1

Advertisement

Table of Contents
loading

Related Manuals for AT&T 8300

Summary of Contents for AT&T 8300

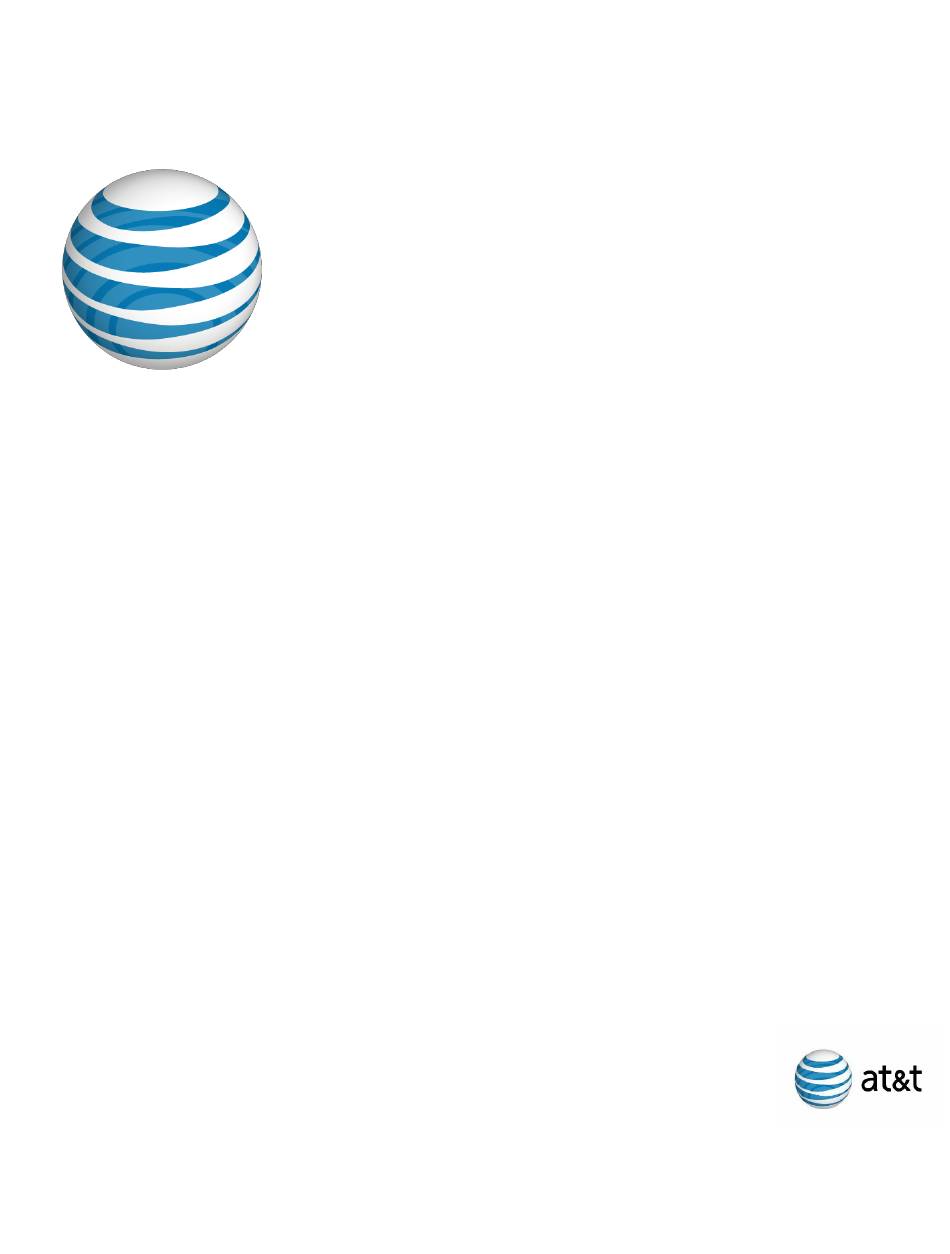

  • Page 1 AT&T VPN Gateway 8300 Version 6.0.1...
  • Page 2 © 2014 AT&T Intellectual Property. All rights reserved. AT&T, the AT&T logo and all other AT&T marks contained herein are trademarks of AT&T Intellectual Property and/or AT&T affiliated companies. All other marks contained herein are the property of their respective owners California Prop 65 Warning: WARNING this product contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm.
  • Page 3 ‫במוצר‬ "    ‫המוצר‬  ‫המוצר‬  ‫במוצר‬  ‫המוצר‬    ‫המוצר‬     Class A ‫היבואן‬ ‫איי טי אנד טי גלובל נטוורק סרויסס אינטרנשיונל‬ 05107 ‫רחוב הנגב 4, קריית שדה התעופה, לוד‬ naveeD : "...

  • Page 4: Table Of Contents

    Installing the AT&T VPN Gateway 8300 ..............................5 Step 1: Establish Physical Connectivity to the Internet ..........................5 Option a. Wired Ethernet Connection ..............................6 Option b. Cellular Connection ................................6 Step 2: Establish Local Network Connectivity ............................6 Configuring the AT&T VPN Gateway 8300 ............................... 7 Access the AT&T VPN Gateway Web Interface ............................

  • Page 5: Installing The At&T Vpn Gateway 8300

    Once an Internet Connection has been established, the AT&T VPN Gateway 8300 will try to retrieve its configuration from the network, and if successful, may perform an automatic reboot to pick up the new configuration. This should occur within the first 2-3 minutes after initial power on.

  • Page 6: Option A. Wired Ethernet Connection

    Step 2: Establish Local Network Connectivity In most cases, your devices will attach directly to the AT&T VPN Gateway 8300 via one of the 8 VLAN ports with an Ethernet cable. The Local LAN ports are auto-sensing, so either a straight-through or a crossover cable can be used interchangeably.

  • Page 7: Configuring The At&T Vpn Gateway 8300

    Configuring the AT&T VPN Gateway 8300 In most cases, no user-level configuration is required as an IP address is retrieved automatically through DHCP and the device configuration is retrieved from the network. In some cases it is necessary to perform some initial configuration through the Web Interface –...

  • Page 8: Primary Ipv4 Wan Interface Set-Up

    Primary IPv4 WAN Interface Set-up To configure the primary interface for something other than DHCP (or to change DHCP settings), follow these steps: 1. Access the web interface as described on page 7. 2. Click on the Control Panel navigation icon. 3.
  • Page 9 Figure 4 will be displayed where you will be given the opportunity to select your primary connection type. Figure 4: IPv4 Settings Window If you are not sure how your Internet Access should be configured, contact your IS department. Two basic types of connection are offered.

  • Page 10: Configuring Dhcp

    Configuring DHCP Figure 4 To configure DHCP, follow these steps after reaching 1. Select the radio button next to “DHCP” on Figure 4 and click OK to proceed to the DHCP set up window. Figure 5 2. Select the DHCP options required by your ISP on .

  • Page 11: Configuring A Static Ip Address

    Configuring a Static IP Address Figure 4 To configure a static IP address, follow these steps after reaching 1. Select the radio button next to “Static” on Figure 4 and click OK to proceed to the Static IP set up window. Figure 6 2.

  • Page 12: Configuring Pppoe

    Configuring PPPoE Figure 4 To configure PPPoE Account information, follow these steps after reaching 1. Select the radio button next to “PPPoE” on Figure 4 on and click OK to proceed to the to the PPPoE set up window. Figure 7 2.

  • Page 13: Configuring An Always-On Cellular Connection

    1. Ensure your supported Cellular USB modem is inserted into one of the three USB ports on the front or back of the AT&T VPN Gateway 8300. 2. Select the radio button next to Cellular in the “Always-On” section and click OK to proceed to the set-up sequence.
  • Page 14 Figure 8: Cellular Always On Settings- Modem Properties Figure 9: Cellular Always On Settings - Login Information...

  • Page 15: Configuring A User Controllable Dial As Primary Configuration

    1. Ensure your supported Cellular USB modem is inserted into one of the three USB ports on the front or back of the AT&T VPN Gateway 8300. 2. Select the radio button next to “Cellular” in the “User Controllable Dial as Primary Connection” section and click OK to proceed to the set-up sequence.
  • Page 16 Figure 10: Cellular Dial as Primary Settings - Modem Properties Figure 11: Cellular Dial as Primary Settings - Login Information...

  • Page 17: Cellular Service Verification

    Cellular coverage can vary, even over a short distance and a bad placement of the AT&T VPN Gateway 8300 can result in substandard or even non-existent cellular service. You can check the signal strength at site of install by pressing the “reset” button on the back while powered on with the Cellular USB modem inserted.

  • Page 18: Administrator Access

    Administrator Access One or more users may be designated as administrators by your IS Department. If your AT&T VPN Gateway 8300 was Figure 13 set up for administrator access, is displayed and you must select your authentication level. You must be a designated administrator to configure or control the AT&T VPN Gateway 8300.

  • Page 19: Establishing Vpn Connectivity

    Establishing VPN Connectivity The authentication mode of your AT&T VPN Gateway 8300 is determined by the service parameters ordered by your IS Department. All configurations require a username and password of some form and may also require other information. This information may be downloaded from the network and the AT&T VPN Gateway 8300 may be set to automatically establish connectivity.
  • Page 20 Figure 14: Example of Login Page for AT&T Managed Figure 15: Example of Connected Page...

  • Page 21: Lan Port Configuration

    You can view the VLAN configuration through the AT&T VPN Gateway 8300 web interface as described below. After initial power on, and once the Internet Connection has been correctly configured, the AT&T VPN Gateway 8300 will retrieve its configuration from the network and will likely perform an automatic reboot to pick up the new configuration. This should occur within the first 2-3 minutes after initial power on.
  • Page 22 Figure 16: Navigation to Local LAN Settings Figure 17: Local LAN Settings – VLANS...
  • Page 23 Figure 18: VLAN DHCP Settings...

  • Page 24: Hub Mode

    . In this case, Local LAN equipment can be plugged into any available port on the back of the AT&T VPN Gateway 8300. If you see this page and you think that VLANs SHOULD have been configured, please contact your IS department.
  • Page 25 #520129-0...
