Summary of Contents for Aiworth L92V
- Page 1 User manual Please read this manual before using it.
-
Page 2: Table Of Contents
Catalog 1 、Product appearance....3 2 、Basic setting......6 1）.Power on/off....... 6 2）.Playback......6 3）.Record/save recording..7 3、Recording setting...... 8 1）.Recording source setting..8 2）.Recording sensitivity..8 3）.Record format....9 4）.Auto Record....10 5）.Segmented recording..12 6 ） .Voice activated recording setting........12 7）.Monitor setting....13 8）.Set the recording scene14... - Page 3 9）.Recording light....15 4、 Playback setting....15 1）.Repeat mode....15 2）.Equalizer......16 3）.Variable speed play..16 4）.Bookmarks...... 17 5）.Repeat settings....18 5、System setting......19 1）.Backlight time....19 2）. Date and time....20 3）. Timed shutdown....21 4）. Tools........22 5）. Information.....23 6）.Format device....24 6、Delete files....... 25 7、Removable device (upload/down)26...
- Page 4 8、Power management....27 9、Troubleshooting.......28 10、Technical specifications..30...
- Page 5 Precautions Do not allow children to play the unit alone. Do not drop and rub against hard objects. Otherwise, the machine data may be lost or other hardware may be damaged. It is not recommended to use the headphones continuously at a large volume. Please adjust the volume to the appropriate volume and control the usage time to avoid hearing loss.
- Page 6 responsible for it.。 It is forbidden to use the overload power supply, bend it hard or squeeze the power cord with heavy objects to avoid the fire caused by heat. Do not pull the power supply with wet hands to prevent electric shock。...
-

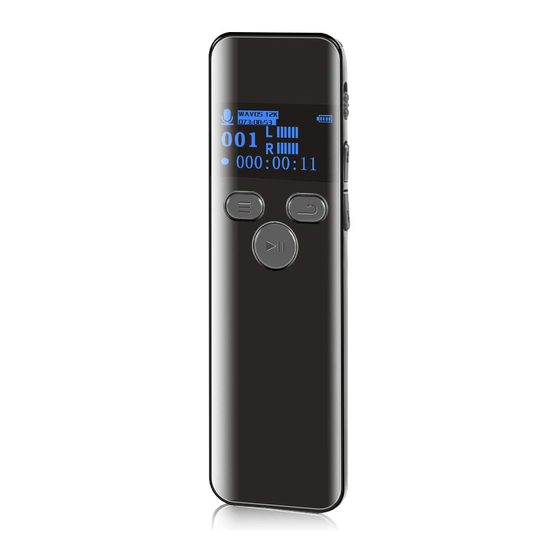

Page 7: Product Appearance
1 、Product appearance Function definition： Recording button ： One-click recording, save... - Page 8 recording Previous ：Short press to switch to the previous track, long press to rewind while playing Next ： Short press to switch to the next track, long press to fast forward while playing M button ： Long press to enter the setting menu, short-press standby mode to switch music files or recording files, play status short press A-B interval repeat...
- Page 9 download files 8 “+”：Volume up 9 “—”：Volume down, 10 Horn hole: playing the sound through the speaker 11 Headphone jack: Connect the headphone cable 12 Screen 13 Microphone 14 Microphone...
-
Page 10: Basic Setting
2 、Basic setting 1）.Power on/off 1.When the machine is off，long press“ ”to power on。 2.When the machine is on，long press“ ”to power off。 3.The machine will automatically shut down after 2 minutes without any operation.。 2）.Playback Music mode ： Switch to music mode by pressing the “M”... -
Page 11: 3）.Record/Save Recording
the “M” button after turning the phone on ，press“ ”to play recording files。 3）.Record/save recording In the power-on state, push the “recording button” up, the machine enters the recording state, push down the “recording button” to save the recording file, short press the “” button to pause or play the recording file.。... -
Page 12: 3、Recording Setting
3、Recording setting 1）.Recording source setting In standby mode, press and hold the “M” key to enter the main menu. ， press“ ” 、 “ ”to choice“Record setting”，press“ ”to enter，press“”button to back。 short press“ ” 、 “ ”choose“Record from” ， short press“... -
Page 13: 3）.Record Format
short press“ ”button to enter ， short press“ ” 、 “ ”choose“Low,middle,high”，short press“ ”button to confirm，short press“Back”button to back，After that, the recording sensitivity will be recorded according to the recording sensitivity you set.。 Note: The higher the recording sensitivity level, the louder the recording background sound. -
Page 14: 4）.Auto Record
2.short press“ ”、“ ”choose“Set rec bitrate”，short press“ ”button to enter ， 当 choose“WAV Rec” 256kbps/512kbps/1536kbps /“MP3Rec” （ ） （ 32kbps/128kbps/192kbps ） short press“ ”button to confirm，short press“Back”button to back，After that, the recording file will be recorded according to the recording bit rate you set. - Page 15 press“ ”button to enter ， short press“ ” 、 “ ”choose“Once/Daily” ， short press“ ”button to confirm，short press“Back”button to back。 ③short press“ ” 、 “ ”choose“Start time” ， short press“ ”button to enter ， short press“+”/“—” adjust number，short press“ ”、“ ”...
-
Page 16: 5）.Segmented Recording
5）.Segmented recording 1.short press“ ”、“ ”choose“Subsection record”， short press“ ”button to enter ， The segmented recording of this unit can be set to off or on, respectively: 30 minutes, 60 minutes, 120 minutes. If the segment recording is on, the recording file will be automatically saved according to the set length of time during recording. -
Page 17: 7）.Monitor Setting
short press“ ”button to confirm 。 （ The higher the sensitivity level, the higher the sensitivity, the louder the recording sound is.）short press“Back”button to back， After recording, the recording will be based on the mode you set. (Tips: When the “Sound Control Mode” is turned on, the machine will automatically sense the surrounding sound in the recording state. -
Page 18: 8）.Set The Recording Scene14
“ ”choose，“On/Off”short press“ ”button to confirm， short press“Back”button to back.Turn on the monitor function,Plug in the headphones to listen to what is being recorded 8）.Set the recording scene 1.short press“ ” 、 “ ” ， choose“Set recording scene”(Turn on/off noise reduction recording ） ， short press“... -
Page 19: 9）.Recording Light
9）.Recording light 1.short press“ ”、 “ ”， choose“Recording lamp set”， short press“ ”button to enter ， short press“ ” 、 “ ”choose“On/off”，short press“ ”button to confirm， short press“Back”button to back，When choose“Off”,the light is off when recording;when choose“on”,the light is on when recording 4、... -
Page 20: 2）.Equalizer
random play”short press“ ”to confirm ， short press“Back”button to back ， The playback file will play according to your settings playback mode. 2）.Equalizer short press“ ”、“ ”choose“Equalizer”，short press“ ”button to enter ， short press“ ” 、 “ ”choose“Normal / Rock / Funk / Hip Hop / Jazz / Classic / Electronic Music"，short press“... -
Page 21: 4）.Bookmarks
to the playback speed of your settings.。 Only support：WAV MP3format files 4）.Bookmarks 1.Add bookmarks In the playback state， long press“M”button to enter， short press“ ” 、 “ ”choose“Bookmarks” ， short press“ ”button to enter ， short press“ ” 、 “ ”choose“add bookmarks”、short press“M”button to confirm. -
Page 22: 5）.Repeat Settings
3.Delete bookmarks In the playback state， long press“M”button to enter， short press“ ” 、 “ ”choose“Bookmarks” ， short press“ ”button to enter ， short press“ ” 、 “ ”choose“Delete bookmarks”short press“ ” 、 “ ”select bookmark and delete。 Note: You can only add up to 10 bookmarks per recording file. -
Page 23: 5、System Setting
In the playback state ， long press“M”button to enter，short press“ ”、“ ”choose“Replay times” short press“ ”enter ，press“+/-”buttonadjust 0-10 reply time。short press“ ”to confirm。 3.In the playback state ， long press“M”button to enter，short press“ ”、“ ”choose“Replay interval” short press“ ”enter ， press“+/-”buttonadjust0-10reply interval short... -
Page 24: 2）. Date And Time
press“ ”、“ ”choose“10 seconds / 20 seconds / 30 seconds / always light”short press“ ”button to enter， short press“Back”button to back。 2）. Date and time In standby mode，long press“M”button to enter system setting， short press“ ”、 “ ” choose“Time”， “Date”。 1.Time setting .short press“... -
Page 25: 3）. Timed Shutdown
press“+”/“—” adjust number，short press“ ”、 “ ” adjust position，short press“ ”to confirm， short press“Back”button to back。 3）. Timed shutdown In standby mode ， long press“M”button to enter system setting，short press“ ”、“ ” choose“Timed shutdown” ， short press“ ”button to enter ， short press“+”/“—”adjust number ，... -
Page 26: 4）. Tools
体中文/繁体中文/English..”(Up to 30 languages）， short press“ ”to confirm， short press“Back”button to back，The system language will now display the menu according to your system setting language. 4）. Tools In standby mode ， long press“M”button enter main menu，short press“ ”、“ ” choose“Tools”，short press“... -
Page 27: 5）. Information
press“Back”button to back。 ②short press“ ”、“ ”choose“password setting”， short press“ ”enter ， short press“+”/“—”adjust the number，short press“ ”、“ ”adjust the position， short press“ ”to confirm， short press“Back”button to back。Original password“0000”。 Tips: After turning on this function, you need to enter the password to use the machine each time you turn on the computer. -
Page 28: 6）.Format Device
6）.Format device short press“ ” 、 “ ”choose“Format device”，short press“ ”button to enter，short press“ ” 、 “ ”choose“Yes/No”short press“ ”button to confirm。 Note: Please backup the data in the recorder in advance, and delete all files in the recorder after formatting.。... -
Page 29: 6、Delete Files
press“ ”button to confirm。 6、Delete files In the standby mode, long press the "Back" button to enter the "Delete Files" menu. ， short press“ ”enter submenu，short press“Back”to back。 1.short press“ ” 、 “choose“Delete files”， short press“ ”button to enter ， short press“ ”... -
Page 30: 7、Removable Device (Upload/Down)26
Removable device 、 (upload/down) 1.In addition to the upgrade, in any case, insert the machine into the USB port of the PC, the system will immediately interrupt the current operation, connect to the PC, and the removable system will appear in the operating system. - Page 31 8、Power management （一）This unit is powered by the built-in lithium battery; when the battery indicator is displayed as “ ” ， please charge it in time。 （ 二 ） Please use the data cable that comes with the product to connect to the USB interface of the computer for charging.
- Page 32 2 ） The battery symbol is scrolling to indicate that it is charging。 3） The battery symbol does not move when the battery is fully charged。 9、Troubleshooting Q:Why is the display storage capacity on the operating system inconsistent with the nominal value? A ：...
- Page 33 operating system will be less than the nominal value. Q:Why are some songs that cannot be played locally? A：The audio format is incorrect. Please download the audio format that matches this unit.。 Q:Why is this product slower? A： Because of the long-term use or frequent file deletion, the internal flash memory may be fragmented (similar to the fragmentation of the hard disk), resulting in slower speed.
- Page 34 10、Technical specifications Dimensions 95mm×29mm×8mm Display screen Size: 0.96 inch true OLED display / resolution: 128 * 64 Disk capacity 16GB Single net weight 35g (please refer to the actual product) Recording format WAV /MP3 Recording method MIC recording MP3、WMA、FLAC、APE、OGG Music format Interface type USB2.0 Operating...
- Page 35 Recording Recording Recording storage time storage time quality (8GB) (16GB) 1536kbps 12hours 24hours 512kbps 36hours 72hours 256kbps 72hours 114hours 192kbps 97hours 194hours 128kbps 143hours 286hours 32kbps 569hours 1138hours...
