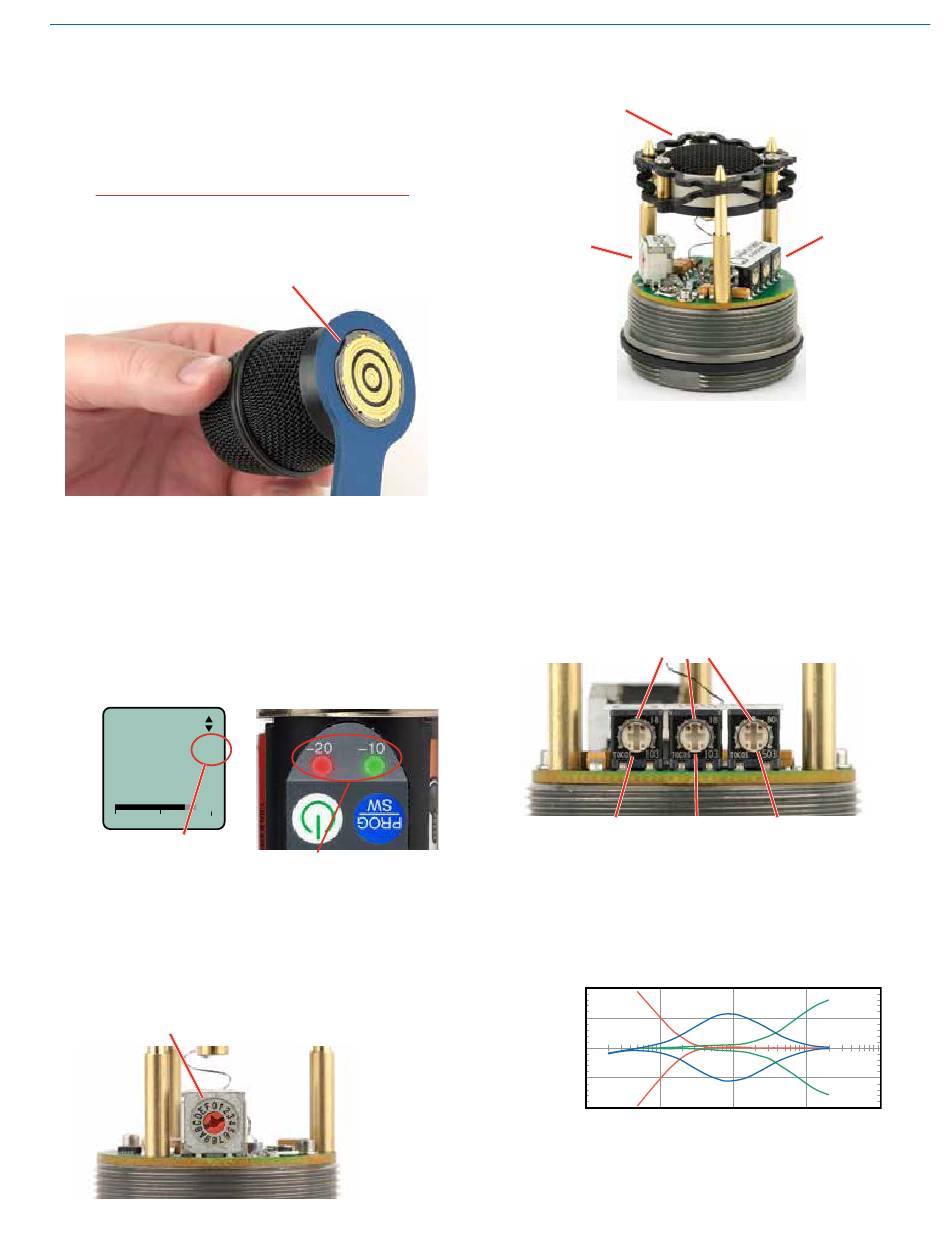

Mic Capsule Adjustments

(EXPERT LEVEL ADJUSTMENT)

These adjustments significantly alter the gain and
tonal quality of the microphone, and are to be used
only in special circumstances.
Caution: Always make the final decision about
sound quality with the windscreen in place.
Remove the windscreen using the supplied wrench.
Align flats on the wrench with flats on the capsule.
Attenuator Adjustment
The HHC & HHVMC heads include an attenuator in
the preamp circuitry to provide an additional 15 dB of
headroom when needed for extremely loud voices.
The attenuator should ONLY be used when the gain
control is already turned all the way down and the
audio is still driving the preamp into significant limiting
where both -20 and -10 dB LEDs stay lit all or most of
the time during peaks in the audio.
Gain
0
-40 -20 0
Gain set to
minimum (0) on
the LCD.
The attenuator control is a 16 position switch that
attenuates the audio in 1 dB steps. It is marked 0
through F where F is minimum attenuation and 0 is
maximum attenuation. Rotating it clockwise increases
the loudness, and counter clockwise decreases the
loudness.
Attenuator switch set at F for normal operation.
Rio Rancho, NM
LEDs on control panel
Wideband Hand Held Transmitter
Resonance tuned
suspension
Attenuator
control
IMPORTANT: Be sure to set the attenuator control back
to its original setting ("F") for normal operation. or a
subsequent user may think the unit is malfunctioning or
has a poor signal to noise ratio.
LO/MID/HI (bass/mid/treble) - HHVMC only
The HHVMC head includes VariMic
adjustments to boost or cut the frequency response in
LOW, MID and HIGH ranges. The LOW and HIGH con-
trols will boost/cut by up to 8 dB while the MID control
will boost/cut up to 6 dB.
The pointer is between the
darkened dots.
LOW
The controls are set to "zero"
(no boost or cut) in this photo
These controls operate as standard tone controls in
that a counterclockwise adjustment cuts the response
in that band and a clockwise adjustment boosts the
response.
VariMic Tone Control Range
+10
Boost
Bass
+5
0dB
-5
Bass
Cut
-10
10Hz 100Hz
HHVMC capsule
EQ controls
(HHVMC only)
equalization
TM
MID HIGH
Treble
Midrange
Midrange
Treble
10KHz
1KHz
