Programmable Switch
Functions
NOTE: The Power and Cough functions were
added starting with serial number 1001.

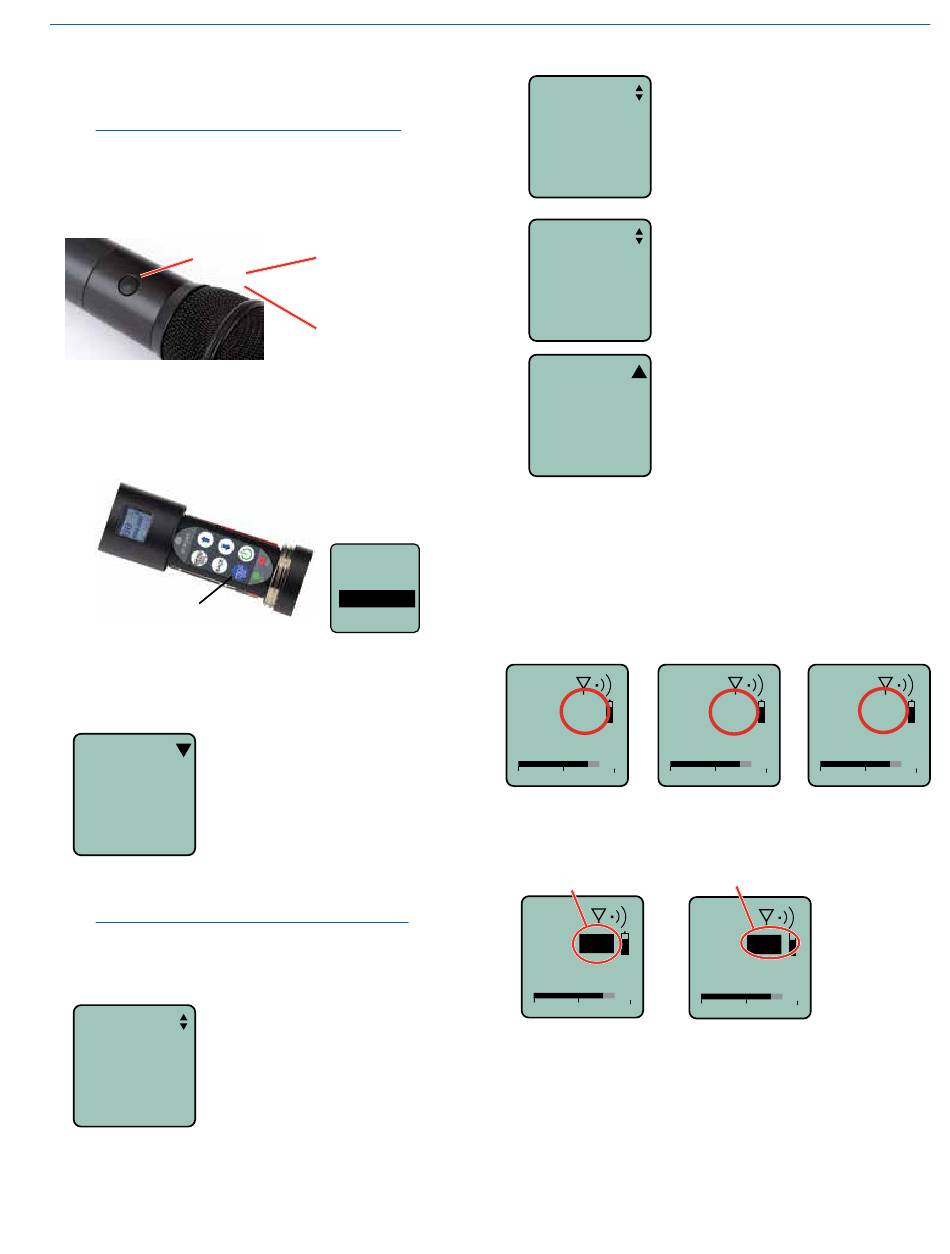

A special button (the Side Button) on the outside of
the housing can be configured to provide several differ-
ent functions, or to be inoperative.
Side Button
The ProgSw on the control panel opens a setup
screen to set the Side Button function. Enter this
setup screen and then use the UP/DOWN arrows to
select the desired function, then press the MENU/SEL
button to return to the Main Window.
Side Button
Setup Switch
The ProgSw menu provides a scrollable list of the
available functions. Use the UP and DOWN arrows
to highlight the desired function and press BACK or
MENU/SEL to select it and return to the main menu.
TalkBk (talkback) is a "push to talk"
ProgSw
function that is active only while the
button is pressed. The talkback
TalkBk
function provides a communication
channel when used with a receiver
equipped with this function. When
pressed and held in, the side button
re-directs the audio output to a different audio channel
on the receiver. As soon as the switch is released,
audio is returned to the program channel.
NOTE: The Talkback function is only available
in the Digital Hybrid compatibility mode. An error
message will appear if Talkback is selected while
in another mode.
Power turns the power on and off.
ProgSw
Hold the button in until the count-
down sequence from 3 to 1 is
completed. The power will then be
Power
turned off.
(additional information on page 8)
Rio Rancho, NM
Functions:
• TalkBack
• Power
• Cough
• Mute
• (none)
Press the
Programmable Switch
or select ProgSw on
the main menu.
Gain
Freq.
ProgSw
Rolloff
Wideband Hand Held Transmitter
Cough is a momentary mute switch.
ProgSw
Audio is muted while the button is
held in.
Cough
Mute is a "push on/push" off func-
ProgSw
tion that toggles on and off each
time the Side Button is pressed. The
mute function defeats the audio in
Mute
the transmitter, so it works in all
compatibility modes and with all
receivers.
(none) disables the switch.
ProgSw
(none)
For detailed information on setting up the Talkback
function and the Venue receiver, refer to the Installa-
tion Guide for the Venue Wideband Receiver.
Main Window Displays for Mute and
Talkback Functions
The function of the Side Button is displayed in the
LCD Main Window.
5 5
A A
950.500 950.500
-40 -40
-20 0
None/Power Talkback
When the Side Button is pressed, the function will be
active and the LCD will display an indication.
Reverse video
Reverse video
5
A
TB
950.500
-40 -20 0
Talkback active
5
A
TB
MUTE
623.400
-40
-20 0 -20
Mute/Cough
5
A
TB
950.500
-40 -20 0
Mute active
(MUTE blinks)
0
11
