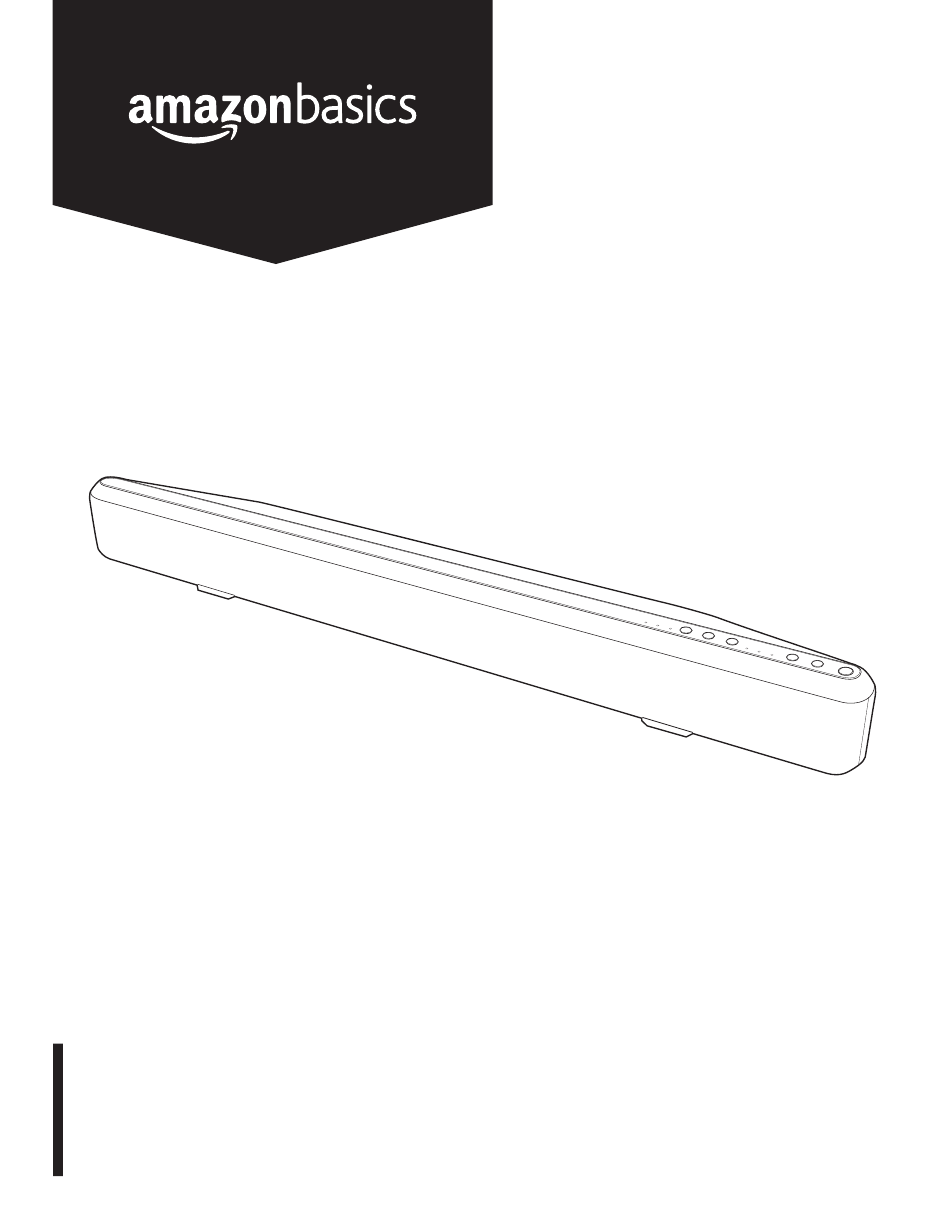

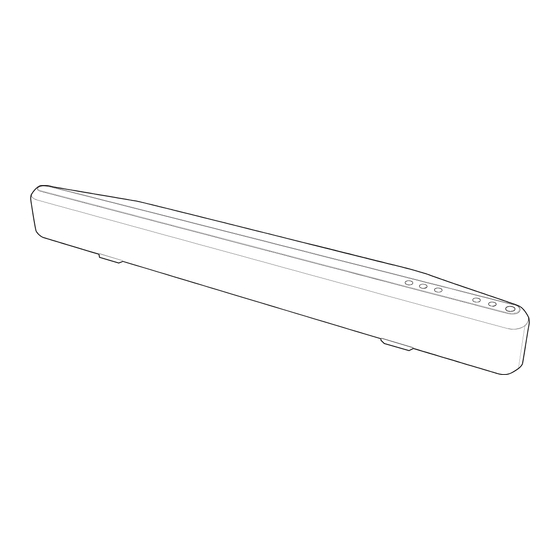

- Page 1 Bluetooth Sound Bar with Built-In Subwoofer Barra de Sonido Bluetooth con Subwoofer Incorporado Barre Audio Bluetooth avec Caisson de Basse Intégré B01JFER19Y...
- Page 2 English ........3 Español ........21 Français ......... 39...
- Page 3 Welcome Guide • English Contents: Before getting started, ensure the package contains the following components: Bluetooth Sound Bar with Built-in Subwoofer (SB210) Remote Control with two AAA batteries AC power adapter and cord AUX 3.5 mm audio cable RCA audio cable Optical audio cable Wall mount brackets and x2 each...
-
Page 4: Sound Bar
Diagram Sound Bar DSP sound mode Volume down Standard indicator RCA indicator button button Volume up News indicator button Bluetooth button AUX indicator Audio source Movie indicator OPT indicator button Power button (Top view of sound bar) Bluetooth indicator (Front view of sound bar) - Page 5 Diagram Sound Bar OPTICAL IN audio port AUX IN port RCA IN L/R port DC IN port RCA IN AUX IN OPTICAL IN Threaded inserts for mounting screws (Back view of sound bar)
-
Page 6: Important Safety Instructions
Important Safety Instructions • Read these instructions and follow all safety instructions. • Keep these instructions. • Heed all warnings. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. •... - Page 7 • This appliance is classified as protection class I and shall be connected to a MAINS socket outlet with a protective earthing connection. • Regularly check the power plug and power cord for damage. If the supply cord is damaged, the adapter cannot be used and needs to be replaced.
-
Page 8: Battery Safety Instructions
Battery Safety Instructions • Do not expose batteries to extreme temperatures, such as, direct sunlight or fire. • Do not place the remote control on any heat source. Leaking battery acid may cause harm. • Always insert batteries correctly with regard to the polarities (+ and –) marked on the battery and the battery compartment. -
Page 9: Setup Instructions
Setup Instructions Remote Control • Slide the battery compartment cover to open. • Insert two 1.5 V AAA batteries according to the polarity markings in the battery compartment. • Close the battery compartment cover. • Point the remote control directly at the IR sensor on the front of the sound bar at a distance less than 23 feet (7 m). - Page 10 Setup Instructions Remote Control Command Guide BUTTON COMMAND Press to turn on the sound bar. Press again to put the sound POWER bar in standby mode. MUTE Press to mute and unmute. VOLUME + Press to increase volume. VOLUME — Press to decrease volume.
- Page 11 Setup Instructions Wall Mounting the Sound Bar NOTICE Wall mounting requires four suitable wall plugs and four screws. These are not included. 1. Use the supplied mounting template to mark the mounting position on the wall. Mark the four screw holes on the wall. 2.
- Page 12 5. Fasten the two supplied screws to the back of the sound bar. 6. The screw head should extend outward from the back of the sound bar by at least 1/4” (5 mm). 1/4” (5 mm) 7. To hang the sound bar on the mounting brackets, fit the screw heads into the mounting bracket slots and slide the sound bar down to secure it.
- Page 13 Setup Instructions Connecting the Sound Bar Connecting the sound bar using external devices • Locate the audio out ports on the back of the external device (such as a TV, DVD, laptop or other suitable devices), which will be connected to the sound bar. Choose a connection option on the device.
- Page 14 RCA IN connection • Insert one end of RCA audio cable into the RCA IN port on the sound bar. • Insert the other end into the RCA audio out port on external device. AUX IN RCA IN OPTICAL IN 3.5 mm AUX IN connection •...
- Page 15 • On the Bluetooth device, select “Amazonbasics210” from the Bluetooth menu. Repeat step 2 if “Amazonbasics210” is not displayed. • If a PIN code is requested, enter “0000”. • When paring is completed, the Bluetooth indicator light on the sound bar will display solid blue. name: Name: “BSK20” “Amazonbasics-210”...
-
Page 16: Connecting The Sound Bar
Setup Instructions Connecting the Sound Bar Disconnecting Bluetooth devices • Turn off the Bluetooth function on the paired device. Reconnecting to a paired device When the sound bar is not paired to a device, the Bluetooth indicator light turns off. •... -
Page 17: Troubleshooting
Troubleshooting The sound bar has no power • Press the power button on the remote control or at the top of Sound Bar. • Make sure the power cord is securely connected. • Plug a different device into the electrical outlet to verify that the outlet is working correctly. The remote control does not work •... -
Page 18: Fcc - Supplier's Declaration Of Conformity
FCC – Supplier’s Declaration of Conformity Unique Identifier B01JFER19Y Bluetooth Sound Bar with Built-In Subwoofer Responsible Party - U.S. Amazon.com Services, Inc Contact Information Address 410 Terry Ave N. Seattle, WA 98109, United States Telephone Number (206) 266-1000 FCC Compliance Statement 1. -
Page 19: Cleaning And Maintenance
Canada IC Notice • This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. -
Page 20: Warranty Information
Warranty Information To obtain a copy of the warranty for this product: Visit amazon.com/AmazonBasics/Warranty Contact Customer Service at 1-866-216-1072... - Page 21 MADE IN CHINA HECHO EN CHINA FABRIQUÉ EN CHINE...
