STEELSPAN STORAGE SYSTEM Module 10 Instructions Manual page 2

It is important to ensure you position the Garage Storage System on a level floor
surface.
Important Safety Notice:
Steelspan is committed to the upmost safety of its Storage Systems and includes all
components in its Pre-designed Modules to ensure cabinetry is securely locked into
place. All horizontal beams must be secured with the Locking Pins provided.
End Frame Assembly
Components:
End Frame:
• 2 x Upright
• 2 x Horizontal Stay
• 3 x Diagonal Stay
• 2 x Spacers
• 6 x Nuts & Bolts
• 4 x End Cap
Open End Frame:
• 1 x 2100 Upright
• 1 x 1000 Upright
• 2 x Horizontal Stay
• 1 x Diagonal Stay
• 2 x Spacers
• 4 x Nuts & Bolts
• 4 x End Cap

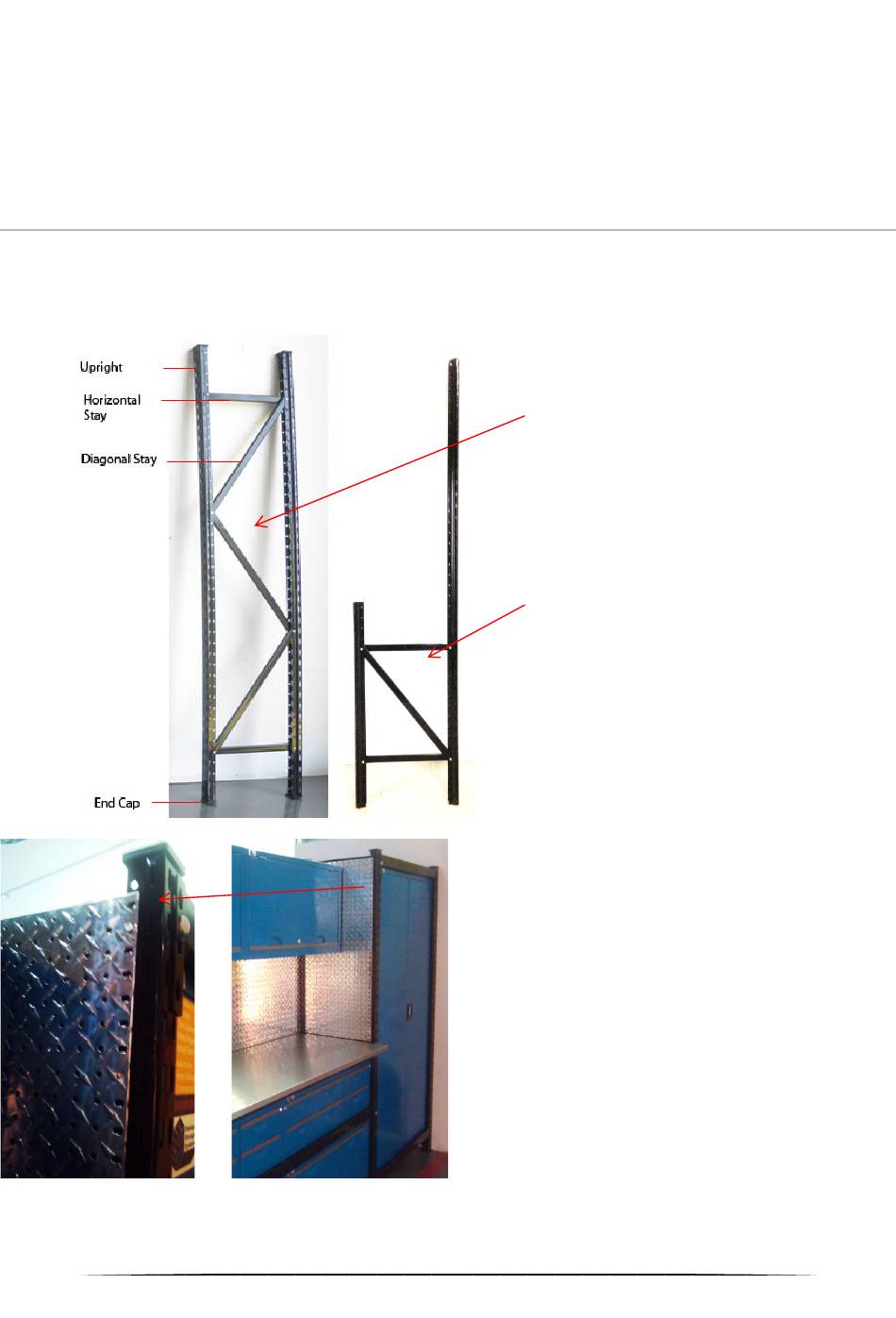

Directions:
1. Lay uprights parallel on a table or
bench.
2. Fix one Horizontal Stay to one
Upright at the 5th hole from the
end, using one Spacer.
3. Overlap the other end of this
Horizontal Stay with the end of a
Diagonal Stay on the adjacent
Upright.
4. Ensuring the Uprights are parallel
continue overlaping the ends of
the Diagonal Stays along the
Uprights and securing with the
nuts and bolts provided.
5. Fit the 2nd Horizontal Stay to the
other end of the Uprights (this
should be 5th hole from end of
Upright). Again, overlaping it
with the end of one Diagonal
Stay and using the Spacer on the
other end.
2
